mk1 golf R32 4WD

Discussion in 'Members Gallery' started by Joes, Feb 21, 2010.

  1. Joes Forum Member

    Joined:
    Apr 6, 2009
    Likes Received:
    8
    Location:
    Evesham
    hi all
    i have just completed a 20vt conversion into a mk2
    was a nice project thought it was about time to get myself
    into a drastic project i wanted something that was 4wd
    as the mk2 was a lot of fun but just would like more
    traction so thought 4wd would be a good project, but
    what car to put it in did not want to do a mk2 as
    i have got one and im a great fan of the older style
    cars so i suppose it had to be the mk1 golf. so i had

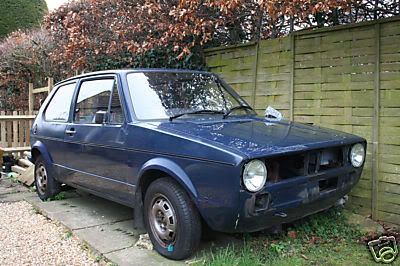

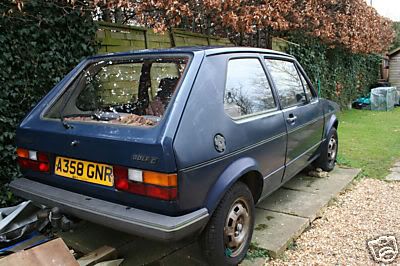

    a good look on ebay and managed to find one for
    about 400 complete ish lol,


    so now i started thinking what engine shall i put into
    it always been tempted with some sort of vr so i started
    looking around to see what vrs i could get then i luckily
    managed to find a mk5 golf r32 from an 08 plate only
    done about 20,000 miles which was nice, also come with
    ecu, engine loom and dsg gearbox

    A few pics of when i got the car
    [​IMG]

    [​IMG]

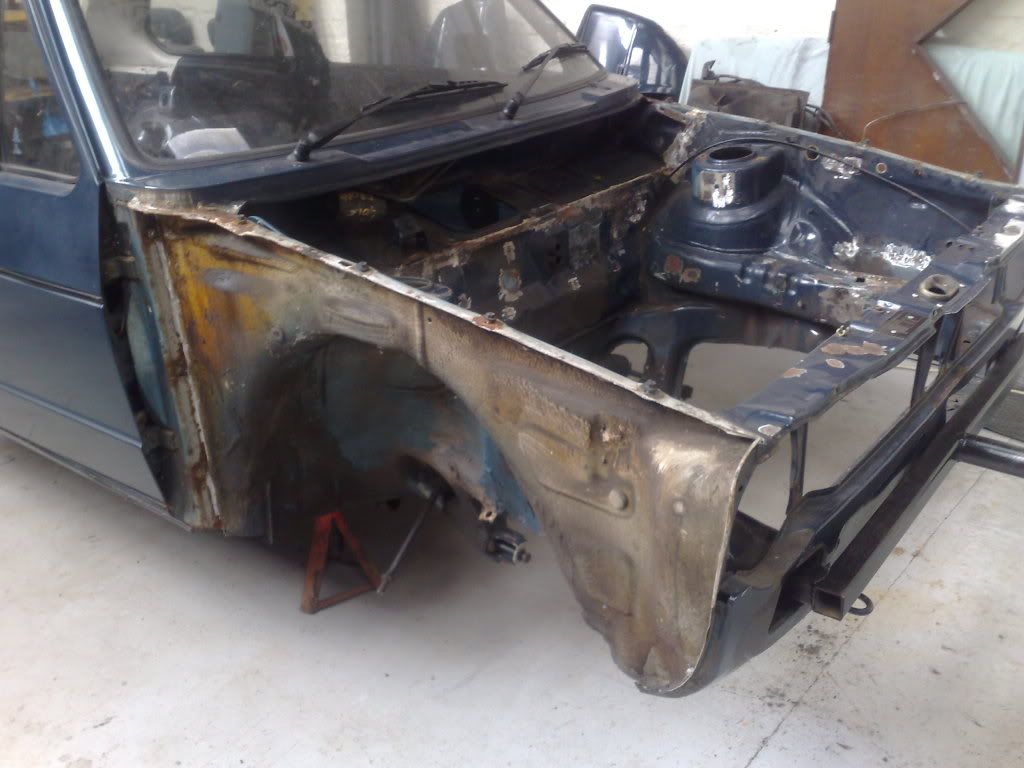

    right now for me to start stripping it
    [​IMG]
    [​IMG]

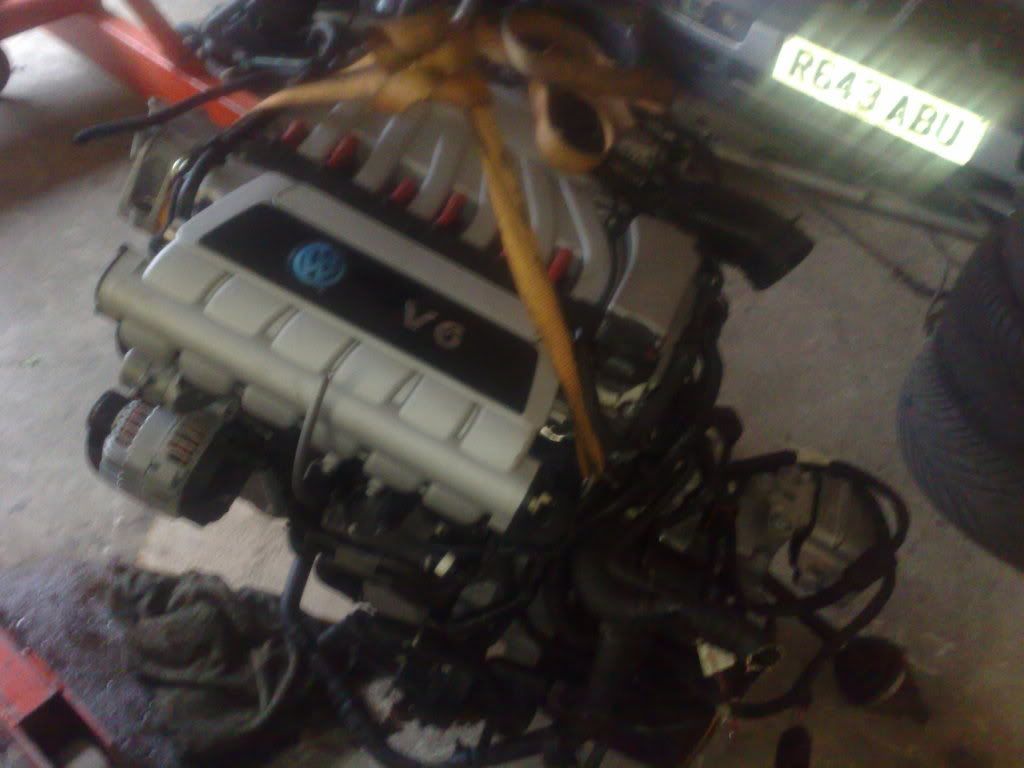

    engine arrived
    [​IMG]

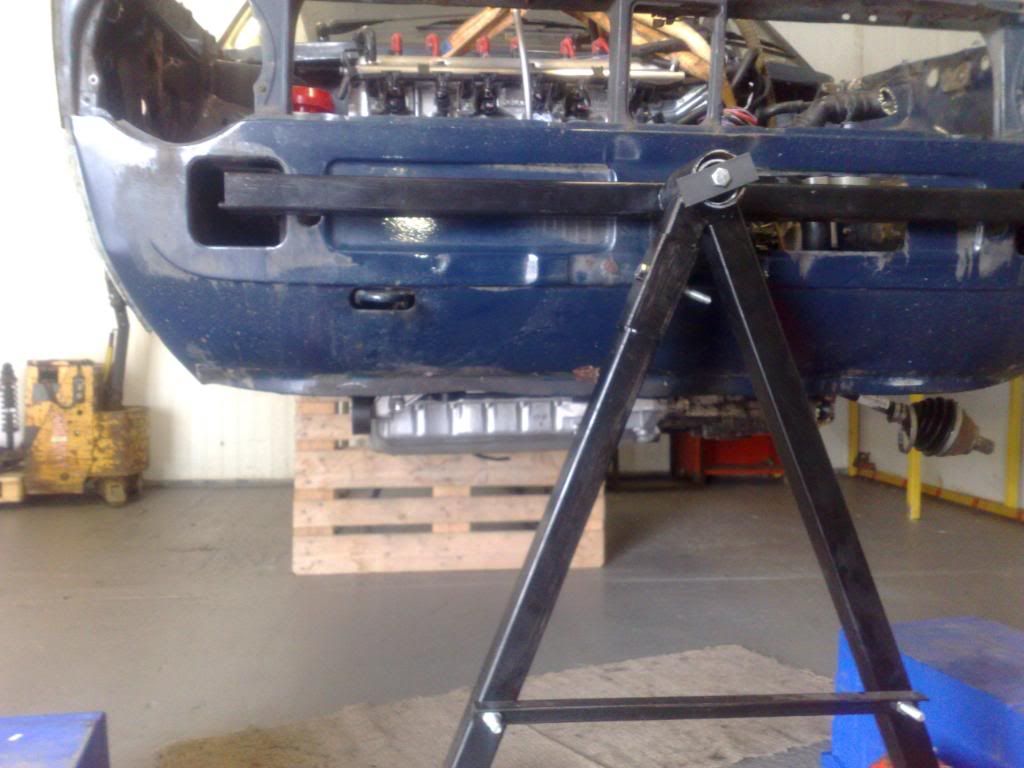

    brought a stand off ebay to get the car up in the air and to be able to get it upside down proves quite handy so far
    [​IMG]

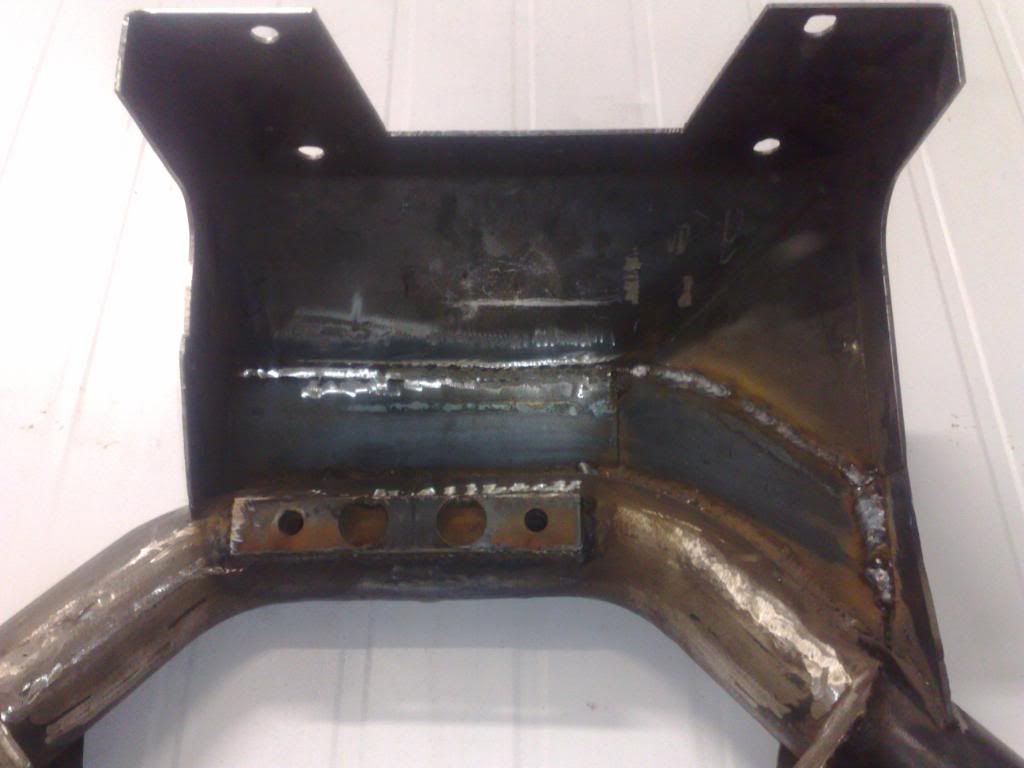

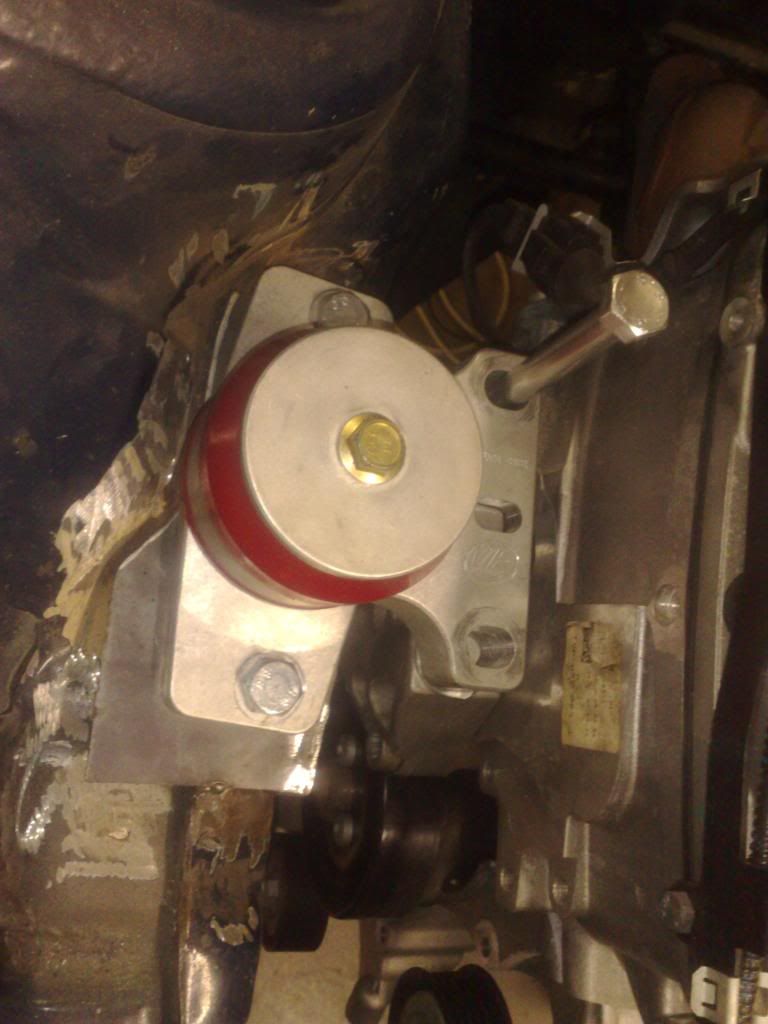

    ive cut off all the original engine mounts to make way for new ones

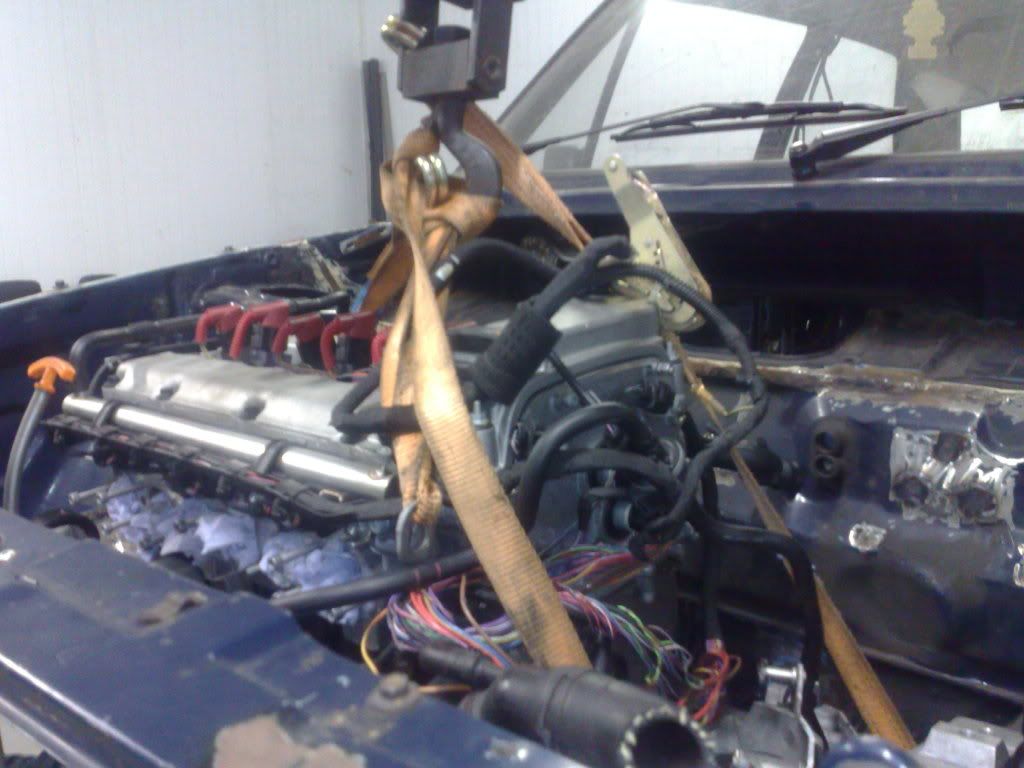

    slinging the engine in to see how it eyes up
    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]

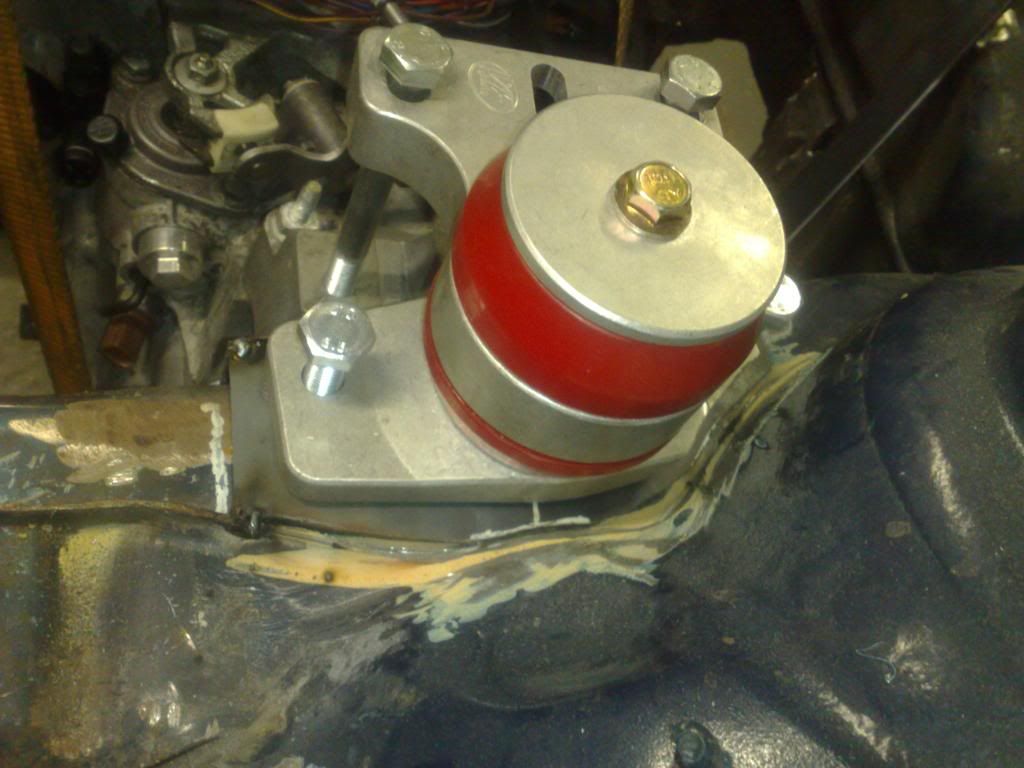

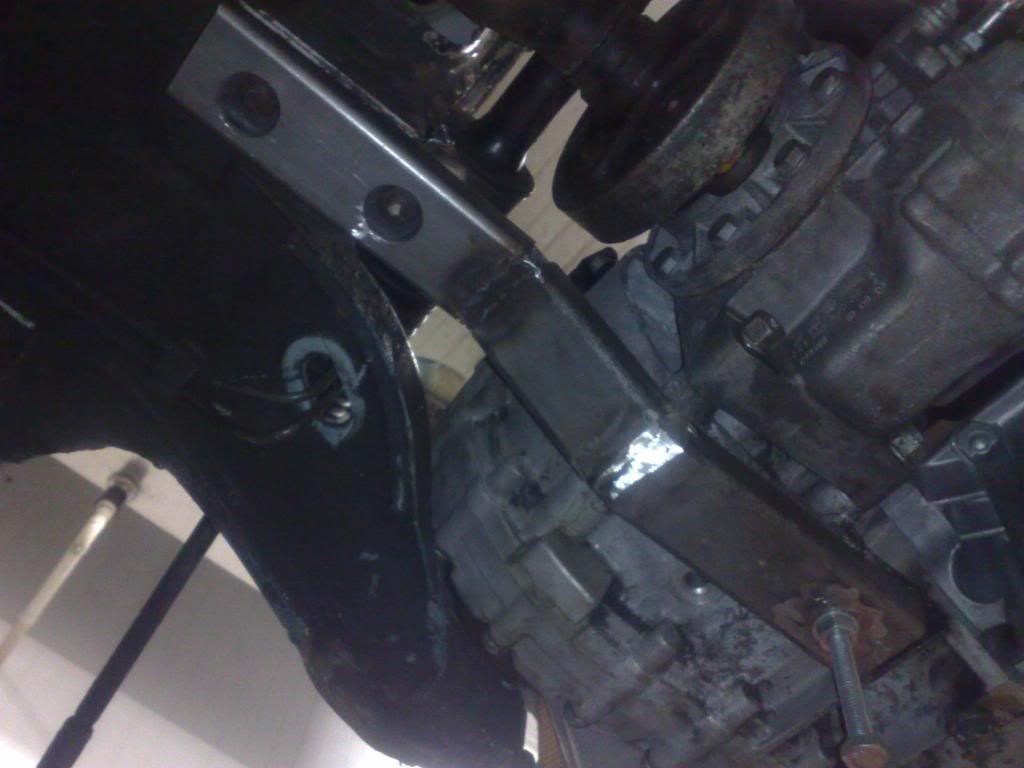

    had to carve a bit off this one to make it fit better
    [​IMG]

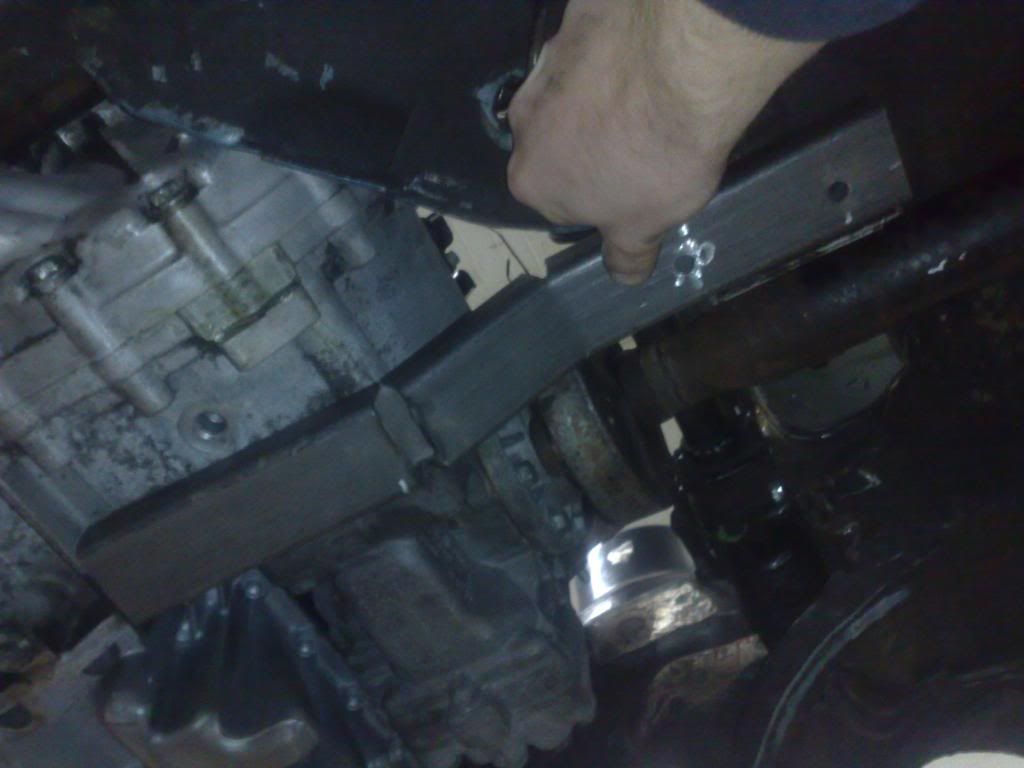

    i will have to make some spacers up sometime to go between the mounts and the gearbox/engine

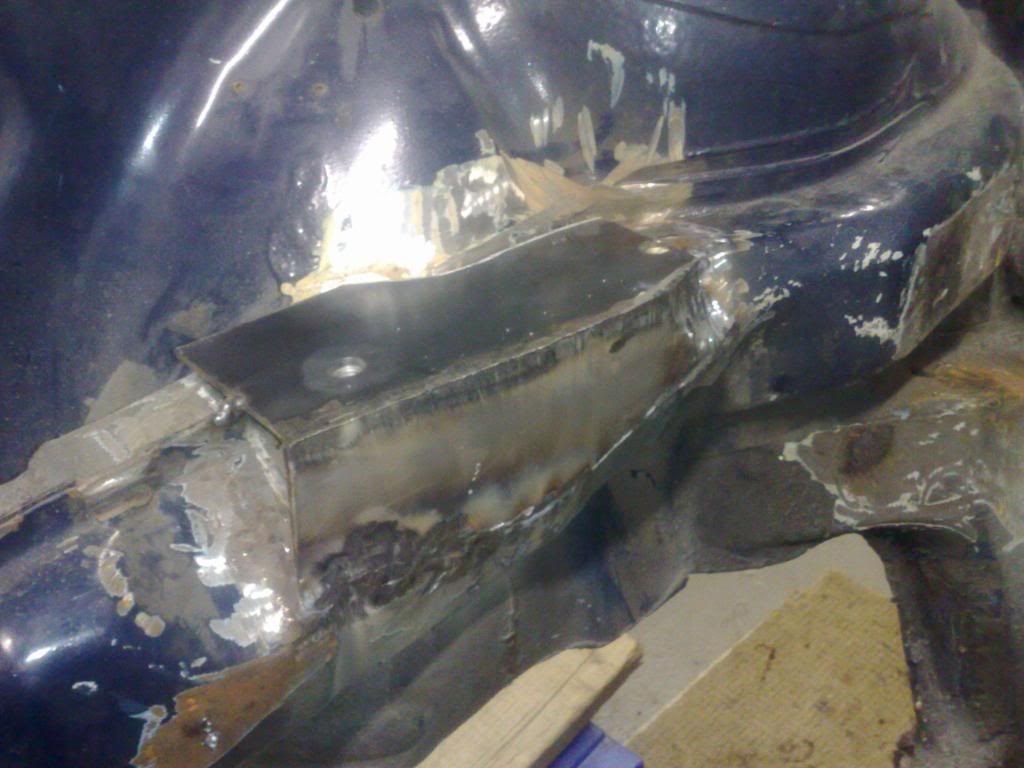

    now the mount under the car thought i would make this a solid one to stop any engine movement as i will not be using the rubber joint betweent he gearbox and the propshaft, as the mk2 shafts dont line up with the mk5 box
    [​IMG]
    [​IMG]
    [​IMG]

  2. Joes Forum Member

    Joined:
    Apr 6, 2009
    Likes Received:
    8
    Location:
    Evesham
    just some pics of how low the engine will probably have to sit, might be able to lift it a bit when everything is in

    [​IMG]
    [​IMG]

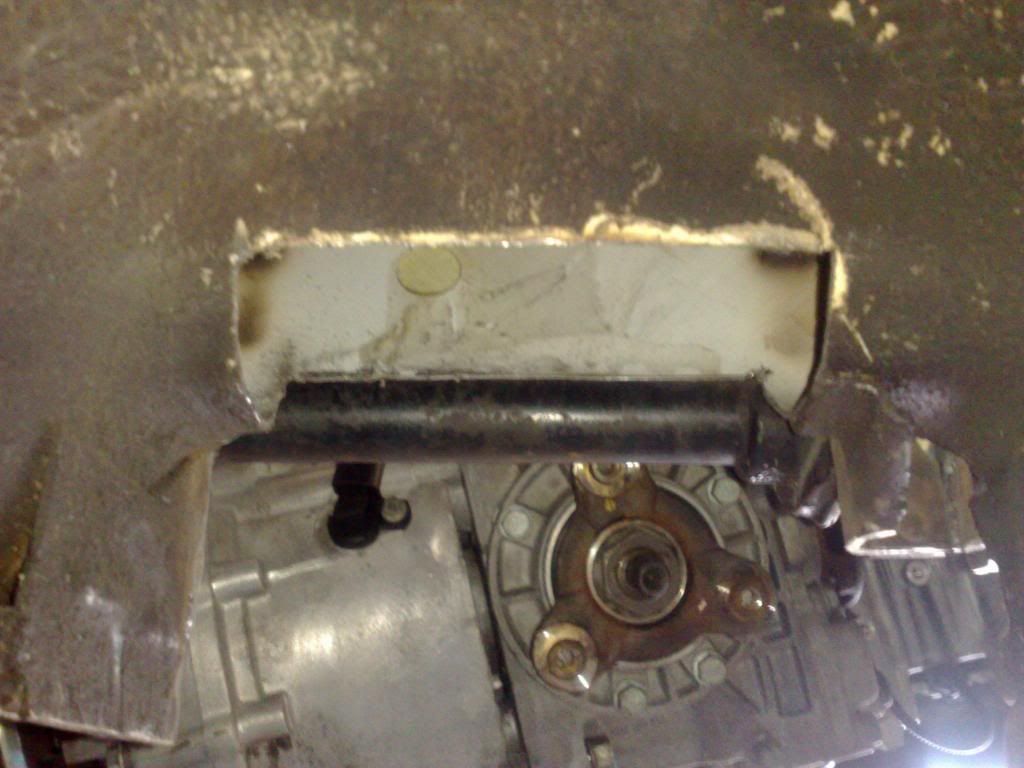

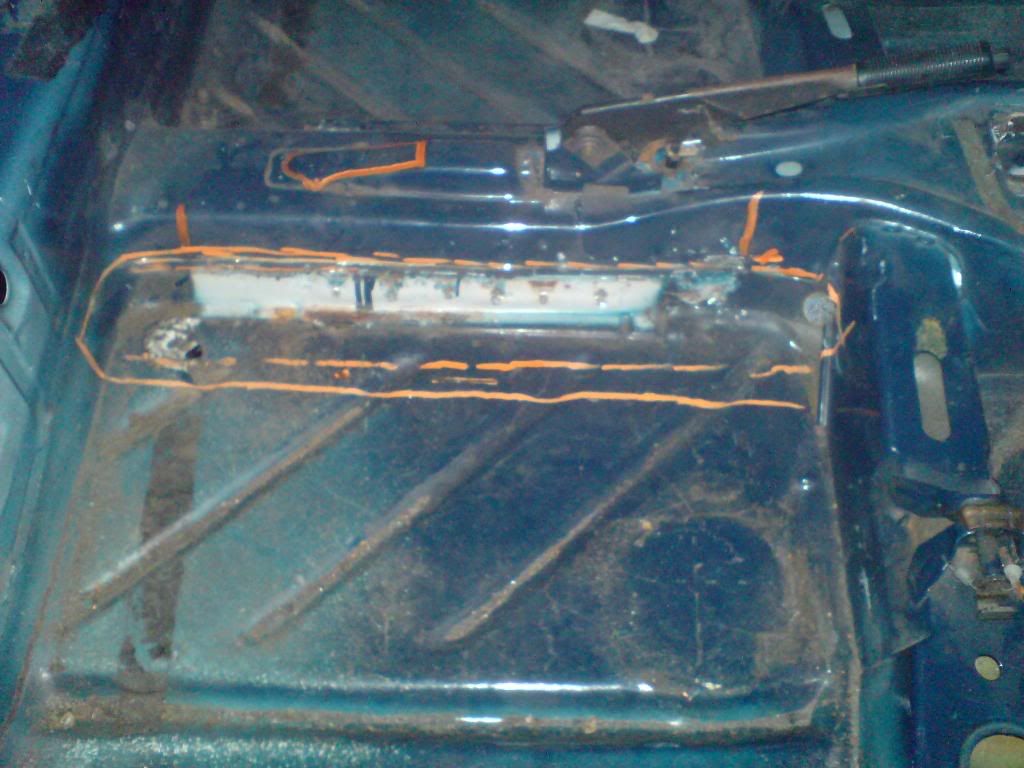

    having a bit of looking at the prop shaft there is a bit of a lump in the tunnel under the firewall whats gunna have to move and i have had to move the steering rack up a bit and instead of using nuts to hold the steering rack on i changhed it over for bolts because if i needed to remve it form the car at a later date i would have to move the engine out the way lol

    [​IMG]
    [​IMG]
    [​IMG]

  3. skoda4x4 Forum Member

    Joined:
    Aug 20, 2009
    Likes Received:
    0
    looks interesting !

  4. Sc0rian

    Sc0rian Forum Member

    Joined:
    Nov 16, 2004
    Likes Received:
    0
    Location:
    Suffolk
    my god. what a beast. amazing

  5. 2dubnick Forum Junkie

    Joined:
    Nov 22, 2006
    Likes Received:
    1
    Location:
    Worcester
    looking good, cant wait for more updates.

  6. theboymike Forum Junkie

    Joined:
    Sep 29, 2004
    Likes Received:
    1
    Location:
    England
    Good luck getting all that in there - that's going to be a proper weapon when it's finished [8D]

  7. Vento Mike Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    2
    Location:
    Exmouth
    Hopefully not another powernut!

    Doesn't look that way so far...keep up the good work and go easy on the welder where possible!

    Looking forward to more!

  8. Joes Forum Member

    Joined:
    Apr 6, 2009
    Likes Received:
    8
    Location:
    Evesham

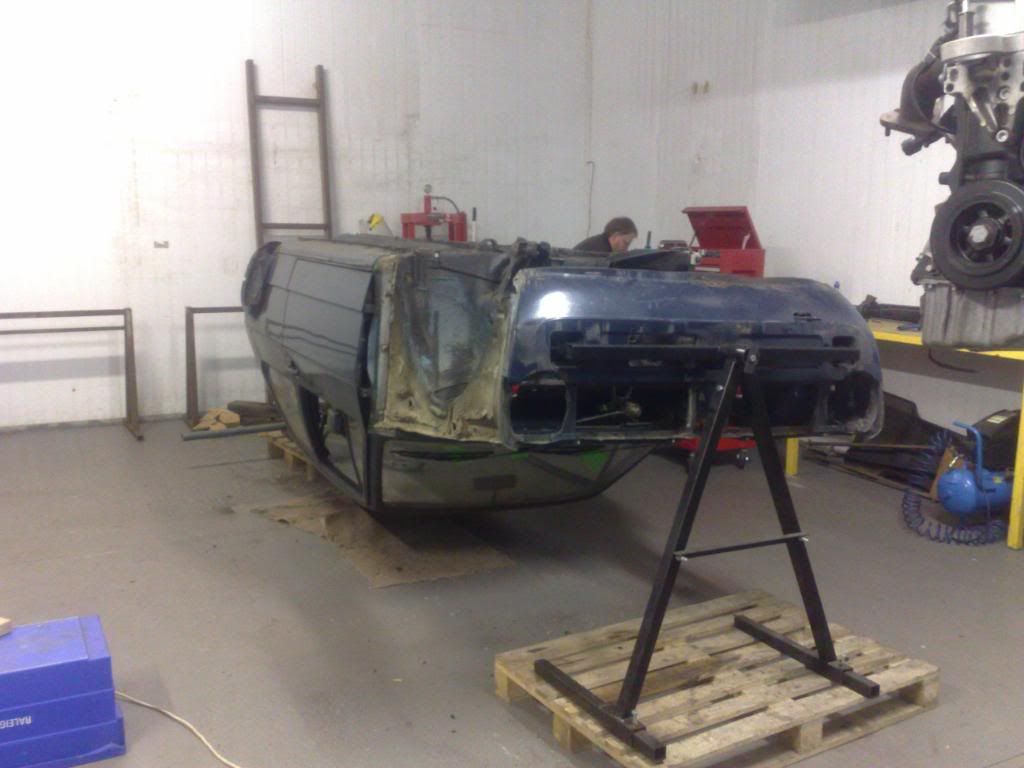

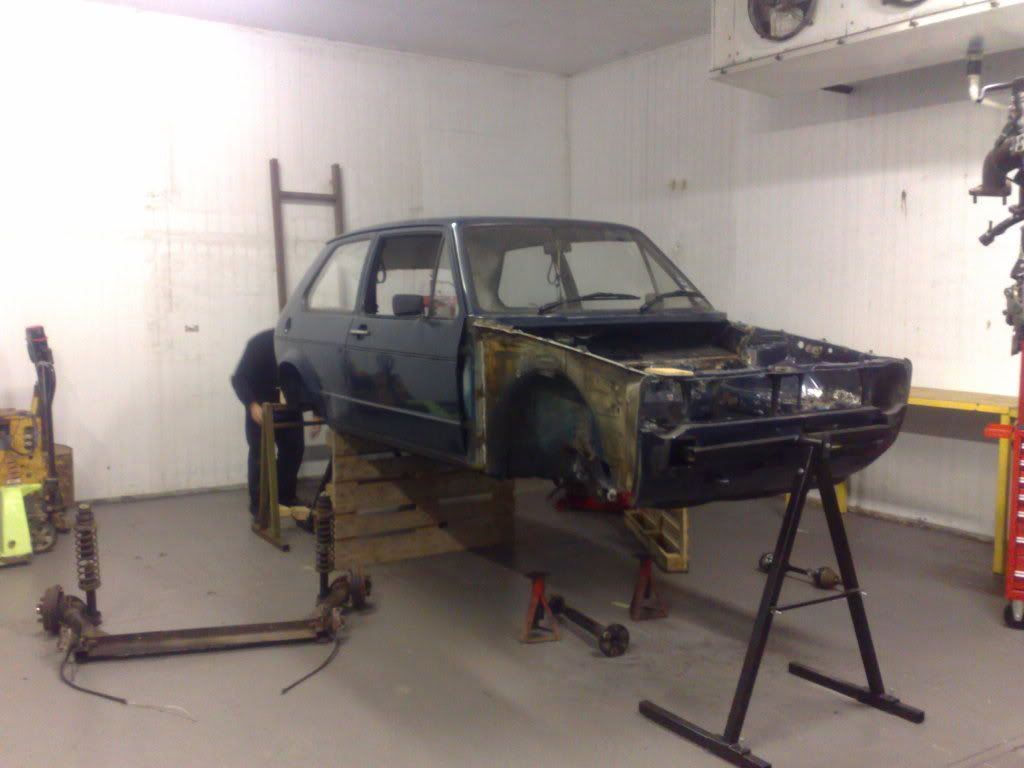

    now lets get the car up side down and have a look and see what we can do about the rear axle

    [​IMG]

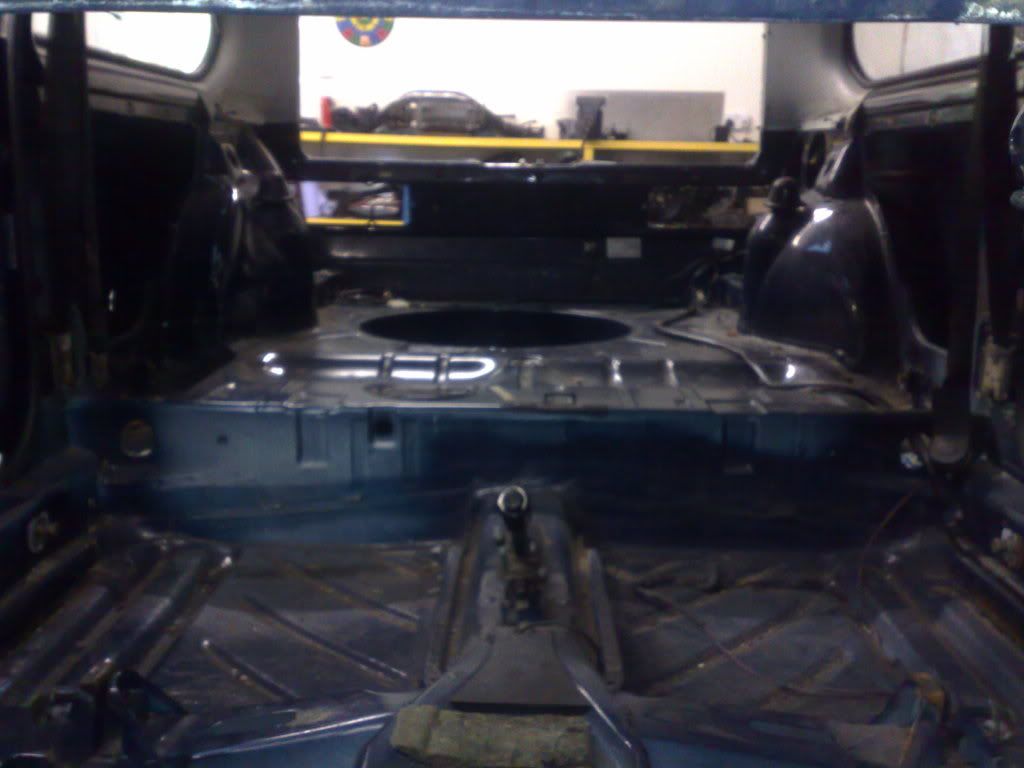

    im using a mk2 syncro rear axle but running the four motion diff in it and im trying to leave the tunnel as original as i can so i will not be chopping it out but i might have to chop the side out if it in the future to make room for the exhaust
    first i will be chopping the spare wheel well and the beam what goes across just below it

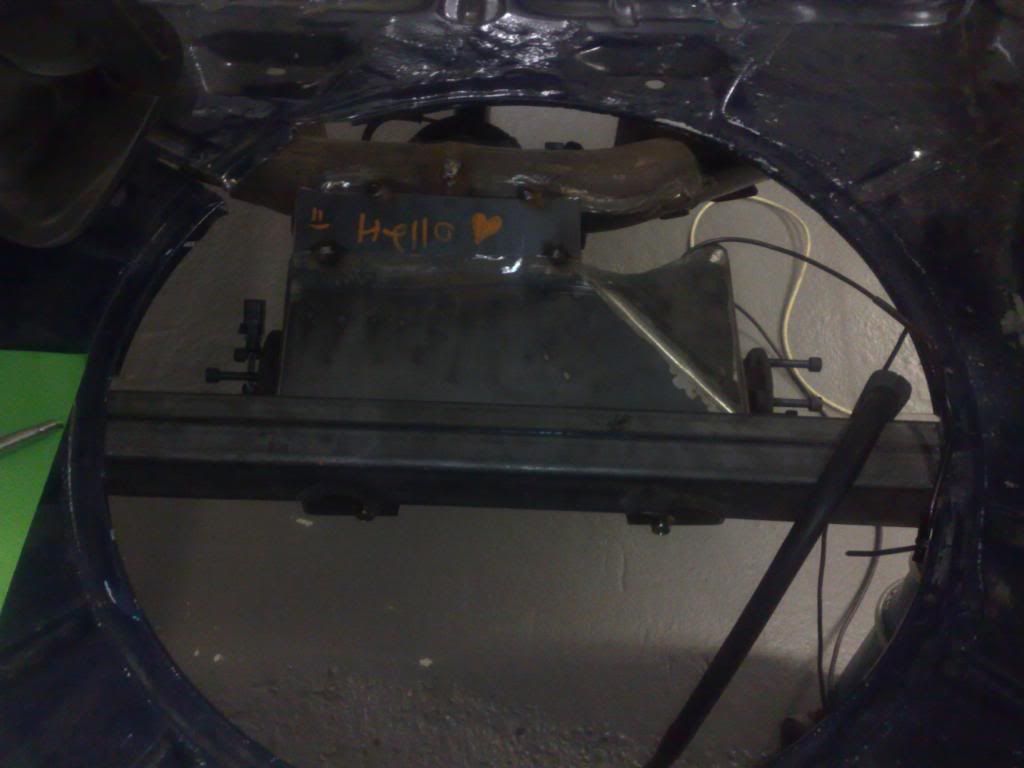

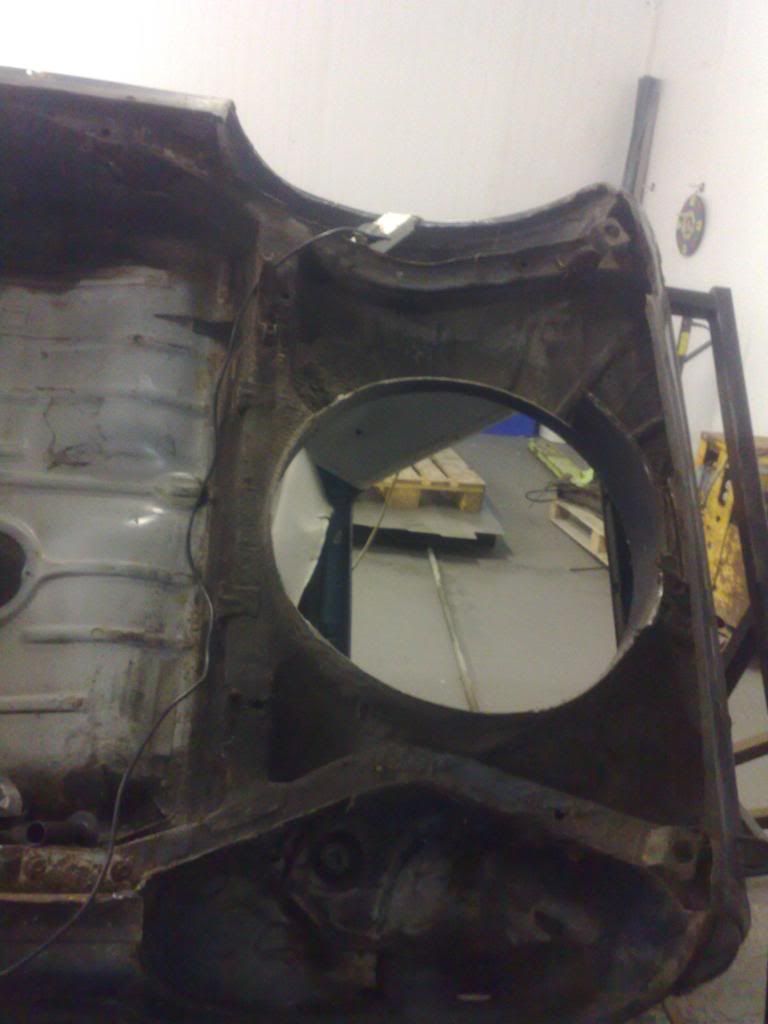

    [​IMG]

    we put the rear axle in it seems to be a bit wide for the vehicle so we chopped it down the middle and took i think 32mm out of the middle of it i used the excess material to go inside where the join is
    [​IMG]

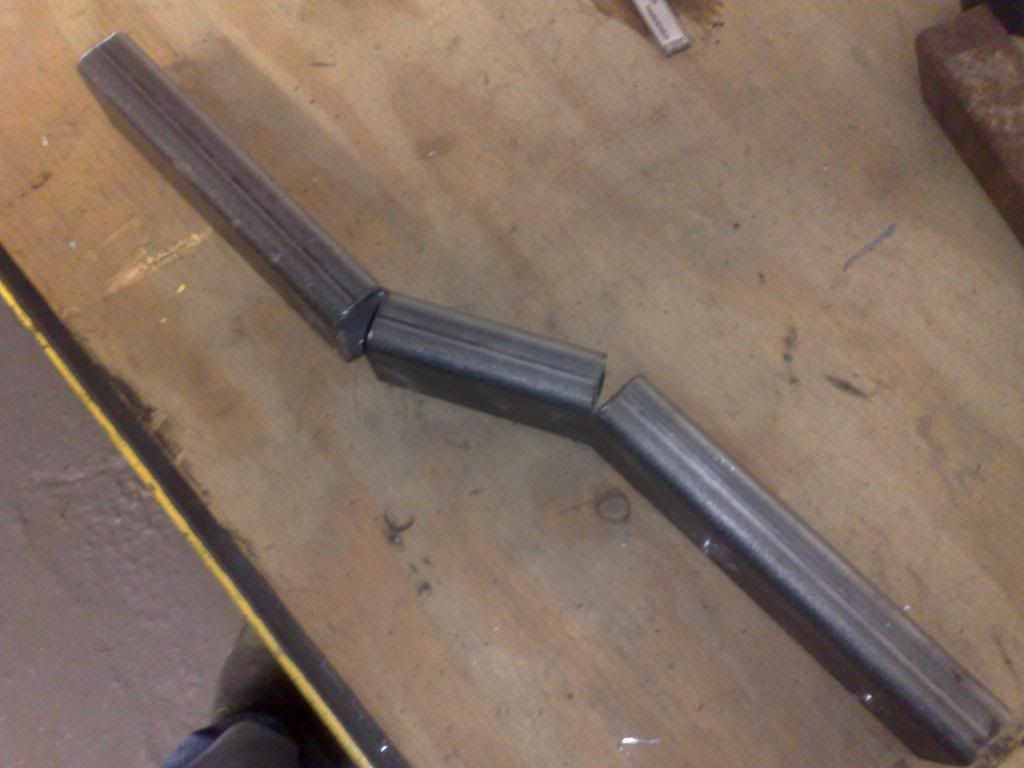

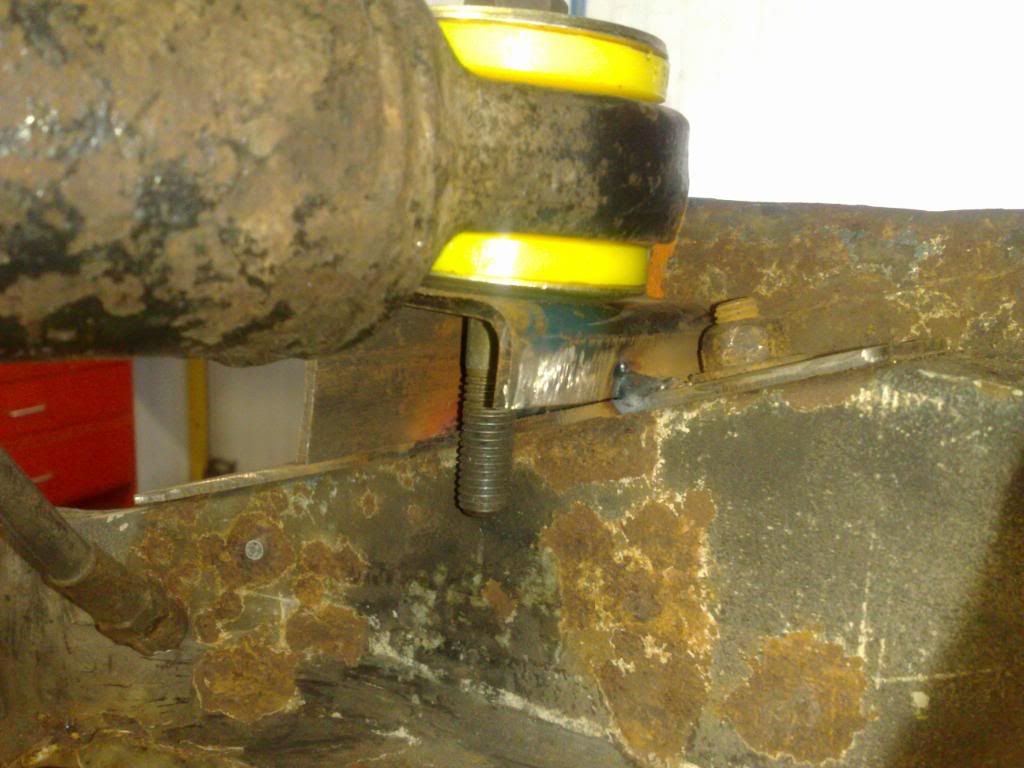

    could of used the brackets off the mk2 syncro to hold the axle in but only had one lol! so i just thought i would manufactur some
    [​IMG]
    [​IMG]

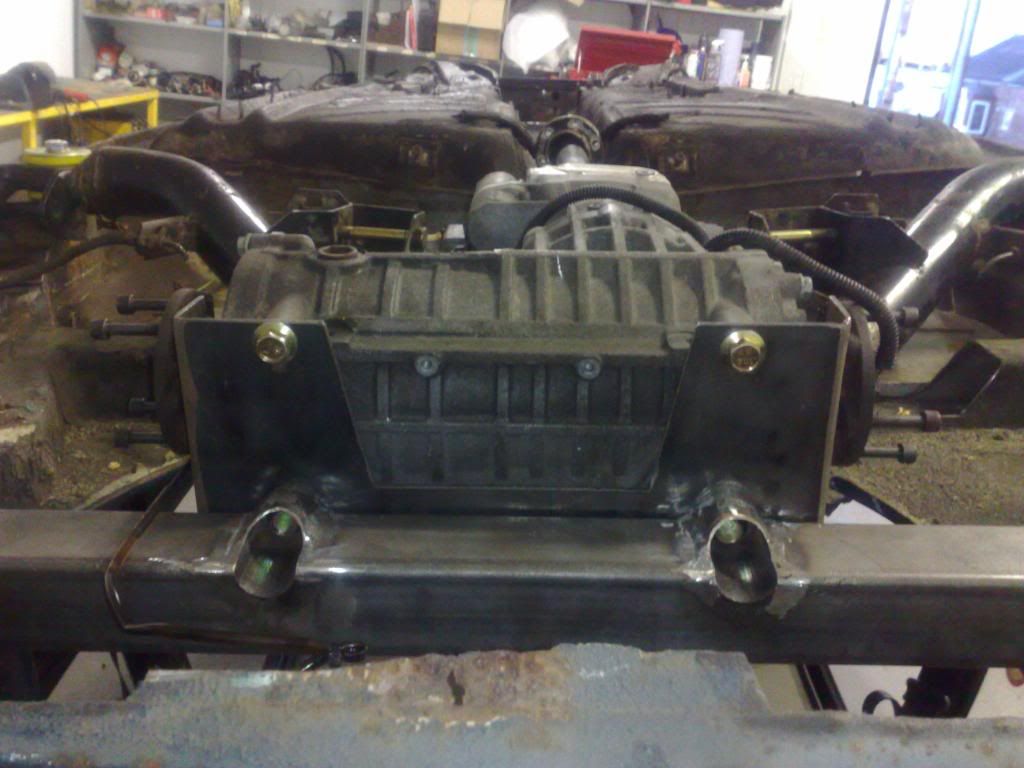

    i was planning to put the four motion diff in the same place as where the mk2 one was in relation to where the prop shaft bolts on but when eyeing it up the driveshaft seemed to be at a bit of an angle so ive tried to move the diff further back but the mounting brackets on the top of the diff were right where the axle went over so i had to make a mounting bracket up for that
    also was a bit of a newsonce moving it back as i had the box to go over the diff made so i will have to lengthen it

    [​IMG]

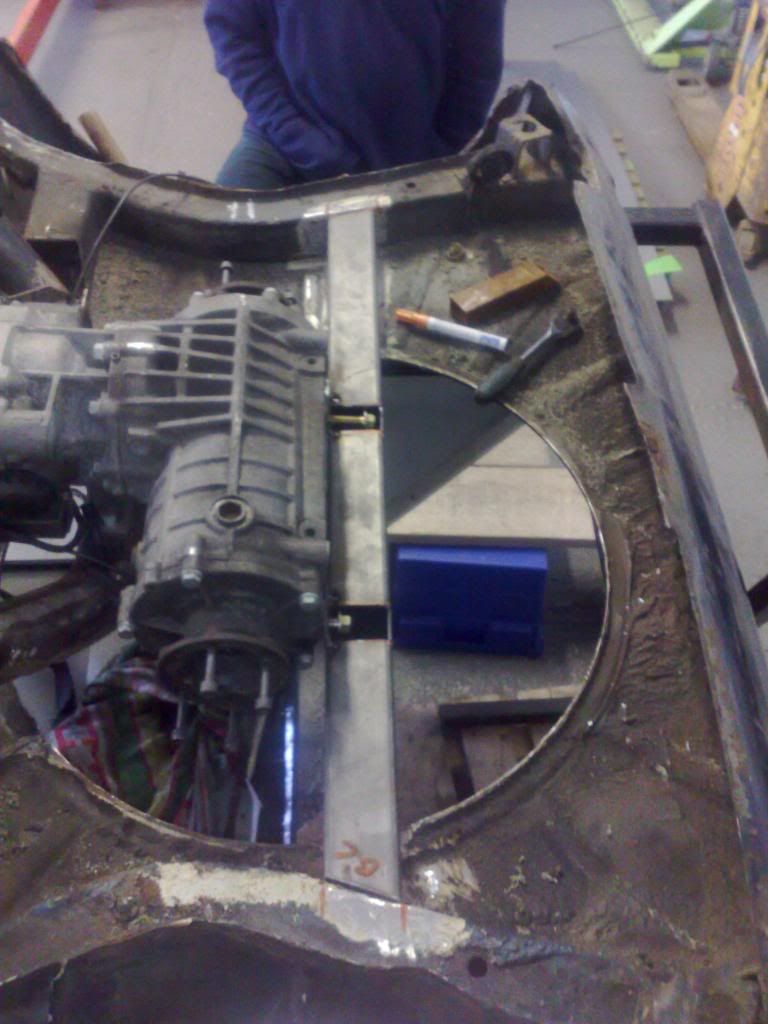

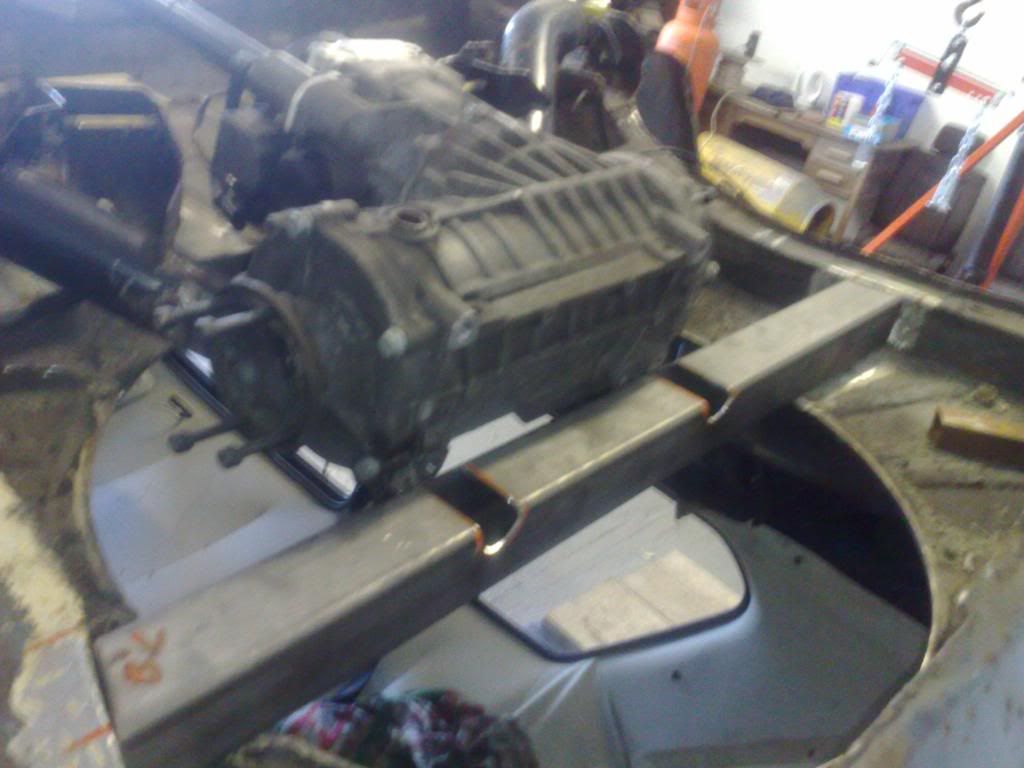

    now to put the rear mounting bracket for the diff
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    now need to fill the gap in lol
    [​IMG]
    [​IMG]

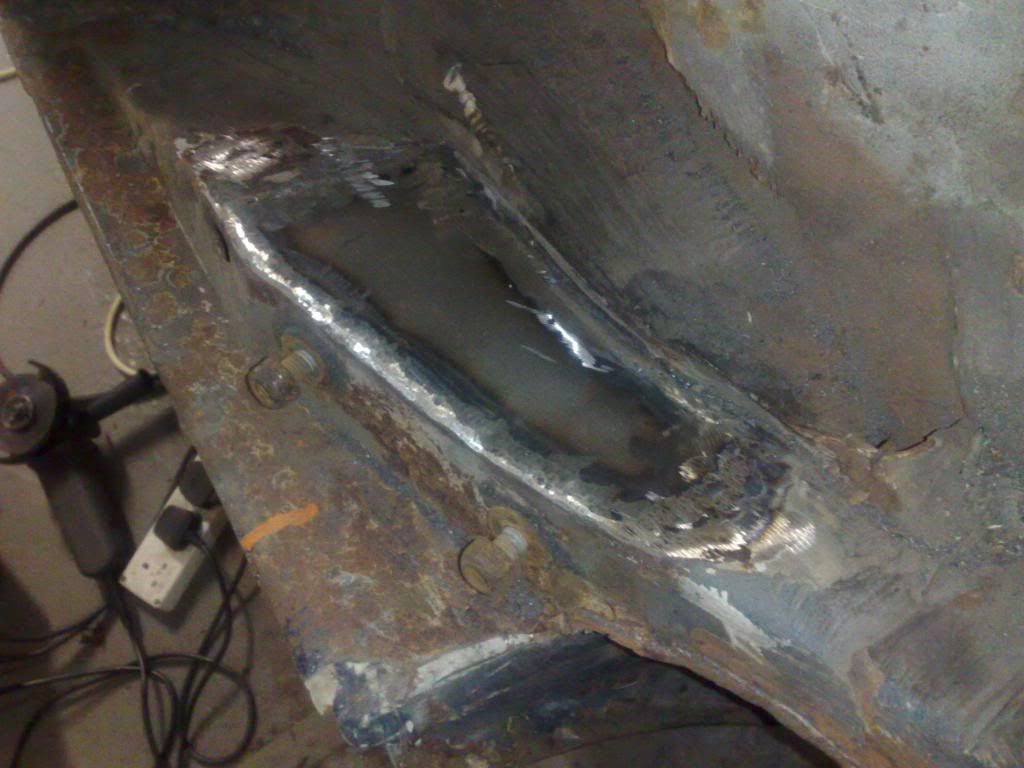

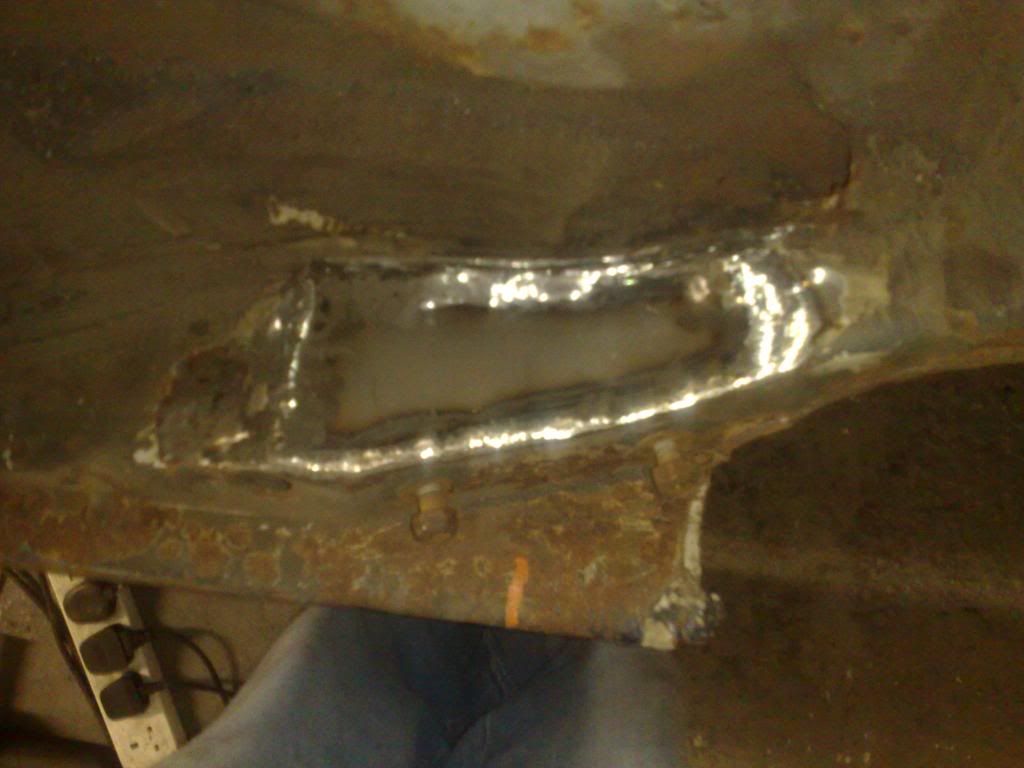

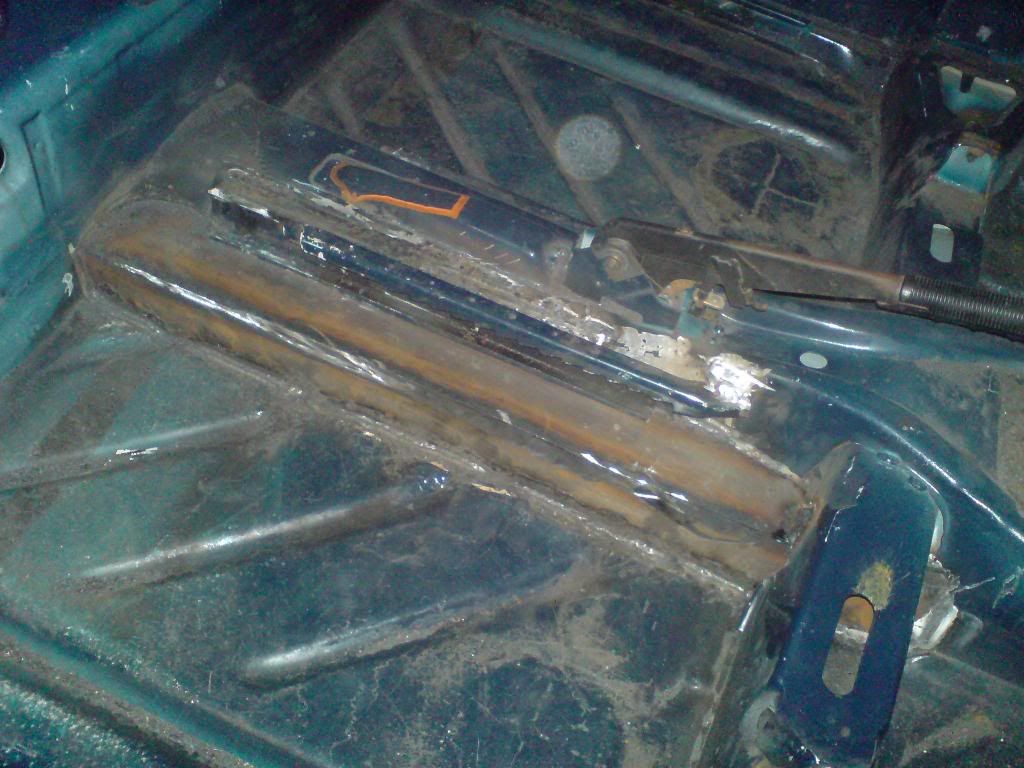

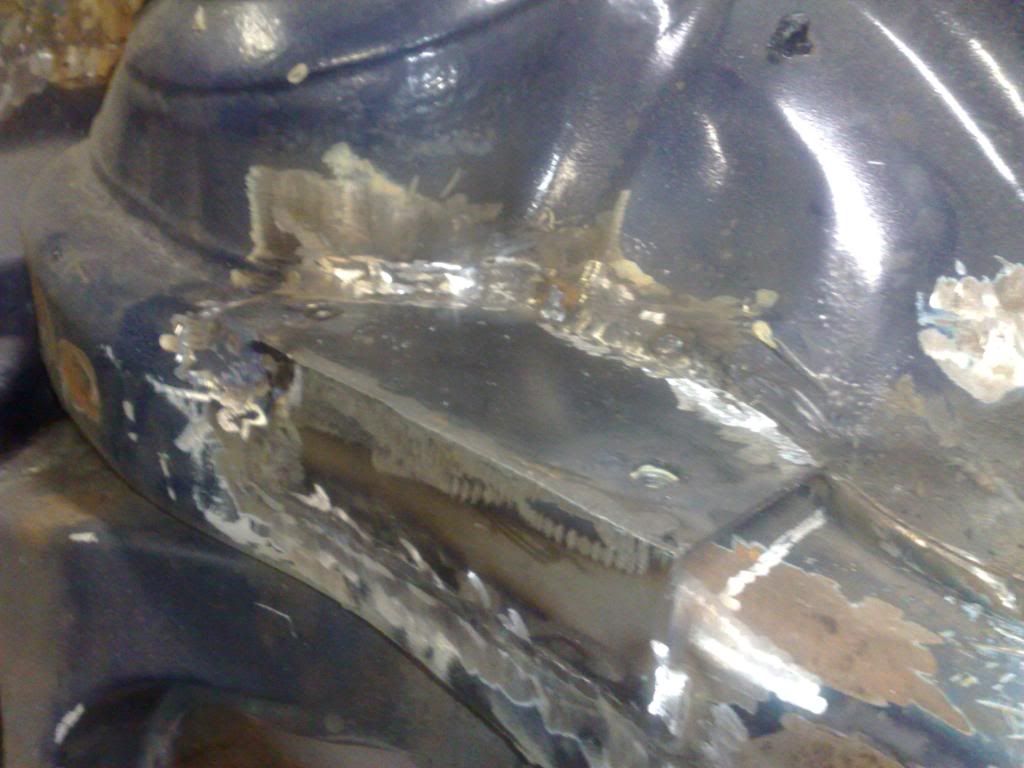

    found a bit of rust appearing a a dodgy repair on the other side from the previous owner so thought i would repair that whilst im here
    [​IMG]
    [​IMG]

  9. Joes Forum Member

    Joined:
    Apr 6, 2009
    Likes Received:
    8
    Location:
    Evesham
    thank for the incouringing comments can be a bit hard at times and finances lol as im only 19 lol

  10. LazyLunatic Forum Member

    Joined:
    Feb 12, 2010
    Likes Received:
    0
    Location:
    Plymouth, UK.
    awesome stuff! the work you have done is immense especially for someone your age. And yeah, i know what you mean about hard times and finances lol.

  11. Admin Guest

    nice work! good to see it isn't being bodged together.

  12. RallyeVR6

    RallyeVR6 Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    10
    Location:
    United Kingdom
    Looks good so far!


    Becarefull about just moving the steering rack up - it can mess around with the steering geometry. This can cause bump steer issues etc if your wishbones and steering arms aren't parrallel etc :thumbup:

    There are 2 schools of though on VR engine in a MK1 - one is the way you've done, the other is to put a fron subframe in. The subframe has the steering rack on it, and allows the prop to run above it. It also means your geometry is as VW have it with mk2's/Mk3's. It does require more cutting and fabbing to get the subframe in though.

    Last edited: Feb 21, 2010
  13. 2dubnick Forum Junkie

    Joined:
    Nov 22, 2006
    Likes Received:
    1
    Location:
    Worcester
    wow only 19, now im impressed! Do you work for a fabrication company or is this just a side hobby? Be good to come up and see it some time when it progresses abit more, im moderately local.

  14. Trev16v

    Trev16v Paid Member Paid Member

    Joined:
    Oct 22, 2003
    Likes Received:
    451
    Location:
    Oxfordshireland
    Great thread. Nice to be seeing lots of really serious build threads like this on this forum.

  15. 1550samn Forum Member

    Joined:
    Apr 11, 2009
    Likes Received:
    0
    Location:
    Walkern
    WOW..... wish i had the money (and balls :lol: ) to even consider something like that at 19! good work man, look foward to seein alot more of this!

  16. Joes Forum Member

    Joined:
    Apr 6, 2009
    Likes Received:
    8
    Location:
    Evesham
    ooo did not think about that
    could i get away with lifting the joints where they attach onto the hubs or not?

    thanks Joe

  17. Joes Forum Member

    Joined:
    Apr 6, 2009
    Likes Received:
    8
    Location:
    Evesham
    yer if you want to cum and have a look you can
    would like to get to no sum more people who are into VW

    by trade im a sparky lol but does not mean i know a lot about car wiring though lol so this is just a hobby

    thanks Joe

    Last edited: Feb 21, 2010
  18. Joes Forum Member

    Joined:
    Apr 6, 2009
    Likes Received:
    8
    Location:
    Evesham

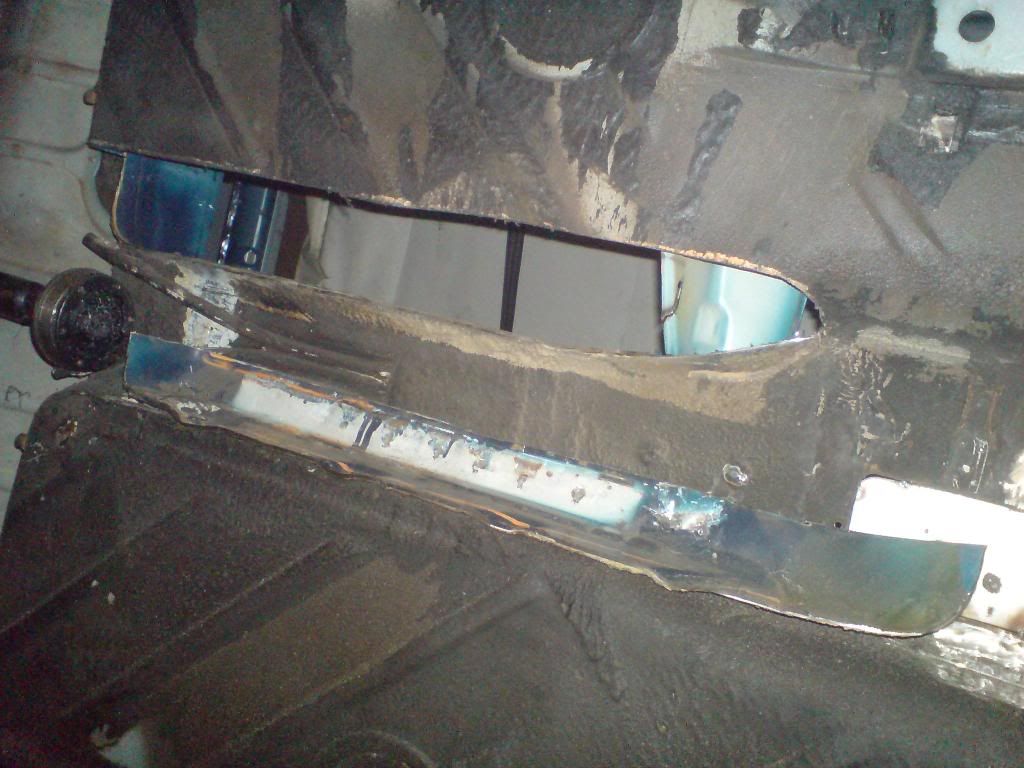

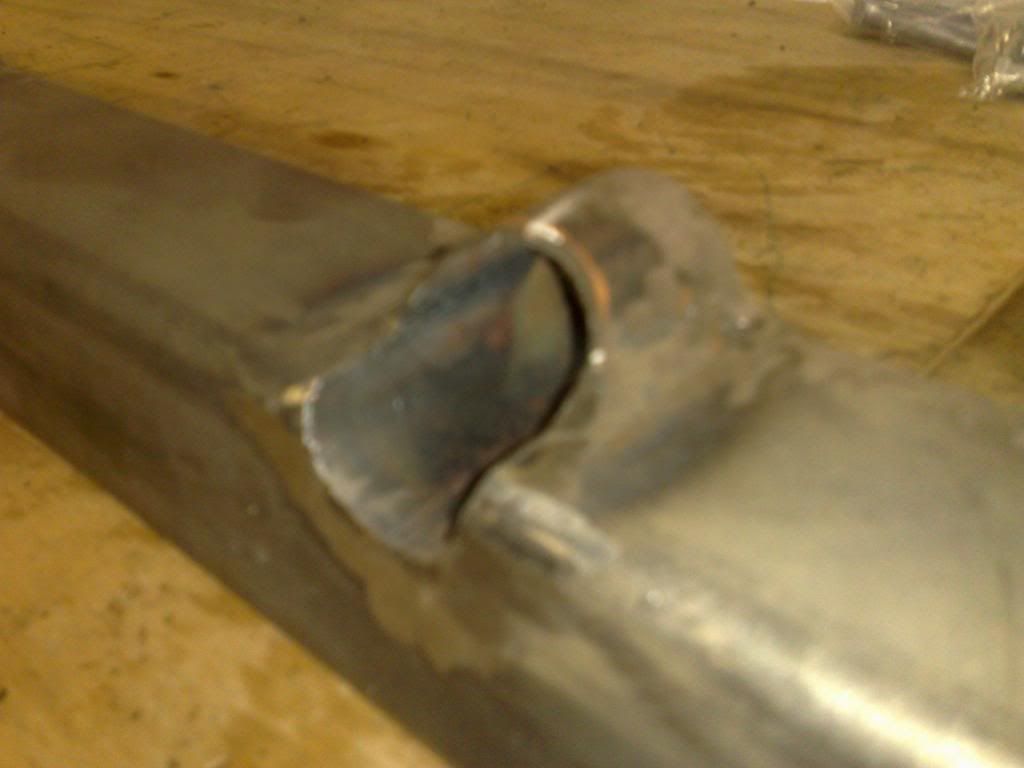

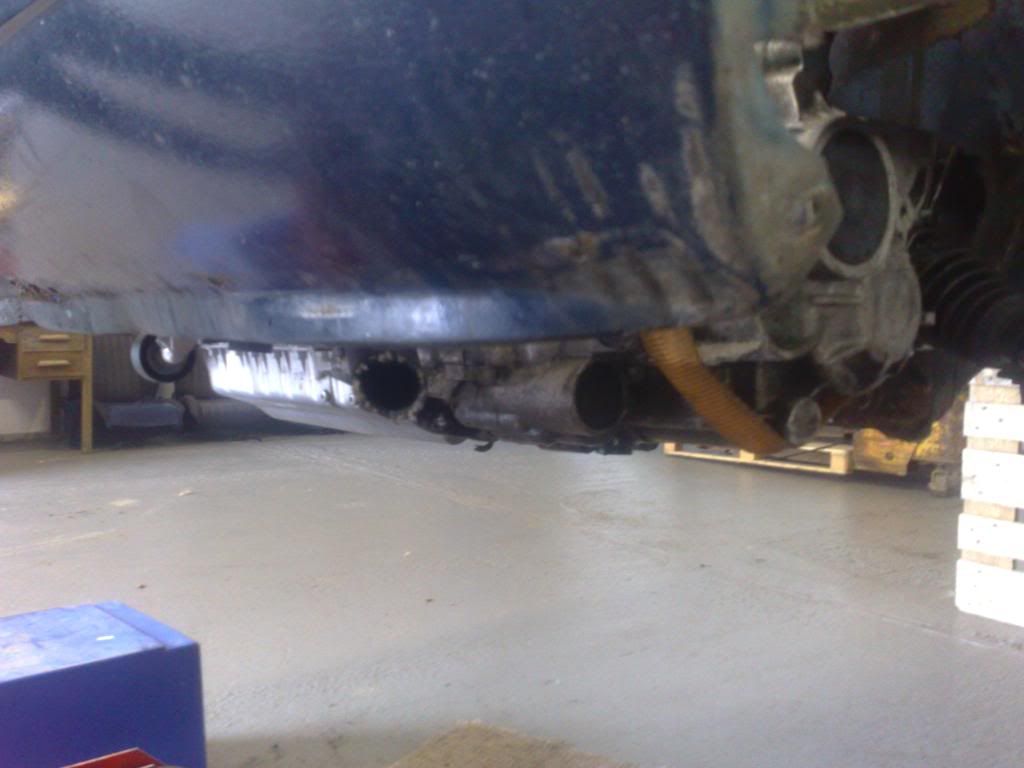

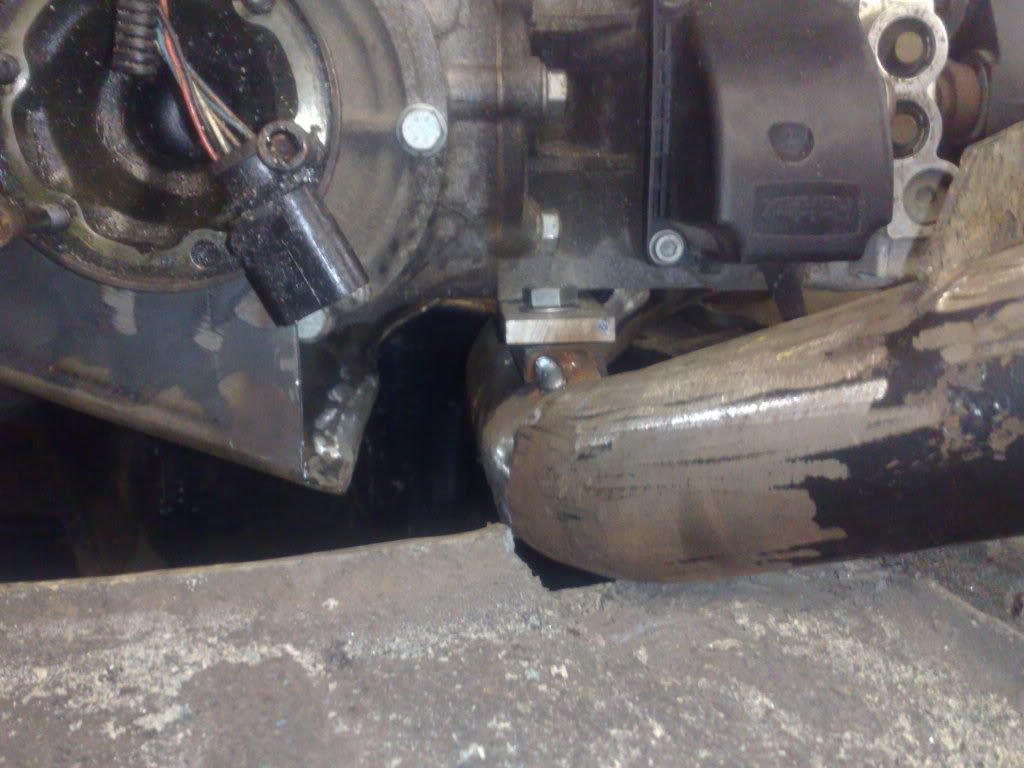

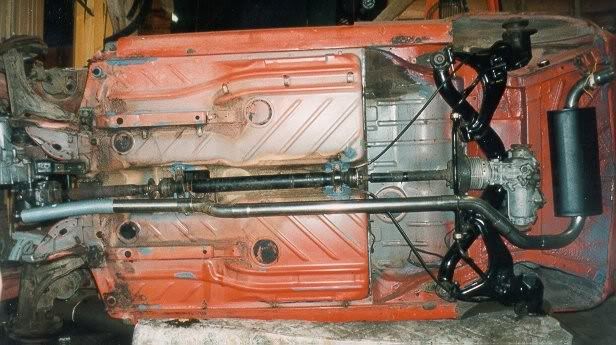

    i think im going to widen the tunnel where the back section gets narrower to make room for the exhaust as i did not like the look of this
    [​IMG]

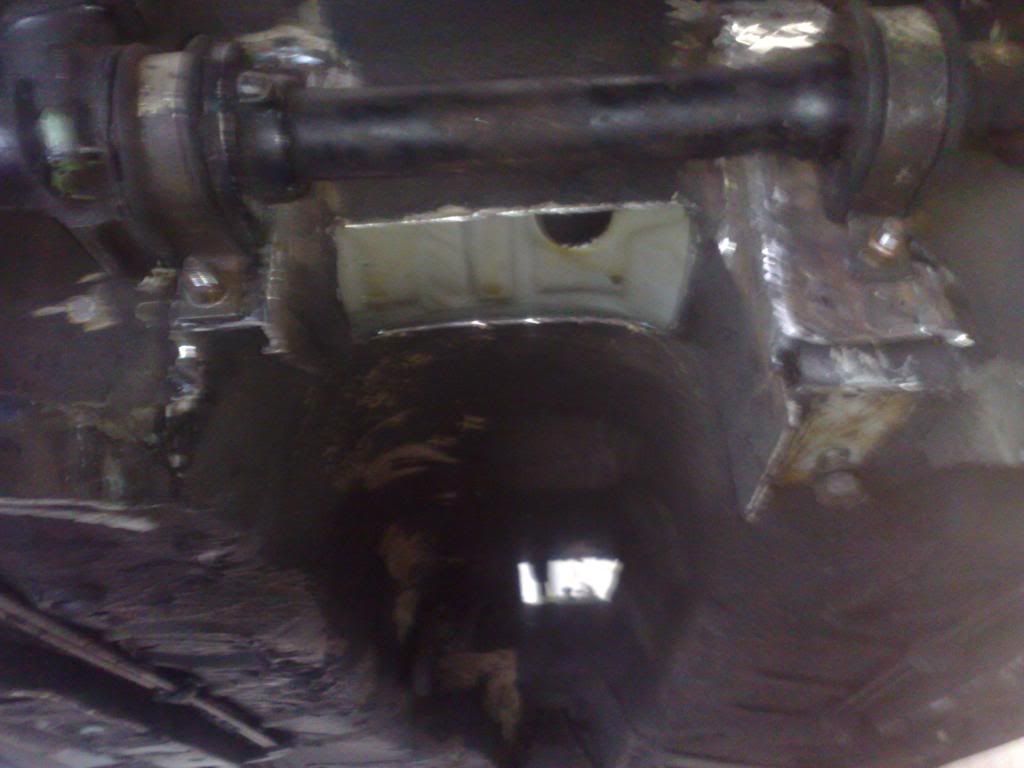

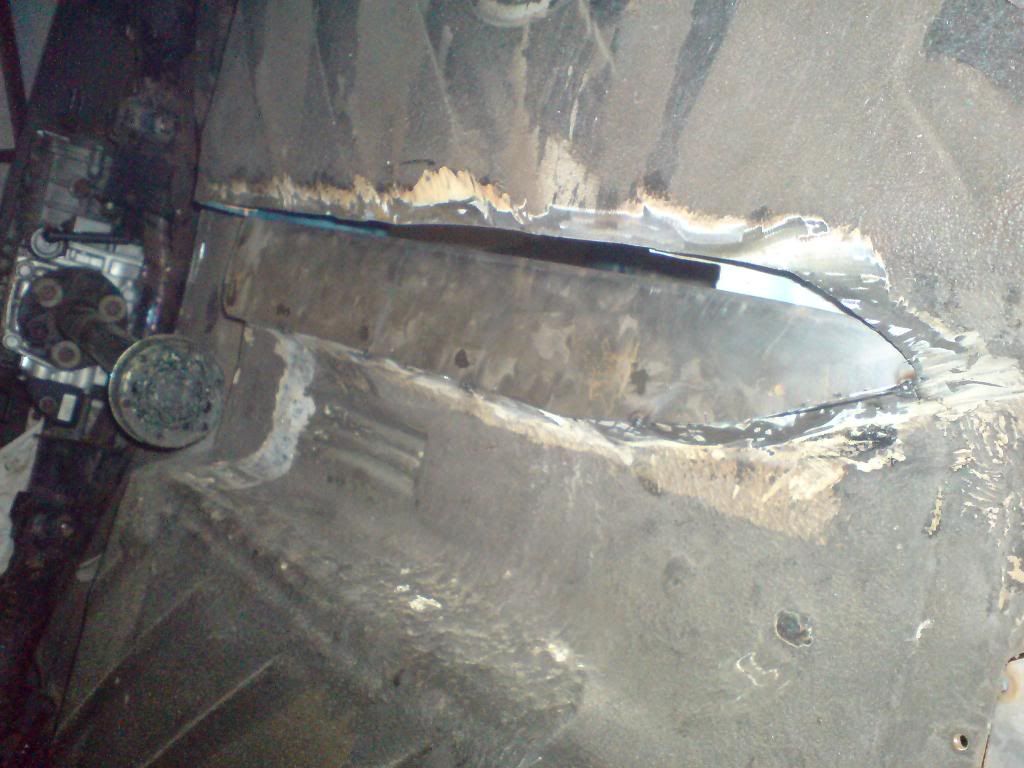

    so i thought i would do this
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    i have ordered the exhaust just waiting for it to arrive

    thought we'll go back home and get on the laith and do a bit on that

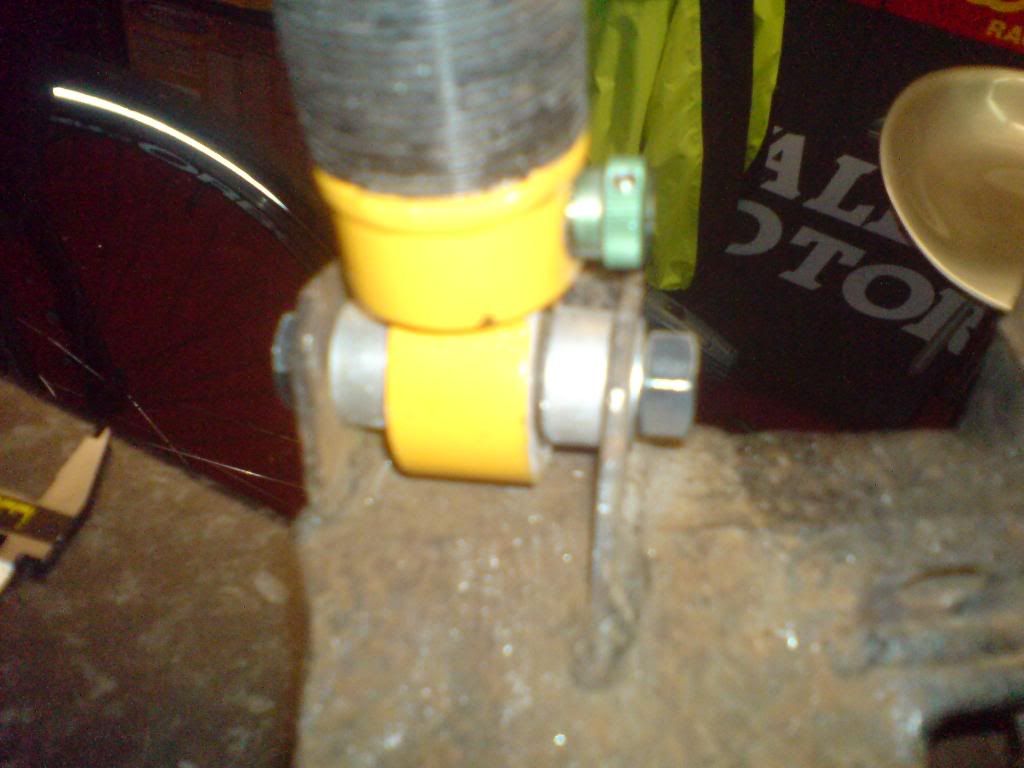

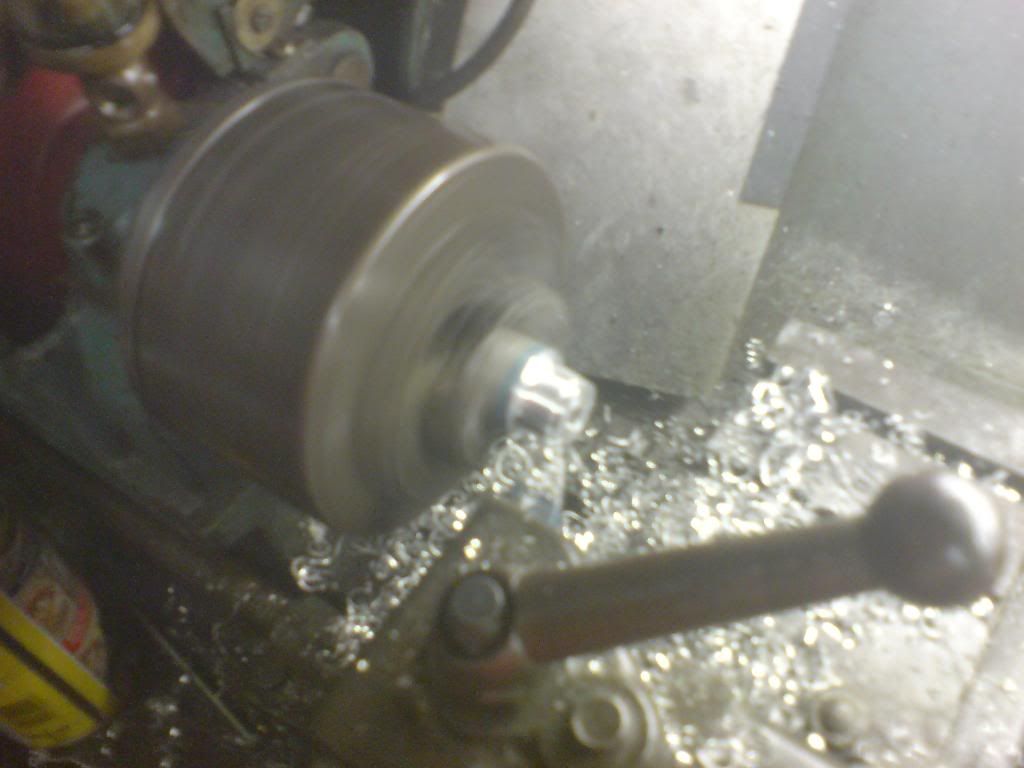

    so i started making the spacers for the spax shocks as i bought them off someone who tried to do this and gave up lol
    [​IMG]
    [​IMG]

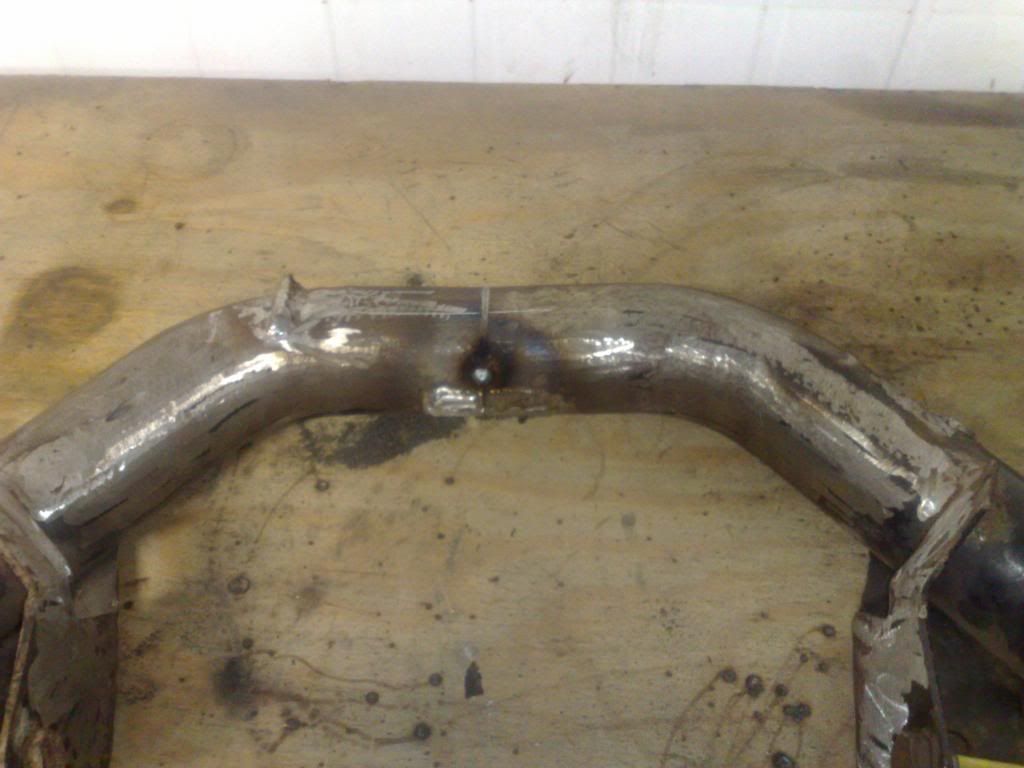

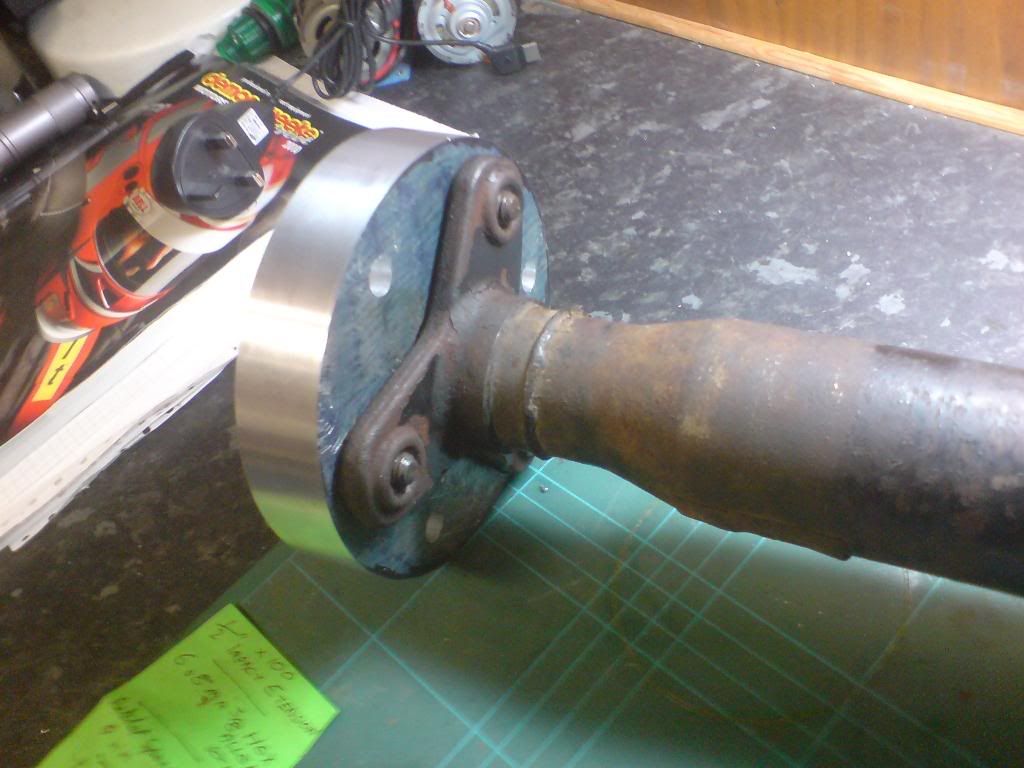

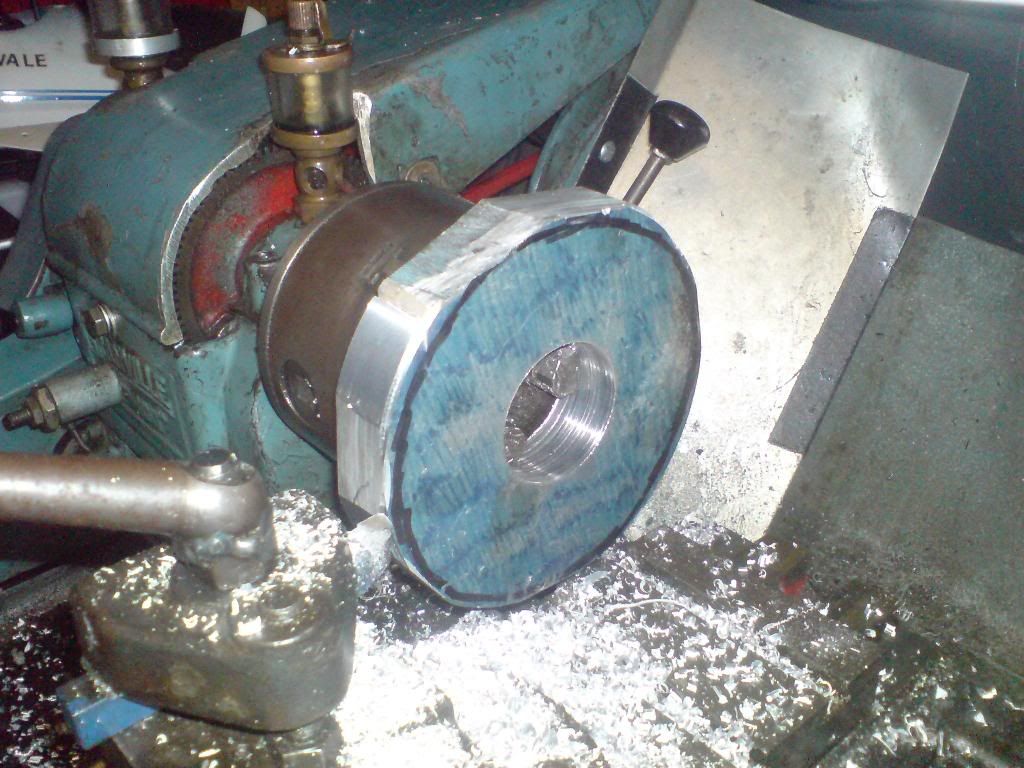

    making up the adapter to go between the gearbox and the mk2 sycro axel as the original rubber one does not line up
    [​IMG]
    [​IMG]
    [​IMG]

  19. 2dubnick Forum Junkie

    Joined:
    Nov 22, 2006
    Likes Received:
    1
    Location:
    Worcester
    good stuff, cgti worcester group started up there own forum which is www.rubbadubz.co.uk monthly meet at the nightingale on evesham rd, I should be at the next one, dont really know anyone but its friendly enough, pop down if you can its surprising how many nice dubs are in the area.

  20. Trev16v

    Trev16v Paid Member Paid Member

    Joined:
    Oct 22, 2003
    Likes Received:
    451
    Location:
    Oxfordshireland
    Hang on, you're proposing to use this solid doughnut in place of the rubber one?
