'89 Corrado 16v - ABF KJET - Fun weekend car

Discussion in 'Members Gallery' started by xan_lee, Mar 24, 2020.

  1. Savagesam

    Savagesam Moderator Staff Member Moderator

    Joined:
    Nov 24, 2012
    Likes Received:
    585
    Nice. Looks good.

    do you have a link to the catch can?

  2. xan_lee New Member

    Joined:
    Aug 17, 2018
    Likes Received:
    28
    Location:
    Bcn
  3. Savagesam

    Savagesam Moderator Staff Member Moderator

    Joined:
    Nov 24, 2012
    Likes Received:
    585
    Indeed but with 19mm outlets, they’re usually £50+ and ridiculous colours.

  4. xan_lee New Member

    Joined:
    Aug 17, 2018
    Likes Received:
    28
    Location:
    Bcn
    Finally got time to do the headlights relay harness and I must tell, it is worth the effort.

    As recommended by rubjonny I follow this diagram, 1 relay per headlight only for dipped:

    [​IMG]


    I bought some oem style connectors, so I don't need to cut the standard loom:

    [​IMG]


    Before I measured at the bulb and it was getting only 10.1 volts
    [​IMG]

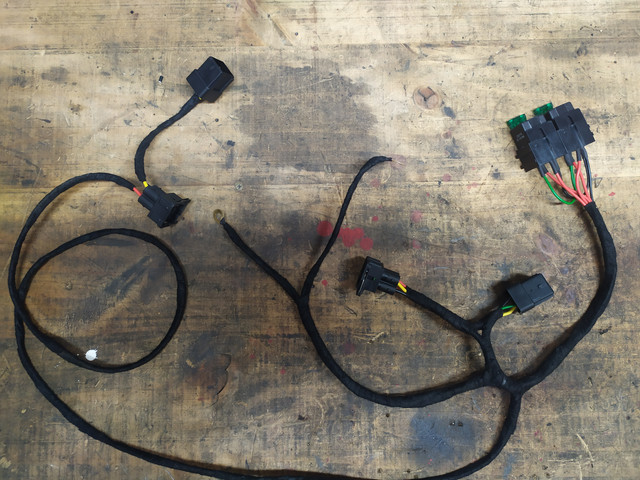

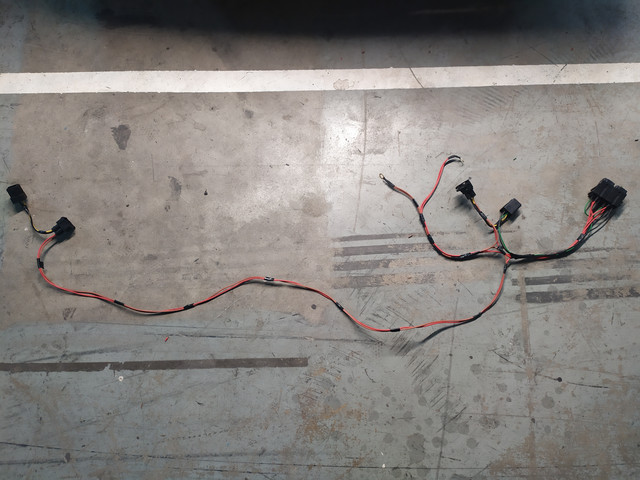

    So this is the loom I made all ready to use. As you see only 12v battery and earth must be connected, and clip it between the standard loom and the headlights.

    [​IMG]

    [​IMG]

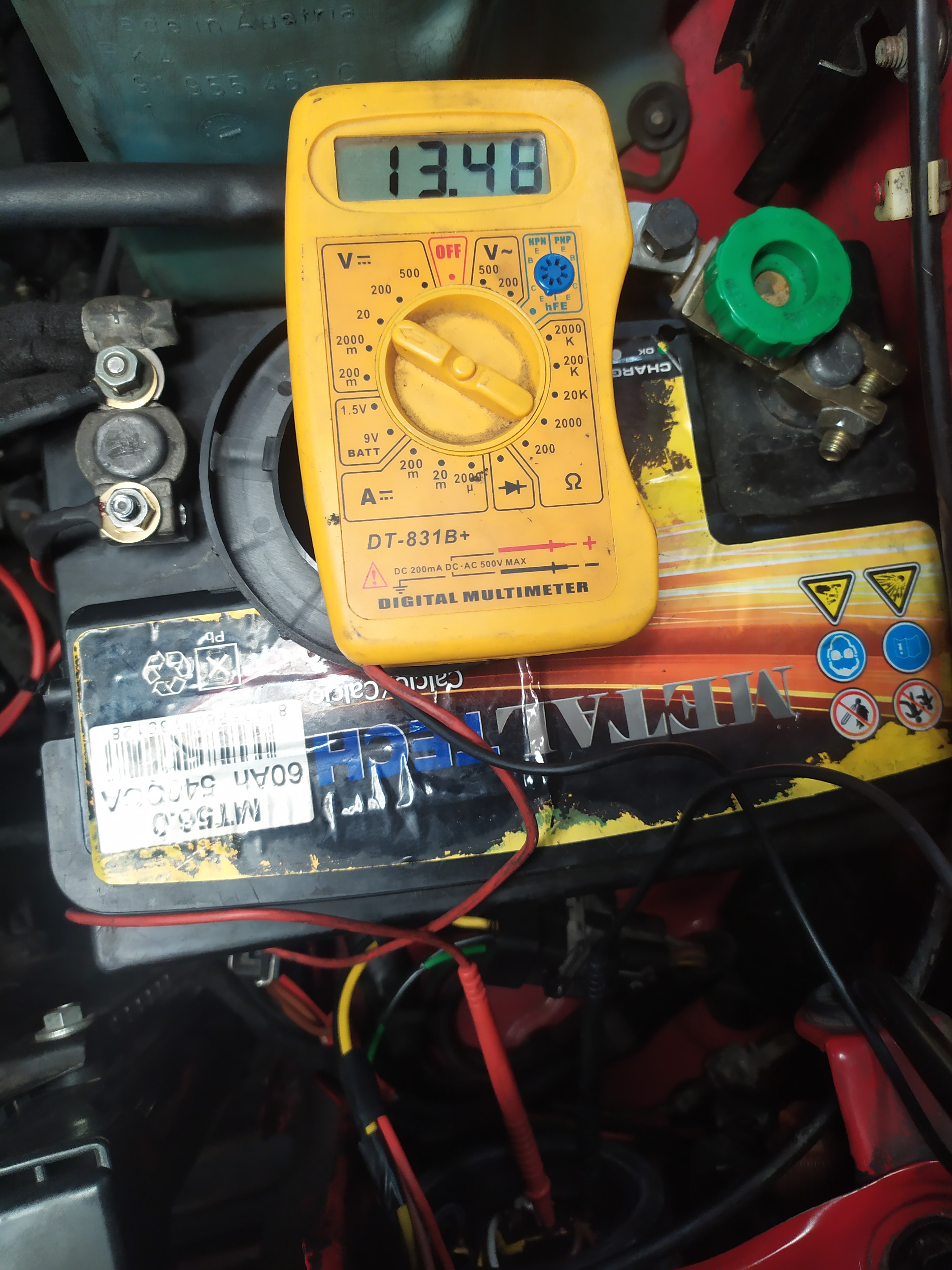

    Now I am getting 13.5 Volts at the bulb, well worth it!!

    [​IMG]

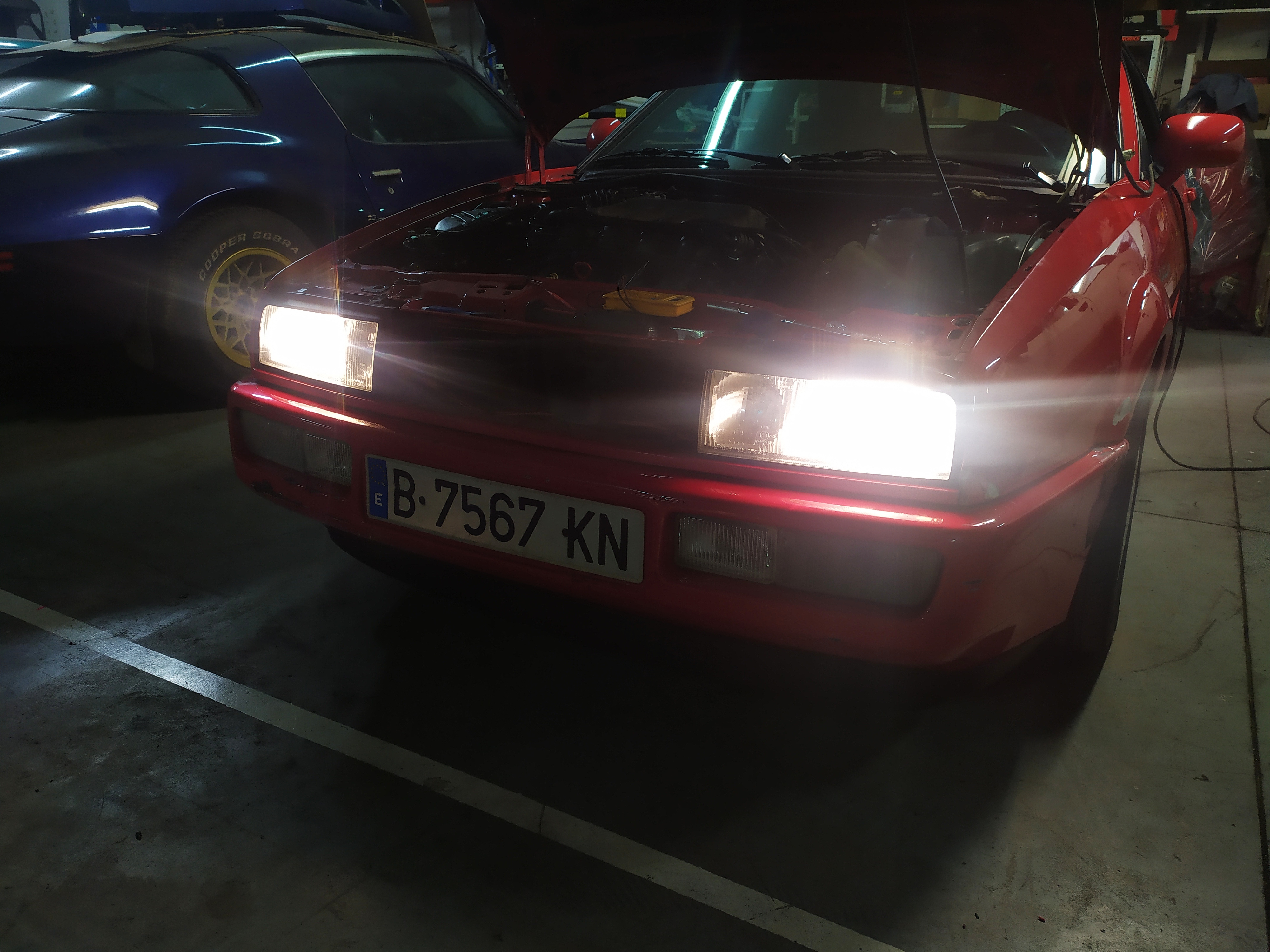

    It is really bright now, the phone camera could not focus because of that:

    [​IMG]

    erreesse, bri and Mk2daz like this.
  5. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,197
    Location:
    Bracknell
    great stuff, looks like a nice neat job :)

  6. George Murphy New Member

    Joined:
    May 26, 2020
    Likes Received:
    2
    For anyone else about to do their own headlight wiring loom for a Corrado, there is a UK Company I found when I was making mine, called Auto-Click (Auto-Click UK - Automotive Connectors (auto-click.co.uk), they stock the male and female OEM type connectors (with pins) as shown in the pic below the wiring diagram, VW 4 pin Flat Contact housing part nr: 357941165, Auto-Click's replica version- female 357 941 165 / 357941165 Auto-Click part number: 4-AC237 @ £2.74 ea, Male Part nr 357941165 Auto-Click part number: 4-AC283 @ £2.63 ea.
    As these are replica's they are perhaps not quite as accurate as OEM, a bit tight for the headlamp connector plug, but go on ok with a bit of a push, they also do other OEM type connectors. worth a look, I have used them a couple of times, quick delivery.
    I would suggest 3 x relays, 1 for each low beam side, and one for both high beams, with Fuses in line from the battery + supply.

    NateS2 and costel1969 like this.
  7. NateS2

    NateS2 Paid Member Paid Member

    Joined:
    May 1, 2019
    Likes Received:
    138
    Good find there. Its also worth checking the TE connectivity site (They own AMP, the company that make most VW connectors). It's a bit overwhelming to look through everything but their live chat support is really helpful and you can get pretty much every pin and most connectors shipped free next day.
