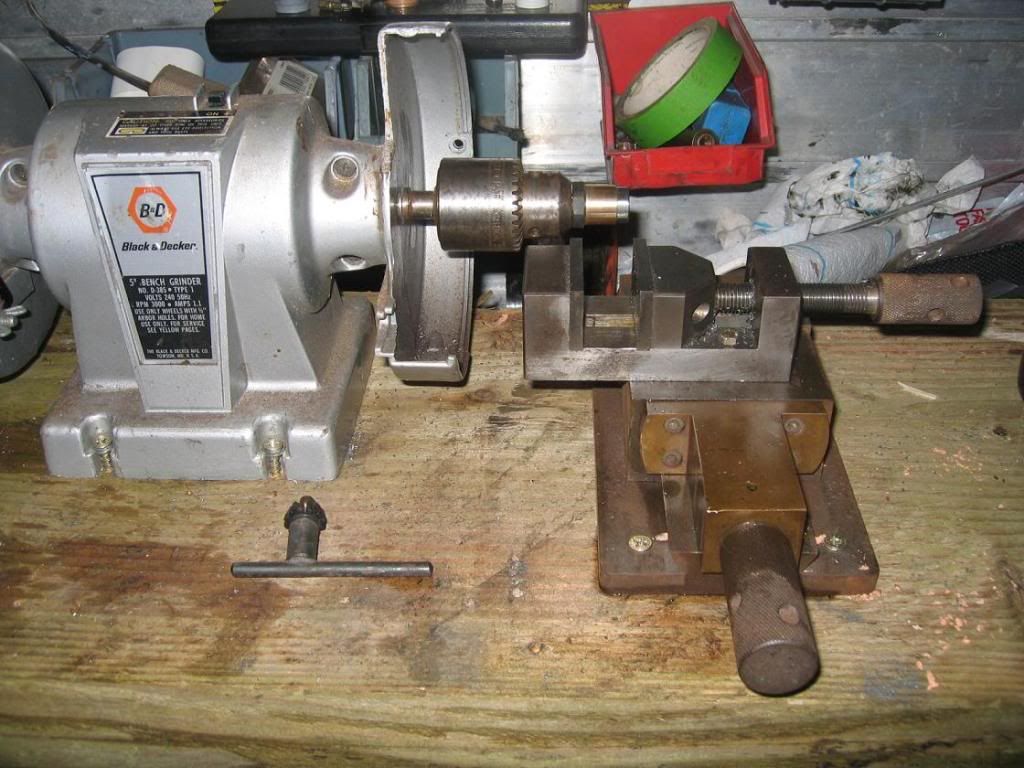

    Today, 'I ar' been mainly making a 'Lathe''.

    The two machine vices, I made as an apprentice, at Laycocks, in 1966.

    The chuck is from a 45 years old 'WOLF' drill.

    The bench grinder is about 40 years old.

    The block of wood, 'bed frame', is 12" x 8" Douglas Fir.

    Just need to make a tool post, and turning tool!


    [​IMG]

  2. A.N. Other Banned after significant club disruption Dec 5th 2

    Joined:
    Oct 23, 2003
    Likes Received:
    395
    Ha! How do you fix the chuck to the drive output?

  3. Dave

    Dave Pedantic Old Fart Paid Member

    Joined:
    Feb 26, 2007
    Likes Received:
    420
    Location:
    Sligo, Eire
    Turns out, by luck, that B & D, are so cheap and nasty, that they used a 3/8" thread on the grinder shaft!:thumbup:

  4. MUSHY 16V

    MUSHY 16V Moderator Moderator

    Joined:
    Jan 26, 2008
    Likes Received:
    793
    Location:
    aberdeen
    would you like a turning tool or two
    should have some spare in my tool box

  5. benny Forum Member

    Joined:
    Nov 3, 2003
    Likes Received:
    22
    Just need to knock up some 'Myford' stickers, job's a good un!

    Big fan of your work Dave :thumbup:

  6. matthew85 Forum Member

    Joined:
    Oct 1, 2008
    Likes Received:
    1
    Ha that's mint!

  7. Dave

    Dave Pedantic Old Fart Paid Member

    Joined:
    Feb 26, 2007
    Likes Received:
    420
    Location:
    Sligo, Eire
    Ta so J.

    I was intending to make some out of HSS drill bits.

    Would quite fancy a small triangular tipped Carbide tool. Must be a removable tip though, as I don't have a 'green' wheel.

    I have not set up, or used a lathe, for about 40 years! Last time was when I used to set up the J Type Overdrive annulus line at Laycocks. I did it for about six months.

    I still need to get a 240V speed controller sorted out!

  8. Dave

    Dave Pedantic Old Fart Paid Member

    Joined:
    Feb 26, 2007
    Likes Received:
    420
    Location:
    Sligo, Eire
    Ta so!

    [:$][:$][:$][:$][:$][:$][:$]

  9. aidanb22 Forum Member

    Joined:
    Feb 14, 2006
    Likes Received:
    0
    Location:
    Redditch, Worcs nr Birmingham
    What wattage is it?

  10. aidanb22 Forum Member

    Joined:
    Feb 14, 2006
    Likes Received:
    0
    Location:
    Redditch, Worcs nr Birmingham
  11. Dave

    Dave Pedantic Old Fart Paid Member

    Joined:
    Feb 26, 2007
    Likes Received:
    420
    Location:
    Sligo, Eire
    Ta so Aidan. 1.1 Amp. It stalls out with the least bit of load on the grinding wheel.

    I flipping well never thought of a dimmer switch! Thank you so much!:thumbup:

    ps. Screwfix won't deliver to Eire. But, I can soon find a dimmer somewhere around.

    pps. Volex may be owned by Crabtree. But, I can tell you, from years of experience, that it is not as good. That it why it is so much cheaper!

    Last edited: Nov 10, 2010
  12. aidanb22 Forum Member

    Joined:
    Feb 14, 2006
    Likes Received:
    0
    Location:
    Redditch, Worcs nr Birmingham
    Looks naff from the front I will agree, but the dimmer switchgear has crabtree written on it! Maybe they come straight from the rejection pile!

  13. Dave

    Dave Pedantic Old Fart Paid Member

    Joined:
    Feb 26, 2007
    Likes Received:
    420
    Location:
    Sligo, Eire
    OK Aidan. Thanks for the heads-up. I will look at the back of any dimmers that I find!

    Once upon a time, I only used Crabtree. These days I only use MK. Can't find Crabtree easily in Eire!

    ps. Once upon a time, when I had cash, I employed an Electrician to re-wire my 400 years old cottage in Derbys. The wiring was lead cased it was so old. He fitted Volex, even though I had written a spec. stating that only Crabtree should be used. I did not pay him 'til he had changed everything to Crabtree!

    Last edited: Nov 8, 2010
  14. Dave

    Dave Pedantic Old Fart Paid Member

    Joined:
    Feb 26, 2007
    Likes Received:
    420
    Location:
    Sligo, Eire
    I made a turning tool from an HSS drill bit today. Burnt out very quickly.

    Oilite only recommend Carbide or Diamond.

    Mushy. Have you got a Diamond tool you don't need? 0.1mm/0.2mm tip rad!:thumbup:

  15. mec82 Forum Member

    Joined:
    Jul 23, 2008
    Likes Received:
    9
    thats look really good, for the next one how about making a milling machine from a pillar drill!

  16. Dave

    Dave Pedantic Old Fart Paid Member

    Joined:
    Feb 26, 2007
    Likes Received:
    420
    Location:
    Sligo, Eire
    Sort of.

    I have a Lidl pillar drill thingy, that you fasten a normal drill into. The bracket for the drill has broken.

    I also have a 20,000 rpm router head, the base of which has broken.

    Add the two together + the two-vice traverse system = milling machine.

    Great minds think alike!:lol:

  17. Brian.G

    Brian.G Forum Member

    Joined:
    Feb 3, 2008
    Likes Received:
    446
    Location:
    West of Ireland
    Dave, Im Impressed. I should let you know that I have a spare http://www.lathes.co.uk/raglan/page14.html

    In good shape missing a tool post and tail stock, Id value it at around 100-150euro, if you have anything you would consider trading its yours. I have two other lathes, Bridget, and just two hands.

  18. danster Forum Addict

    Joined:
    Apr 2, 2008
    Likes Received:
    7
    Another suitor for Miss daved perhaps? :lol:

  19. Brian.G

    Brian.G Forum Member

    Joined:
    Feb 3, 2008
    Likes Received:
    446
    Location:
    West of Ireland
    :lol::lol: Its a realllllllllll sweet lathe now:thumbup::lol:

  20. danster Forum Addict

    Joined:
    Apr 2, 2008
    Likes Received:
    7
    I will accept a small commission from you if everything goes to plan with your deal with daved. ;)

    How about you "cast" me the perfect woman? :p

    At least she will be hot for a certain length of time. :thumbup:
