Idle Stabilisation Valve (ISV) teardown

Discussion in 'Engines' started by davkav, Apr 17, 2018.

  1. davkav

    davkav Paid Member Paid Member

    Joined:
    Sep 30, 2010
    Likes Received:
    136
    Location:
    Ireland
    So at the weekend I started the mk2 for the first time in over 6 months. The idle was all over the place and the engine kept cutting out when the throttle was blipped. Before taking the car off the road I had setup the timing and CO, so I was pretty confident it wasn't either of these. Long story short, I traced the failure back to the Idle Stabilisation Valve (ISV).

    I had a spare plug and tails there that had the same plug as the ISV took so I was able to test the valve by connecting it directly to the battery. I had read that you should be able to clearly see the valve moving inside by looking in the side port. The solenoid in mine was activating but the valve wasn't moving. So I decided to strip it down.

    The solenoid and valve body seperate so it was pretty easy to strip it down into its main components and see what the problem was. There are four small tabs pressed into the aluminium that hold the solenoid inside the valve body housing. These can be tapped off with a flat head and hammer. When I reassembled I simply tapped new tabs down to hold it altogether again.

    The valve body was seized with carbon/oil/gunk build up. I gave it a good clean with carb cleaner, made sure the valve body was moving across its full length and then reassembled. Plumbed it back into the car, started it up and idle was spot on was once I adjusted the Idle Control screw in the throttle body.

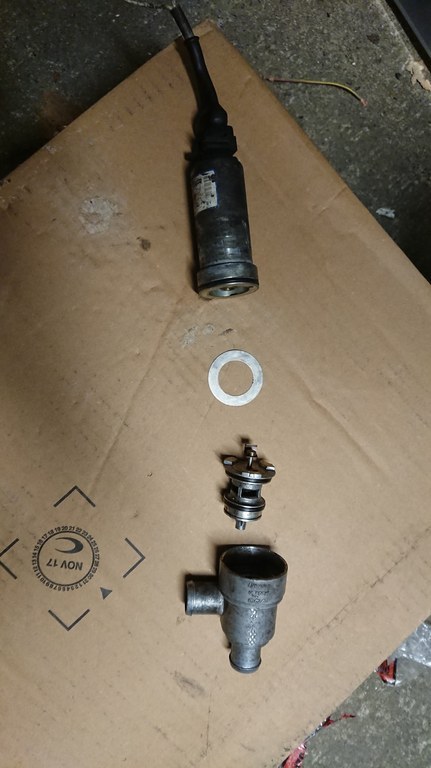

    ISV taken apart to its main components:
    [​IMG]

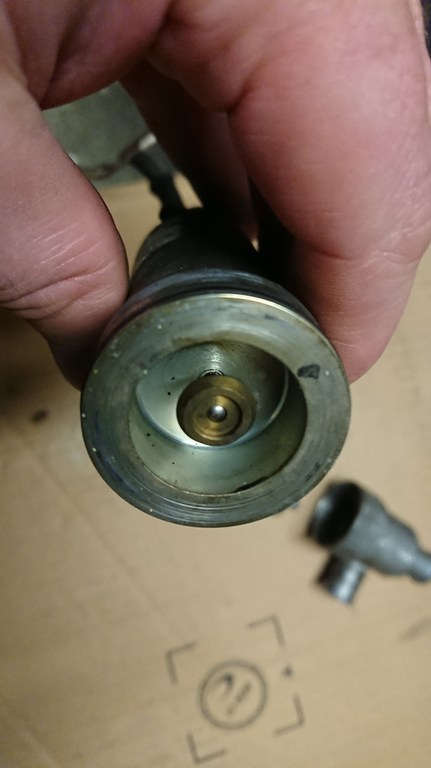

    The solenoid end, the brass ring moves up and down to open and close the valve as required:
    [​IMG]

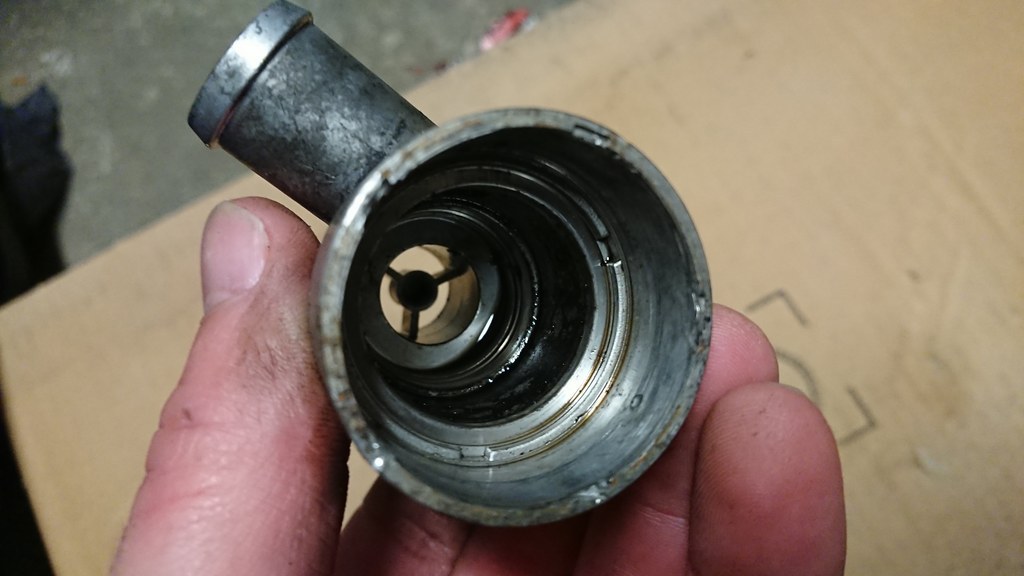

    The valve body with the valve removed. You can see the 5 tabs on outer edge of the housing that hold the solenoid in place :
    [​IMG]

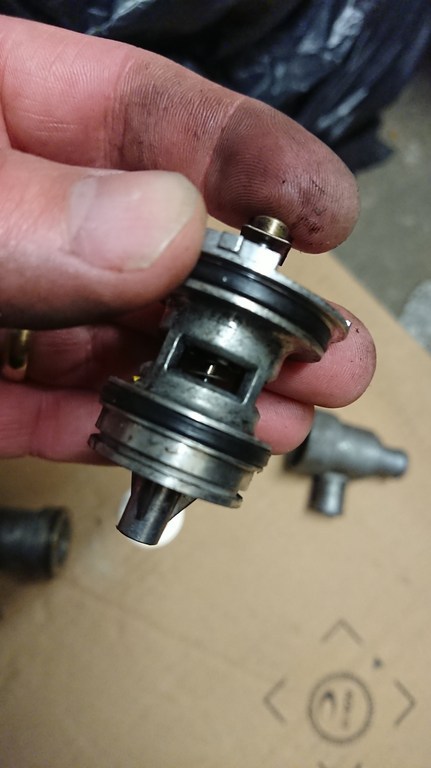

    The valve in the open position:
    [​IMG]

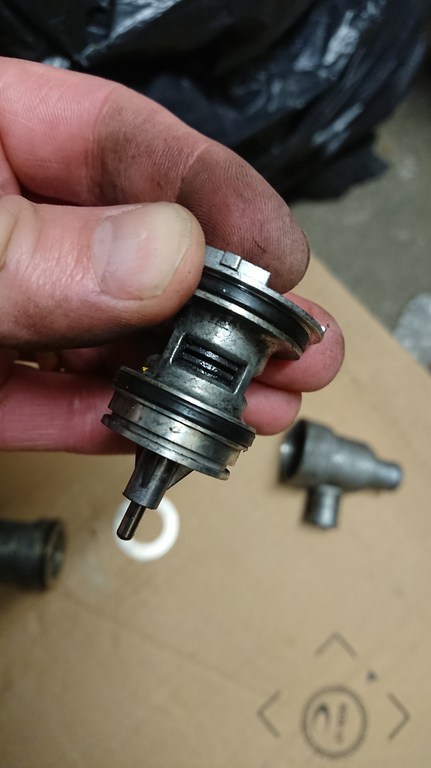

    The valve in the closed position:
    [​IMG]

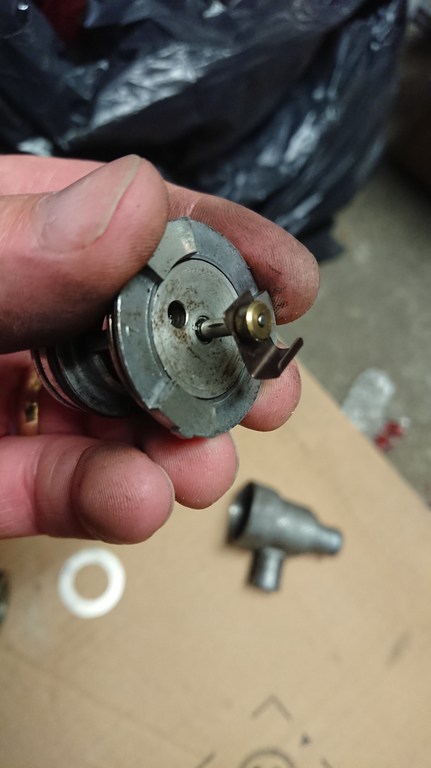

    And the valve head with the actuator on top:
    [​IMG]

    Sirguydo likes this.
  2. Sirguydo

    Sirguydo Fastest milkman in the West Paid Member

    Joined:
    Nov 7, 2012
    Likes Received:
    1,203
    Location:
    Bolton
    Weird I can’t see any pictures until I go to reply to thread .

  3. davkav

    davkav Paid Member Paid Member

    Joined:
    Sep 30, 2010
    Likes Received:
    136
    Location:
    Ireland
    Somethings up alright, I cant see the photos in my mk2 thread but I can see the above ones...

  4. Tristan

    Tristan Paid Member Paid Member

    Joined:
    Apr 25, 2006
    Likes Received:
    1,233
    Location:
    Southern IRELAND
    Great posts Dave .

  5. Rooster

    Rooster Paid Member Paid Member

    Joined:
    Jun 13, 2007
    Likes Received:
    40
    Location:
    Fleet Hampshire
    Interesting stuff, I have a selection of non working ISVs so I might give this a try. Thanks

  6. Sirguydo

    Sirguydo Fastest milkman in the West Paid Member

    Joined:
    Nov 7, 2012
    Likes Received:
    1,203
    Location:
    Bolton
    They sell for good money on eBay lol

  7. Rooster

    Rooster Paid Member Paid Member

    Joined:
    Jun 13, 2007
    Likes Received:
    40
    Location:
    Fleet Hampshire
    Yes, that’s why I’ve got a selection, went through 3 purchases listed as GWO before I got one that worked

  8. Rooster

    Rooster Paid Member Paid Member

    Joined:
    Jun 13, 2007
    Likes Received:
    40
    Location:
    Fleet Hampshire
    I gave this a try yesterday as I have a spare non functioning ISV. Definitely a learning experience as getting the valve away from the actuator didn't improve its appearance. Once at that stage I couldn't work out how to get the valve out of the body so resorted in the end to a good soak in petrol and lots of agitation. If the petrol was anything to go by afterwards it certainly got rid of a lot of gunk. I just need to try it in the car now to see what difference it's made as the one fitted has been very temperamental

  9. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    3,382
    Location:
    Bracknell
    stickied :thumbup:

    KeithMac and Tristan like this.
  10. KeithMac Forum Junkie

    Joined:
    Oct 27, 2003
    Likes Received:
    157
    Location:
    Kazakhstan
    Might try mine in the ultrasonic bath while it's pulsing to clean some Gunk out of it.

    Good write up, interesting to see what's inside one!.

  11. XAV

    xav New Member

    Joined:
    Sep 20, 2022
    Likes Received:
    1
    Thank you for sharing tips ...Now i need to open mine to see inside [8D][8D] by myself
    I've excat same issue with my idle and i think it the ISV messing aroud.
    I will buy one in remplacement
