Kjet Vacuum system

Discussion in 'K-Jetronic OEM injection' started by Coakers, Jan 9, 2020.

  1. Coakers

    Coakers Forum Member

    Joined:
    Feb 26, 2016
    Likes Received:
    84
    Location:
    St Helens
    I'm just after a clear diagram of the vaccum system for the kjet, preferably photos. I've seen the one on etka but doesnt give me the routing etc. Many thanks and muchos appreciation given.

  2. rubjonny

    rubjonny Administrator Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    1,883
    Location:
    Bracknell

    erreesse likes this.
  3. Coakers

    Coakers Forum Member

    Joined:
    Feb 26, 2016
    Likes Received:
    84
    Location:
    St Helens

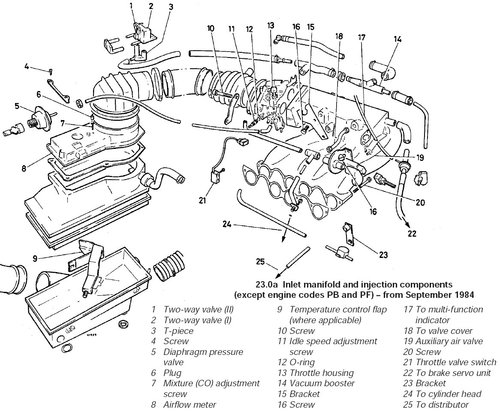

    Brilliant mate cheers, where does the servo vac line go? Edit* nevermind I see it. Just a bit different because this appears to be an 8v manifold

    Last edited: Jan 11, 2020
  4. rubjonny

    rubjonny Administrator Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    1,883
    Location:
    Bracknell
    ah sorry its for a 16v, just assumed 8v. heres a really amazing diagram, brace yourself for the mspaint

    GVK likes this.
