Mk2 rear brake compensator

Discussion in 'Chassis' started by eddiedebo, Jun 12, 2019.

  1. eddiedebo Forum Member

    Joined:
    Mar 14, 2011
    Likes Received:
    4
    Location:
    Bicester
    Golf failed it's MOT on the compensator being seized along with a few other small things which I've fixed.

    I took the spring off and the compensator appears to move totally freely. So it's definitely not "seized".

    Firstly I'm wondering if it's just not adjusted correctly. The car is lowered on coilovers but not particularly low. It's roughly the same height as your average rear on lowerings springs.

    But also I'm wondering how freely it should move? It takes no effort to move it. Should it default to a specific position when there's no pressure applied to it?

    Really appreciate some help on this I only have a few more days until the retest.

    Thanks

  2. Tristan

    Tristan Paid Member Paid Member

    Joined:
    Apr 25, 2006
    Likes Received:
    1,286
    Location:
    Southern IRELAND
    Mine is free as, and still works fine.

  3. eddiedebo Forum Member

    Joined:
    Mar 14, 2011
    Likes Received:
    4
    Location:
    Bicester
    So it sounds like if it's not seized and moves freely it shouldn't have been failed. I spoke to the tester straight after the MOT and he said it failed because it was seized. Maybe just mistaken? He was an older guy so can't imagine he's never worked on one of these

  4. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    3,576
    Location:
    Bracknell
    there are internal springs behind the lever, so it should spring fully open (closed) if you manually push the lever all the way. If the lever arm is just flopping about the springs have failed/rusted away and your valve is probably shot too.

    to adjust it the factory way you need a set of pressure gauges hooked inline with the rear brakes. I set it so the slack is just taken out of the spring on level ground, does the job.

  5. Jon Olds Forum Junkie

    Joined:
    Jan 28, 2004
    Likes Received:
    543
    Location:
    United Kingdom
    Got a working one taken off my rally car build, exterior rusty but it passed its last MOT
    Jon

  6. eddiedebo Forum Member

    Joined:
    Mar 14, 2011
    Likes Received:
    4
    Location:
    Bicester
    Yes it's just flopping about when no tension on it so sounds like it knackered.

    They let it through the MOT but I guess it needs to be replaced for the brakes to be safe.

  7. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    3,576
    Location:
    Bracknell
    you might get away with just doing the springs if you can find some that fit, pop the boot off and you can see em. make sure the valve itself moves mfree at least though. I thought about it but just binned it and bought a new aluminium one instead, was doign all the rest of the brakes anyway so not like it saved me any effort bleeding it or whatever

  8. RichardDarrenB Paid Member Paid Member

    Joined:
    Jan 27, 2005
    Likes Received:
    341
    Location:
    United Kingdom
    Resurrecting this rather than a new one as my valve seems to be acting the same as the OPs - with the car on the ground if I push the lever up it moves but doesn't "return" to anything.

    Basically wherever I leave the lever, it stays there.

    Assume this means it's fooked?

    Ta

  9. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    3,576
    Location:
    Bracknell
    yep, it should spring back by itself if you push it. the little return springs can rot away under the rubber boot, possibly replaceable but depends on the condition of the unit whether its worth it

    RichardDarrenB likes this.
  10. RichardDarrenB Paid Member Paid Member

    Joined:
    Jan 27, 2005
    Likes Received:
    341
    Location:
    United Kingdom
    Thought as much, thanks. Just ordered one as probably not worth the hassle of poking about inside my one, it looks like it's been on there a good few years

    PhilRyder likes this.
  11. PhilRyder

    PhilRyder Paid Member Paid Member

    Joined:
    Oct 17, 2020
    Likes Received:
    905
    Location:
    Surrey
    Good call. I extensively dismantled and tried to rebuild/repair one of these and it turned out to be impossible.

    RichardDarrenB likes this.
  12. RichardDarrenB Paid Member Paid Member

    Joined:
    Jan 27, 2005
    Likes Received:
    341
    Location:
    United Kingdom

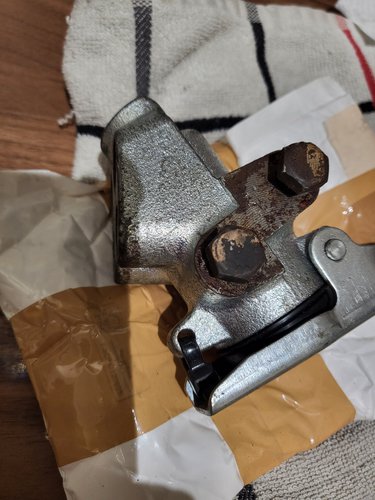

    Compensator valve came today.

    Am I right in saying you bleed the brakes with it like this - cable tied up meaning the valve is fully open?

    Thanks


  13. PhilRyder

    PhilRyder Paid Member Paid Member

    Joined:
    Oct 17, 2020
    Likes Received:
    905
    Location:
    Surrey
  14. Gti1990xyz

    Gti1990xyz Paid Member Paid Member

    Joined:
    Apr 21, 2022
    Likes Received:
    41
    Location:
    Aberdeen UK
    My axle is off for an overhaul.

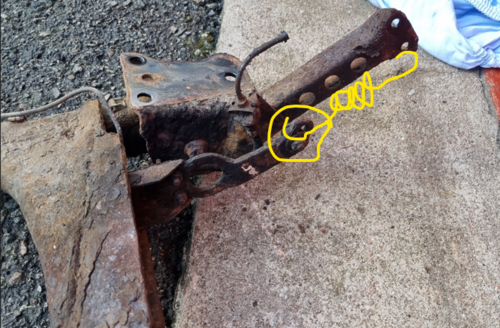

    I noticed there is an adjustment that can be made here within yellow circle that would make spring tighter or looser.

    If the car is lowered like mine has been, then I guess the compensator needs set up like Rubjonnys guage suggestion, I will just do what he says "I set it so the slack is just taken out of the spring on level ground, does the job."



  15. RichardDarrenB Paid Member Paid Member

    Joined:
    Jan 27, 2005
    Likes Received:
    341
    Location:
    United Kingdom
    I've not looked at mine yet but plan to set it up as per RJ suggestion.

    I assume that circled nut is loosened and slid to tighten or loosen the spring?

  16. Gti1990xyz

    Gti1990xyz Paid Member Paid Member

    Joined:
    Apr 21, 2022
    Likes Received:
    41
    Location:
    Aberdeen UK
    Yes, circled area has a ovalled slot for I assume adjustment to spring tension.

  17. RichardDarrenB Paid Member Paid Member

    Joined:
    Jan 27, 2005
    Likes Received:
    341
    Location:
    United Kingdom
    Cool. Looks pretty straightforward then

  18. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    3,576
    Location:
    Bracknell
    yeah unless you have/can be arsed with plumbing in pressure gauges inline with the rear brakes just take the slack out. you can dial in a little more rear braking if you like

    RichardDarrenB likes this.
