    This is a photo guide on replacing the thermostat housing on the 2.0 FSI engine. In my case this is on a 2004 Golf MK5.

    The photos and descriptions aren't comprehensive but my aim here is to just give you a good idea on what's involved.


    Symptoms

    In my case the thermostat was probably stuck partly open. The coolant temperature was poorly regulated and would be very slow to reach operating temperature (centre point on gauge), if it ever did.

    Procedure

    Remove the top cosmetic engine cover. Next, we pull this cover upwards to remove, unclipping any tubes that might be secured to it.

    Remove this pipe.

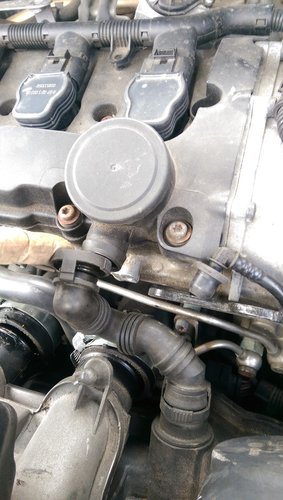

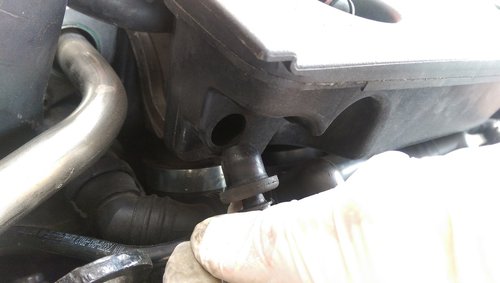

    Remove this vacuum tube from nipple shown. Inspect the end of the vacuum tube for splits and cut it back or replace completely if damaged. In my case I found that a few of these vacuum tubes were split at the ends.

    Remove.

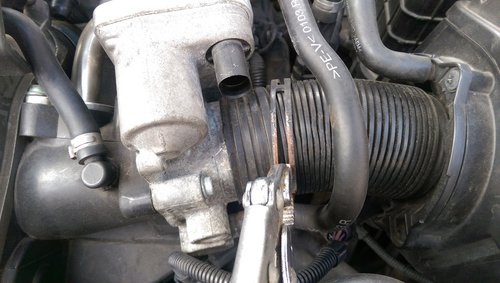

    Unclip and retract the airbox ducting from the electronic throttle body.

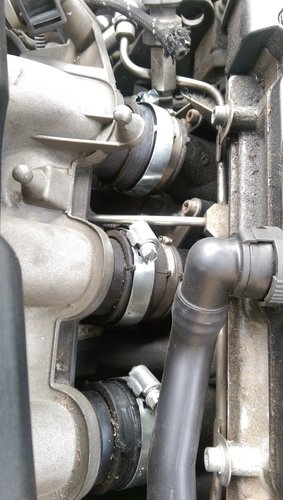

    The plastic inlet manifold assembly needs to be detached from the inlets on the cylinder head. In my case this is simple because the previous owner has replaced the factory items with Jubilee Clips. If you still have original clips fitted then you may need the appropriate hose clamp tool.

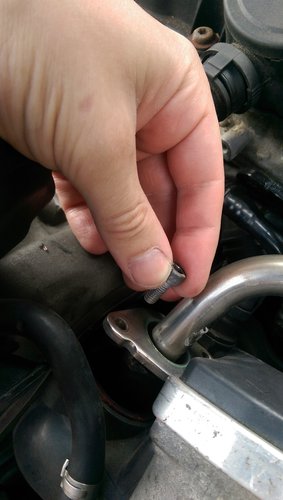

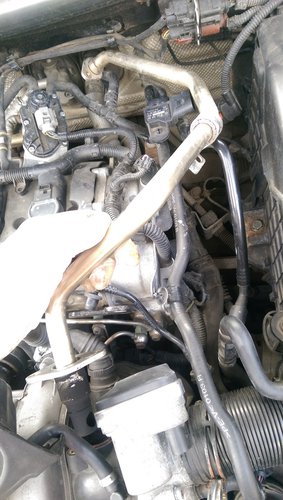

    It is now necessary to remove the rigid pipe that connects between the exhaust manifold area and the inlet system. (I don't know the purpose of this pipe at the moment, so I will assume that it is something to do with recirculating exhaust gas for emissions control.) There are two bolts securing the flange at each end. At the exhaust manifold end, there is a little gasket which you must be careful not to lose. The pipe is also secured to the head with a bolt. You must remove this pipe completely. Do not attempt to remove the inlet system by just forcing this pipe out of the way slightly.
    IMAG3035.jpg IMAG3036.jpg

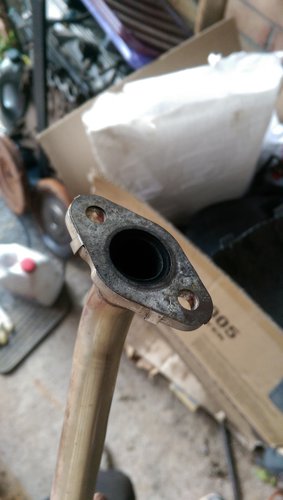

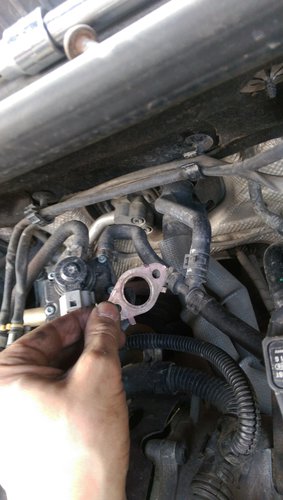

    This is the gasket you'll want to avoid losing.
    IMAG3061.jpg IMAG3059.jpg

    Lift pipe out completely.

    Remove that.

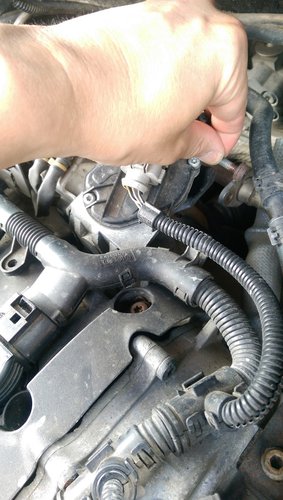

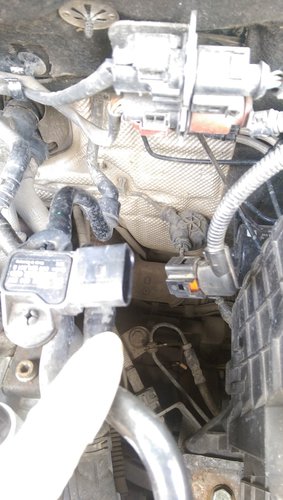

    Unplug.

    Unclip.

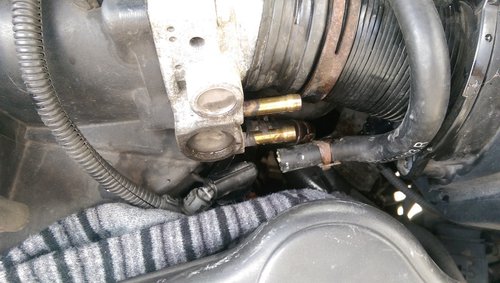

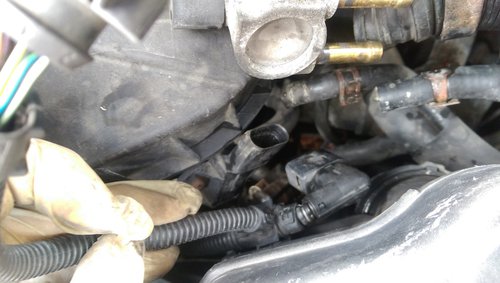

    Remove the two small bore coolant hoses from the throttle body assembly.

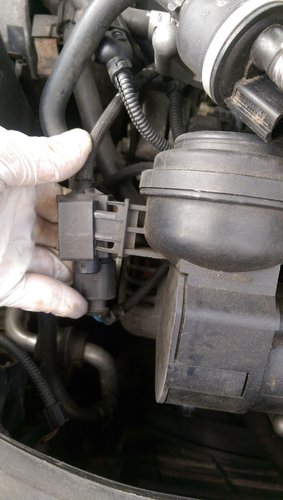

    Unplug connector.

    Remove.

    By this point you should now be able to lift up and remove the entire plastic inlet system including the throttle body. To do this, there are also a couple of securing nuts for it right at the front near the radiator. I did not photograph these.

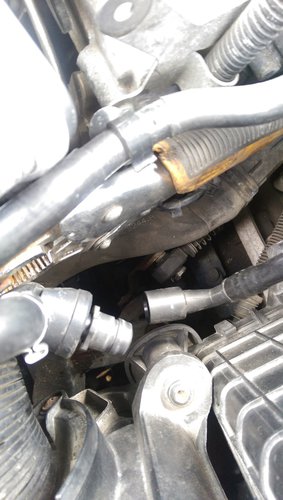

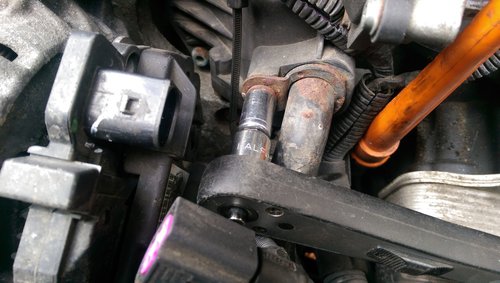

    The next step is to start removing bolts that secure the rigid coolant pipe going around the block. This is necessary because it needs to come forward a few inches to allow the thermostat housing to be retracted.
    IMAG3045.jpg IMAG3046.jpg IMAG3047.jpg

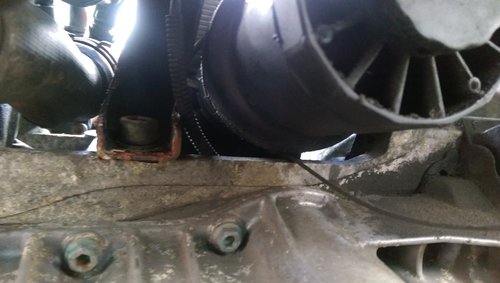

    The next nuisance is that you need to get under the front, remove the undertray, and look upwards at the metal bracket that secures the coolant pipe and various other bits to the block. You need to remove a bolt that secures the coolant pipe to the bracket. You then need to remove two bolts which secure the bracket to the block. This allows the bracket to be moved forward an inch or two to make room for thermostat housing replacement. Wish you'd not started this job yet?
    IMAG3051.jpg IMAG3052.jpg

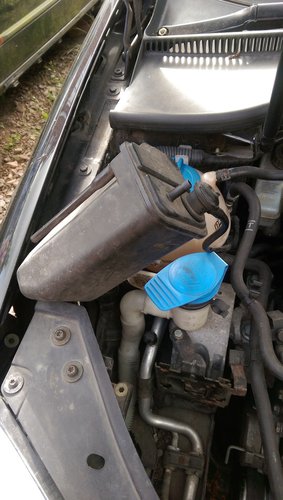

    Now pull this sucker upwards and out.

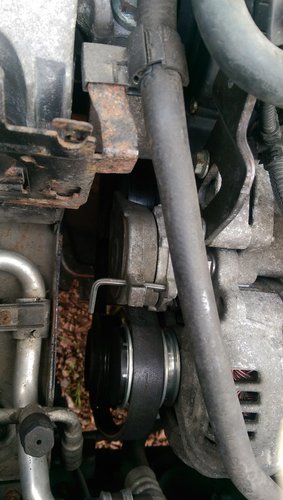

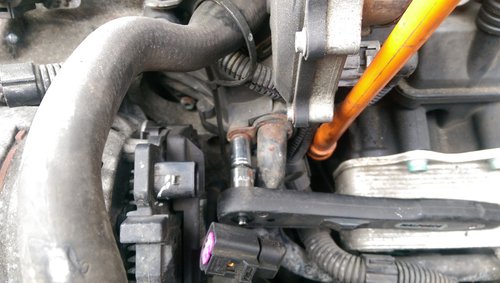

    Use a spanner to rotate the alternator belt tensioner and use an Allen key to lock into position. Remove the two large bolts that secure the alternator in place. Lift alternator out. There is no need I found to disengage the wiring from the alternator because you can just rest the alternator nearby out of the way. Just ensure the battery is disconnected.

    Retract the rigid coolant pipe from the thermostat housing, and bring that pipe a few inches forward.

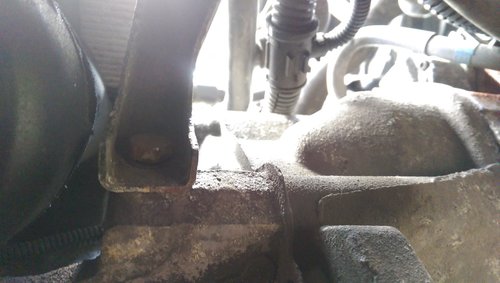

    Remove the two bolts securing the thermostat housing to the block. Bring the thermostat housing forward.

    Disengage the coolant hose entering the top of the thermostat housing.

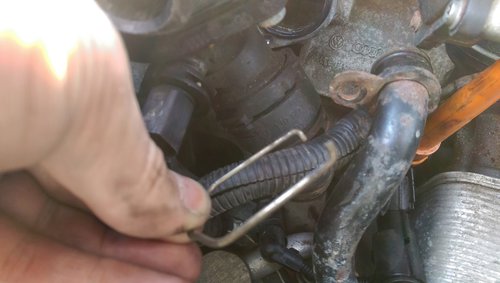

    The coolant hose entering the bottom of the thermostat housing uses a push-fit connector. Remove this metal clip and then use some force to disengage the thermostat housing from the connector.
    IMAG3056.jpg IMAG3058.jpg

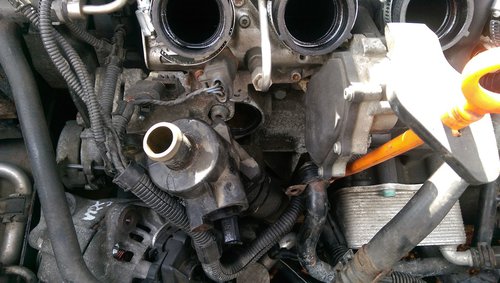

    Now the old thermostat housing is removed, as you can see on the lower left.


    At this point I'm afraid my pictures finish, but from here it is essentially the procedure in reverse to reassemble everything.

    Before fitting your new thermostat housing, I suggest lightly sanding the area on the block that the large O-ring seals against, just to remove powdery coolant residue and corrosion.

    Last edited: Jul 19, 2015
    HPR and Toyotec like this.
  2. MUSHY 16V

    MUSHY 16V Moderator Staff Member Moderator

    Joined:
    Jan 26, 2008
    Likes Received:
    800
    Location:
    aberdeen
  3. Toyotec

    Toyotec CGTI Committee - Happy helper at large Admin

    Joined:
    Jul 26, 2006
    Likes Received:
    3,324
    Location:
    Creating Pfredstarke
    Thanks for taking the time and effort to share.

    HPR likes this.
  4. greips New Member

    Joined:
    Jan 24, 2018
    Likes Received:
    0
    this is exactly what i need, however i dont seem to be able to view the photos. can someone advise why this may be the case ?

  5. oldnick

    oldnick Paid Member Paid Member

    Joined:
    Apr 27, 2009
    Likes Received:
    86
    Location:
    Farnsfield, Notts
    Photobucket decided in their wisdom to charge people 400 to use the system, and hey presto forums worldwide went blank.

    The club can now host new photos for paid members, but salvaging old threads is a massive task.

  6. greips New Member

    Joined:
    Jan 24, 2018
    Likes Received:
    0
    thanks for the heads up nick.

    guess I will tackle that Thermostat blindy !!! lol

  7. Beni New Member

    Joined:
    Sep 25, 2019
    Likes Received:
    0
    Wiso kann ich keine bilder zechen

  8. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    3,342
    Location:
    Bracknell
    Beni, pictures fixed :)

  9. Beni New Member

    Joined:
    Sep 25, 2019
    Likes Received:
    0
    V
    [QUOTE = "rubjonny, Beitrag: 2480743, Mitglied: 735"] Beni, Bilder behoben :)[/ QUOTE]

  10. Beni New Member

    Joined:
    Sep 25, 2019
    Likes Received:
    0
    Dankeschön

  11. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    3,342
    Location:
    Bracknell
  12. Beni New Member

    Joined:
    Sep 25, 2019
    Likes Received:
    0
    Hallo
    Ich brauche montageanleitung für
    00258-Magnetventil 1 (N88)
    Golf 5 2.0 fsi automatikgetribe
    Es waren große Hilfen, wenn jemand sowas hatt?

  13. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    3,342
    Location:
    Bracknell

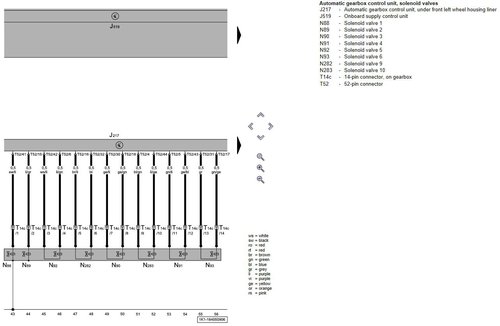

    Hello, looking at the wiring diagram the N88 valve is on or inside the gearbox I think?

    Beni likes this.
  14. Beni New Member

    Joined:
    Sep 25, 2019
    Likes Received:
    0
    hi, I suspect that is in gear

  15. Beni New Member

    Joined:
    Sep 25, 2019
    Likes Received:
    0

  16. costel1969

    costel1969 Paid Member Paid Member

    Joined:
    Jun 4, 2009
    Likes Received:
    602
    Location:
    Canada & Ireland
    and for those you watching in black and white....
    I need mounting instructions for
    00258 solenoid valve 1 (N88)
    Golf 5 2.0 fsi automatic
    It was great help if someone had something?

  17. Beni New Member

    Joined:
    Sep 25, 2019
    Likes Received:
    0
    Ich habe nicht verschtenden was du mainst

  18. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    3,342
    Location:
    Bracknell
  19. costel1969

    costel1969 Paid Member Paid Member

    Joined:
    Jun 4, 2009
    Likes Received:
    602
    Location:
    Canada & Ireland
    Kein Problem Beni, ich habe nur übersetzt, um Rubjonny Zeit für die Beantwortung Ihrer Frage zu sparen - er ist wirklich ein VW-Genie
