OEM MK4 management wiring => Mk1/2/3 harness install FAQ (Now with added dieselness!)

Discussion in 'Engines' started by rubjonny, Nov 8, 2013.

Page 39 of 41
  1. VEEDUBV5

    veedubv5 New Member

    Joined:
    Dec 10, 2010
    Likes Received:
    1
    Legend mate, thanks a million

    veedubv5, Jul 21, 2022
    #761
  2. ROCCO_BALBOA

    Rocco_Balboa Paid Member Paid Member

    Joined:
    Aug 30, 2017
    Likes Received:
    5
    Location:
    Glasgow
    Try demon tweeks for your 10x1 oil t-piece
    Think mines was about 20 quid

    Rocco_Balboa, Jul 22, 2022
    #762
  3. NARI_VW

    Nari_vw New Member

    Joined:
    Aug 31, 2021
    Likes Received:
    0
    @rubjonny hey bro have a question
    I’m trying to use a tach adapt for a 3.6 swap but I can figure out where I can get the RPM signal?

    Nari_vw, Jul 25, 2022
    #763
  4. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,992
    Location:
    Bracknell
    rubjonny, Jul 25, 2022
    #764
  5. NARI_VW

    Nari_vw New Member

    Joined:
    Aug 31, 2021
    Likes Received:
    0
    Engine came from a 2007 Passat and I have already a tach adapter but I’m not sure where I get the rpm signal from coils or from cams sensor ??

    Nari_vw, Jul 25, 2022
    #765
  6. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,992
    Location:
    Bracknell
    ok you'll probably find as I say, rpm signal is over can-bus so there is no ecu pin for it. so you need a can-bus type tach adaptor

    if there was an ecu pin it would be ecu pin 37 same as a mk4 r32

    there is a way to tap into coilpack triggers to get rpm but its not recommended

    rubjonny, Jul 25, 2022
    #766
  7. NARI_VW

    Nari_vw New Member

    Joined:
    Aug 31, 2021
    Likes Received:
    0
    R36’s ECU No pin 37 showed in the Ecu (no cable)
    On a r32 ECU pin 37 wht/gry go to some
    winter driven program bottom (if equipped)
    engine code bud

    Nari_vw, Jul 25, 2022
    #767
  8. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,992
    Location:
    Bracknell
    no pin 37 is rev counter on MK4 R32, but it would only be used by the climatronic panel as the cluster are all canbus by the time R32 was fitted ;)

    the earlier 24v ECU would have 37 wired to the cluster as well as climatronic

    since you have no pin at all, chances are you need one of those canbus modules I linked to. around MK5 era the ecu pins are deactivated, aslo in US market the ecu tend to be canbus only for MK4 v6 also

    rubjonny, Jul 25, 2022
    #768
  9. VEEDUBV5

    veedubv5 New Member

    Joined:
    Dec 10, 2010
    Likes Received:
    1
    @rubjonny
    Hi mate

    One more technical question if thats ok?

    Regarding clutch switch, whats the conditions? Should it be open or closed circuit when Not pressed down?
    I know it should get +ve feed to ecu. But when pressed or when depressed.

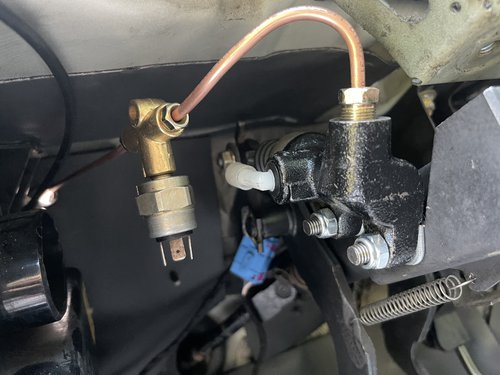

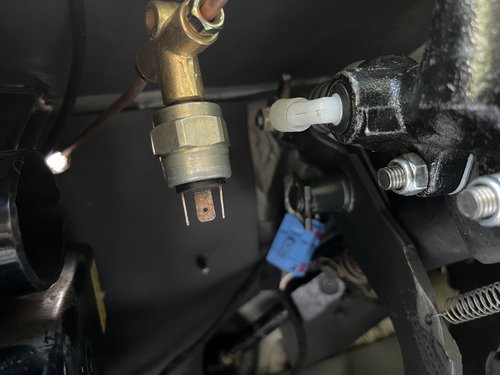

    am using old mk1 brake switches installed on the clutch hydro pipe to slave cylinder as in picture.

    thanks mate


    Last edited: Aug 1, 2022
    veedubv5, Aug 1, 2022
    #769
    dodgy likes this.
  10. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,992
    Location:
    Bracknell
    12v when NOT pressed,so opposite of a brake light switch :)

    If you want to bypass clutch short wire to 12v. If you want to bypass brake switch 12v to the white/yellow, and earth the black/red (ECU sees earth thru the bulbs when wired properly)

    rubjonny, Aug 1, 2022
    #770
  11. VEEDUBV5

    veedubv5 New Member

    Joined:
    Dec 10, 2010
    Likes Received:
    1
    ok excellent, i use the other terminal on the switch to give it 12v when not pressed.

    thank you again mate.

    veedubv5, Aug 1, 2022
    #771
  12. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,992
    Location:
    Bracknell
    Cool idea btw, not seen it down that way before :)

    If you check ECU measuring blocks you can check the pedal condition to make sure all is well

    rubjonny, Aug 1, 2022
    #772
  13. VEEDUBV5

    veedubv5 New Member

    Joined:
    Dec 10, 2010
    Likes Received:
    1
    thanks mate

    veedubv5, Aug 1, 2022
    #773
  14. JOERI

    Joeri New Member

    Joined:
    Aug 3, 2022
    Likes Received:
    0
    Hello

    I've bought a mk3 golf with a 1.8t AQX. It runs, all the lights work, the dash shows when the lights are on. Can I make the speedo and the rev counter work?

    It has a t14 plug, so I should connect pin 2 to G1/4 and pin 10 to G1/11 if I'm right? Will this make the speedo work?
    What about the rev counter? It's not mentioned fot the t14.

    Thank you for helping

    Joeri, Aug 3, 2022
    #774
  15. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,992
    Location:
    Bracknell
    heyup yes you need to wire those 2 pins on the t14a if you want to use the mk4 wiring in the sensor harness for the speedometer sender, or you could wire it direct if you prefer. AQX is a SEAT engine though, are you using the original SEAT harness or a MK4 one? If its SEAT theres a big round plug as well

    the rev counter is on ecu pin 37, on a mk3 you can run that direct to G1/12 and it'll work with your cluster no tach adaptors required :)

    rubjonny, Aug 4, 2022
    #775
  16. JOERI

    Joeri New Member

    Joined:
    Aug 3, 2022
    Likes Received:
    0
    I am using the original SEAT harness, there is a big round plug. Do I need to do something with it?

    Joeri, Aug 4, 2022
    #776
  17. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,992
    Location:
    Bracknell
    cool just thought I'd check. the round plug doesnt need touching if the engine runs :)

    on the T14a:
    10 - speedo sensor pin 1 - G1/4 if using (ignition live)
    11 - speedo sensor pin 2 - G1/11 if using (speed signal)
    12 - speedo sensor pin 3 - earth

    rubjonny, Aug 4, 2022
    #777
  18. DAMIENC

    DamienC New Member

    Joined:
    Nov 21, 2021
    Likes Received:
    0
    So apart from an accelerator pedal issue some months back my AUQ in a Corrado has run well from this guide. Unfortunately the following arose recently, normally from a hot start it will idle very lumpy and struggle to accelerate cleanly and then after a few mins the accelerator will do nothing. If I clear the codes it's as good as new until the next hot start. Codes as follows

    17972 Throttle actuator J338 under voltage during basic setting p1564 intermittent

    17705 pressure drop between Turbo and Throttle valve p1297

    17579 Angle sensor 2 Throttle motor g188 not a plausible Signal p1171

    17608 Boost pressure control valve mech malfunction N249

    18010 power supply terminal 30 voltage too low p1602 intermittent

    17987 Throttle actuator J338 adaptation not started p1579

    So it seems Throttle actuator an issue but possibly power or wiring related then there's diverter or N249 valve involved. Anyone got any advice on how to best go at this? Thanks

    DamienC, Sep 18, 2022
    #778
  19. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,992
    Location:
    Bracknell
    18010 suggests ecu relay issue or power to it, so start there.

    looks like it may need throttle looked at but possibly this is down to under voltage from relay re: 17972

    may have a boost leak as well according to 17705

    rubjonny, Sep 20, 2022
    #779
    DamienC likes this.
  20. NARI_VW

    Nari_vw New Member

    Joined:
    Aug 31, 2021
    Likes Received:
    0
    Hey Jhonny question on swaps 3.2,3.6 it’s ok use
    428 relay for main power ecu and coils? And for the rest of the accessories,Which relay do you recommend to have enough and constantly power??
    I know For fuel pump main relays is 167 but for the others components
    And I’m talking about doing a universal wiring his own relay and fuse box not on a ce1-2

    Nari_vw, Sep 20, 2022
    #780
