Tig welding

Discussion in 'Tools, Equipment & Fasteners' started by MUSHY 16V, May 16, 2015.

  1. MUSHY 16V

    MUSHY 16V Moderator Moderator

    Joined:
    Jan 26, 2008
    Likes Received:
    793
    Location:
    aberdeen
    tig welding is the best welding process that any DIY car nut can have at his disposal
    as the filler wire is hand fed it is quite a skilled process that is maybe not for everyone
    but by the nature of the process it gives very good and strong welds

    [​IMG]

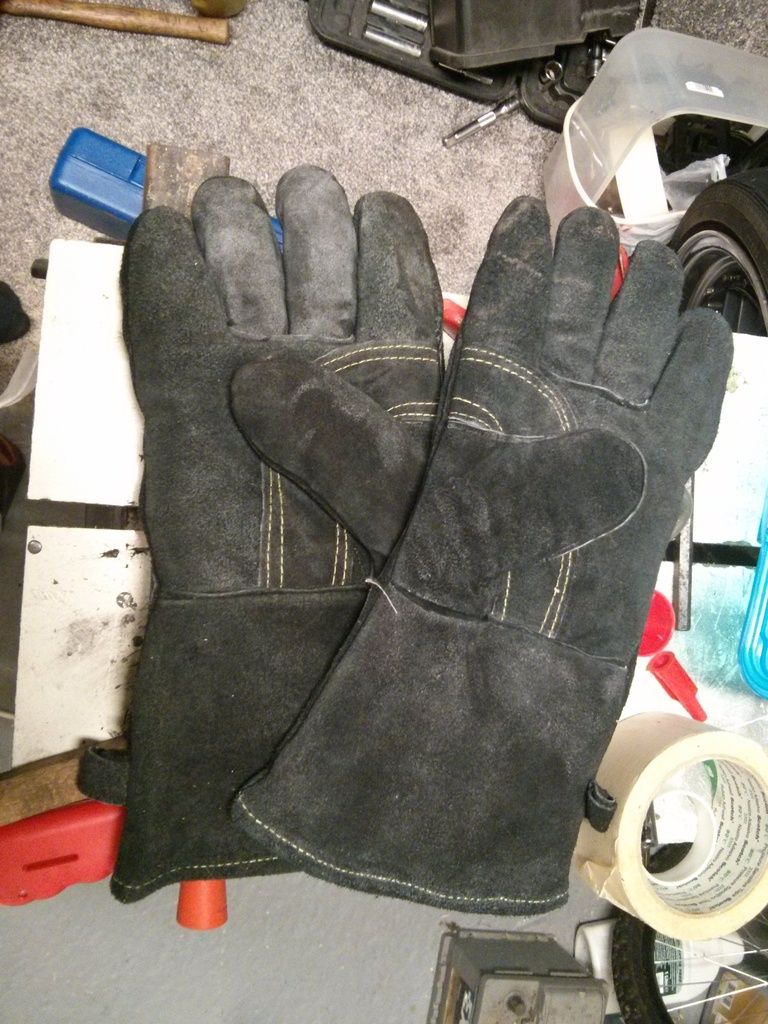

    welding gloves this ones are a bit on the thick side for tig welding
    most tig glove are thin so you can feel the filler wire to make it easier to feed the wire
    i'll add some pictures of the ones i have when i find them

    the ones above i use for the BBQ:)


    [​IMG]

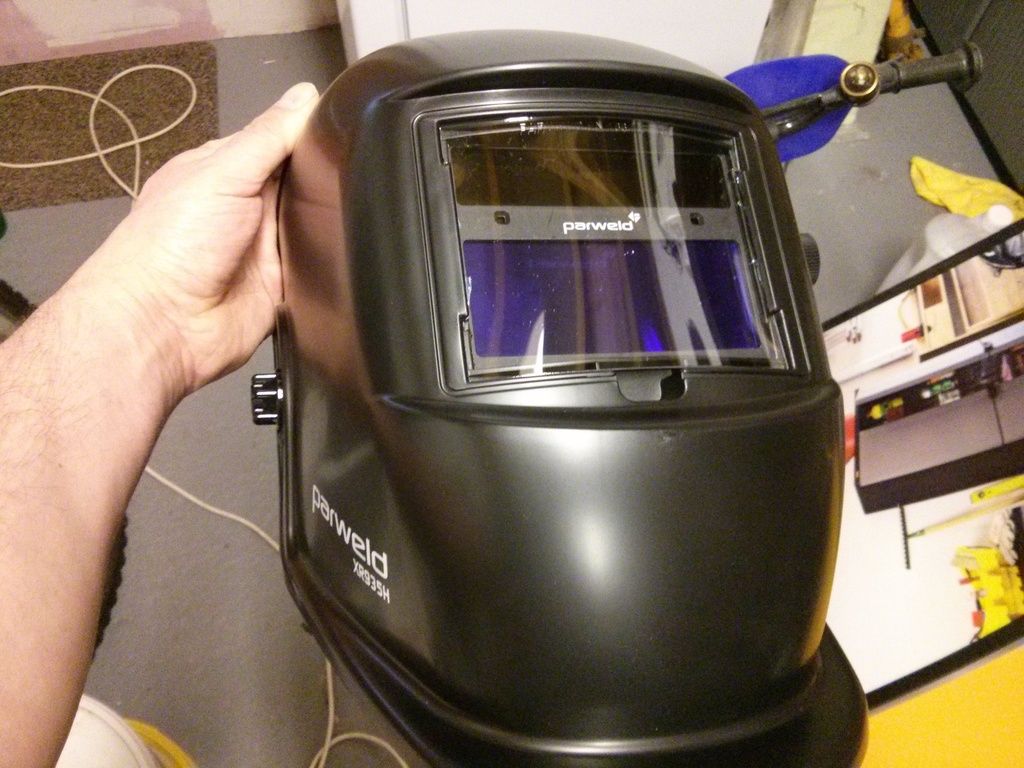

    this is the welding mask i have
    it's made by parweld and is very good value for money and is on par with some of the more expensive masks
    it's as good as the 3m speedglas one i use at work for 38


    [​IMG]

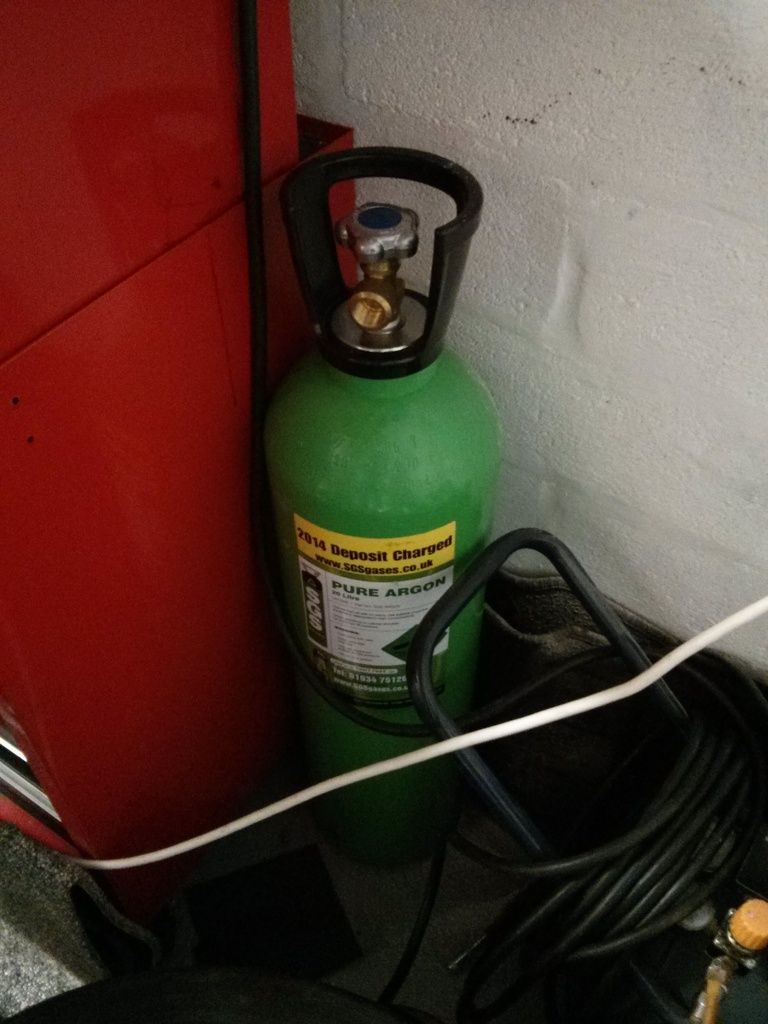

    now you going to need some welding gas pure argon in this case
    the one i have here is a rent free one and cost 96 + 60 deposit for a 20l cylinder maybe not the cheapest but was handy for me as the place is only 5 miles from my house
    if i start to use a lot i'll look into cheaper options

    if you're on volkszone they have a deal on with BOC

    [​IMG]

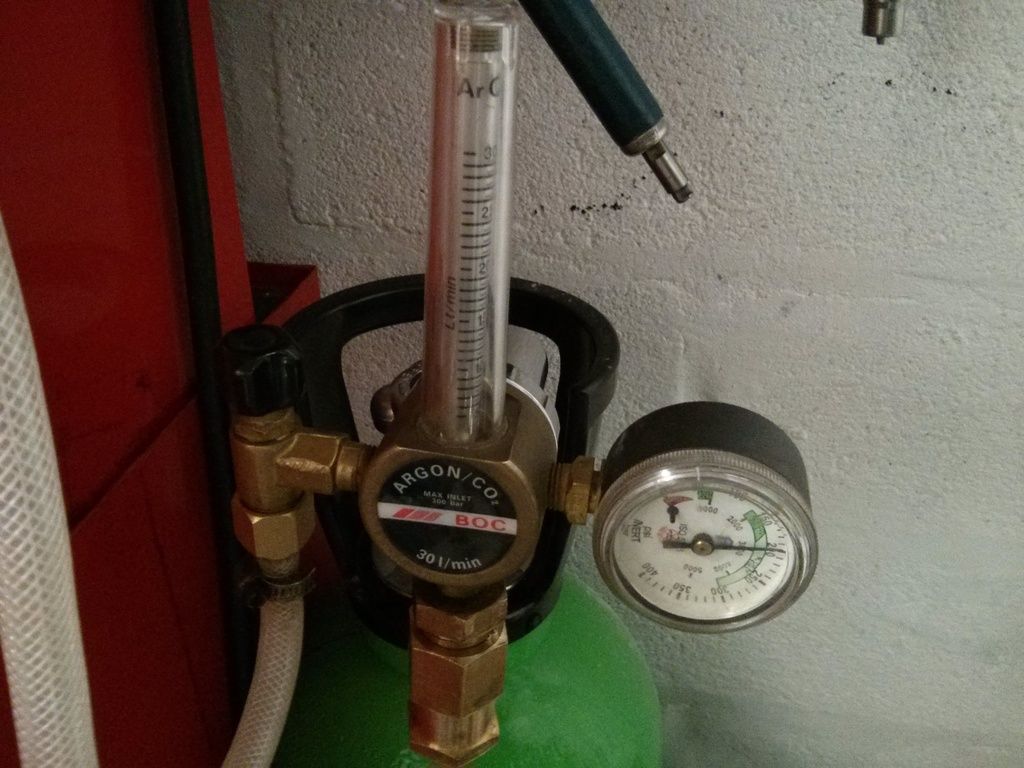

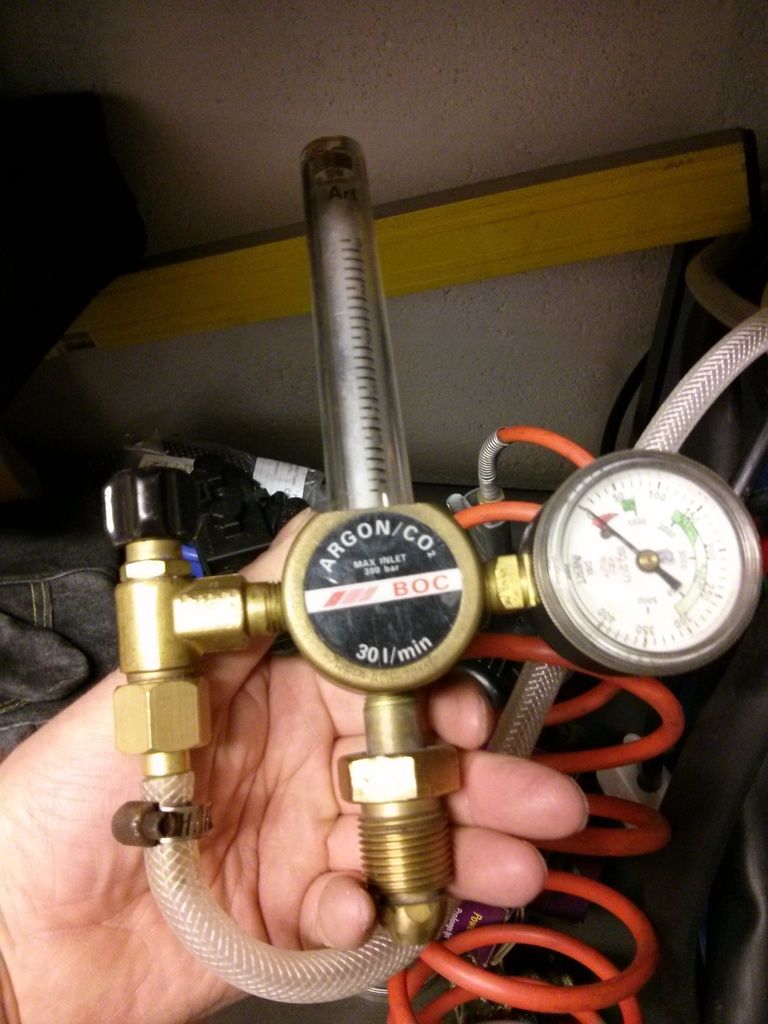

    now you're going to need a regulator this is quite good as it has a built in flow meter
    and saves gas as it gives you a better idea of how much gas you are using


    [​IMG]

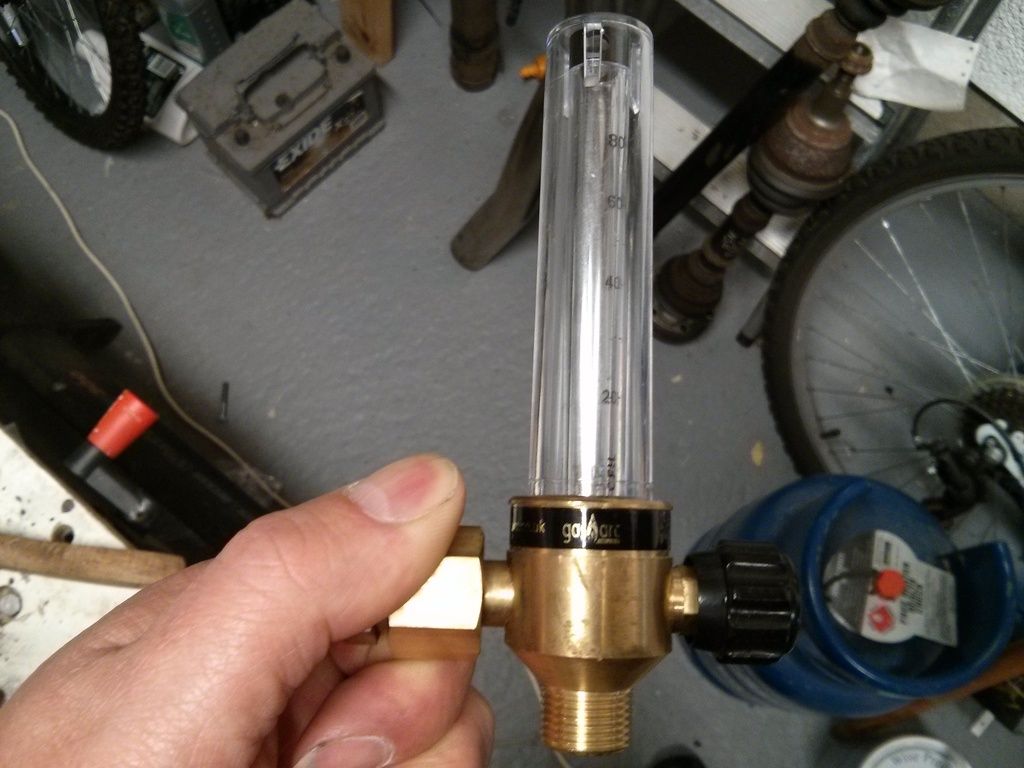

    this is a flow meter you can add to a regulator


    [​IMG]

    now most hobbie gas cylinders are side exit so you may need a 90 degree adaptor if your regulator was for a boc cylinder


    [​IMG]

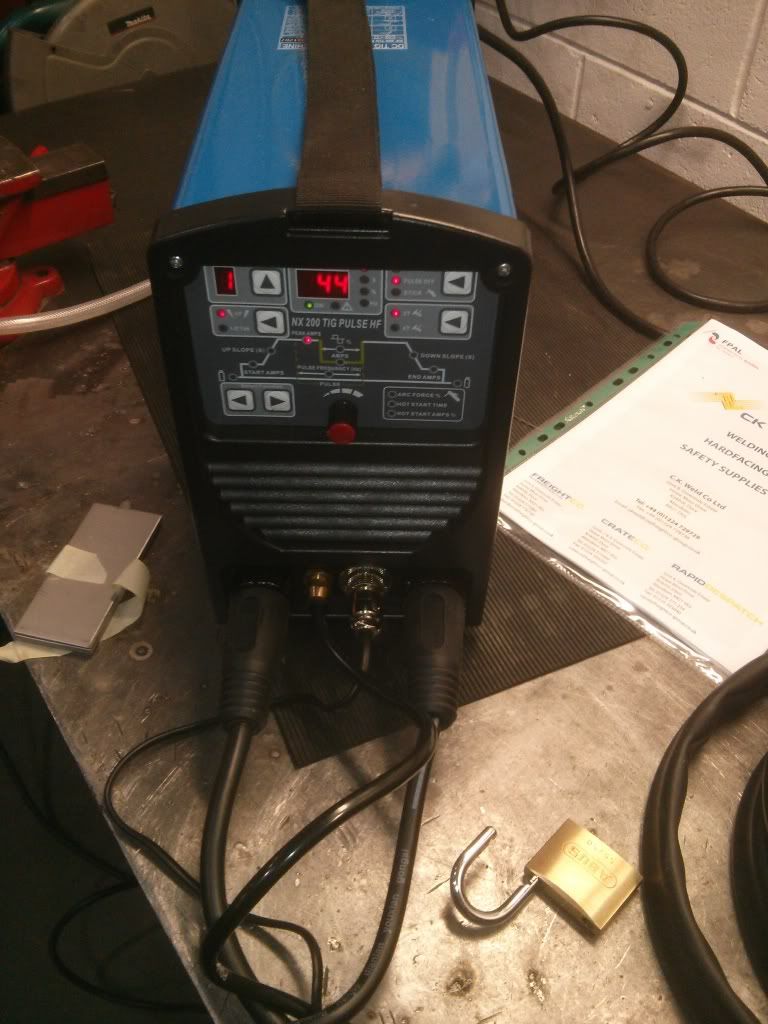

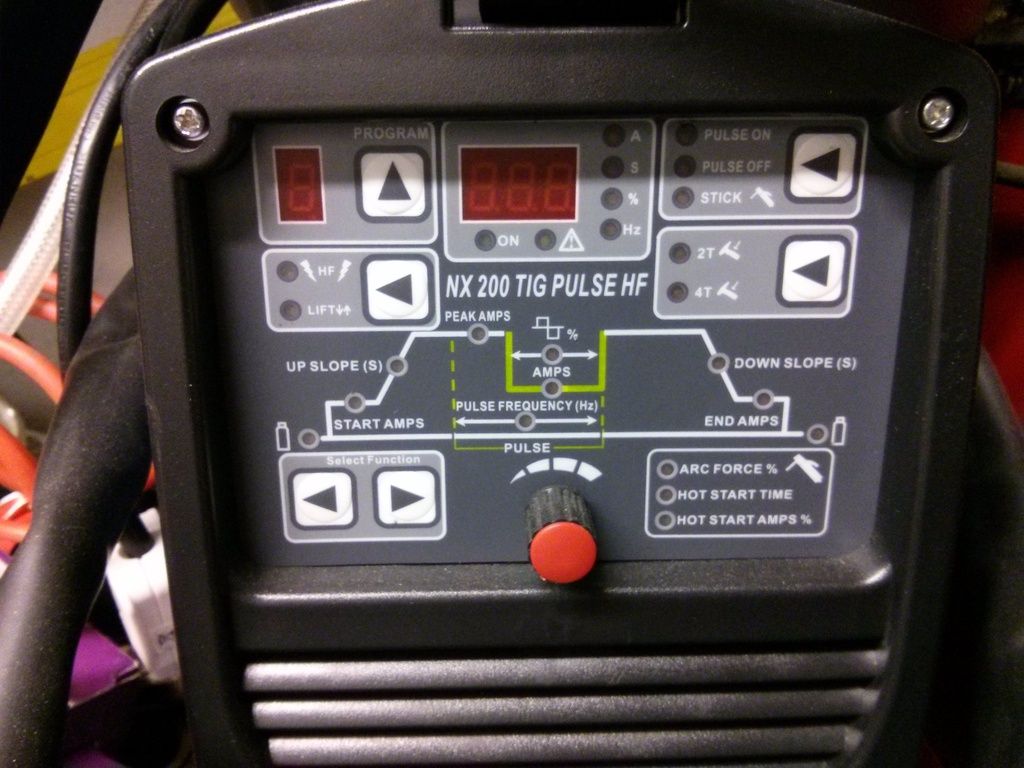

    this is the welder i bought last year it's a nextig welder i got tigmig on ebay
    this is a almost identical welder to r-type ones


    [​IMG]

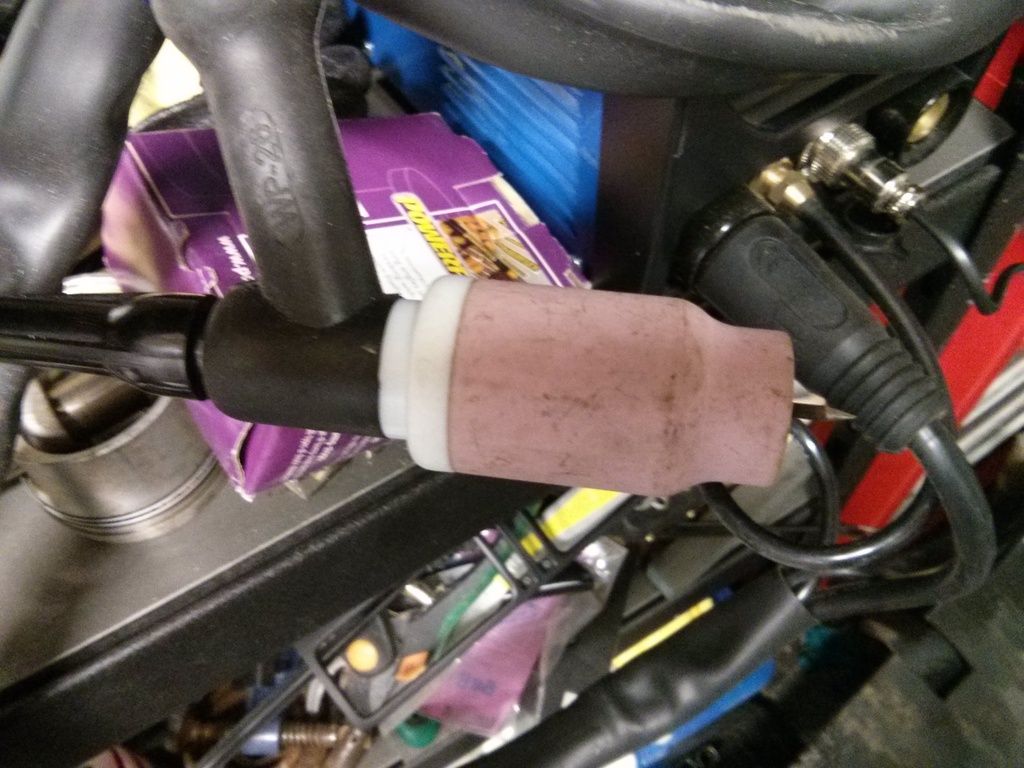

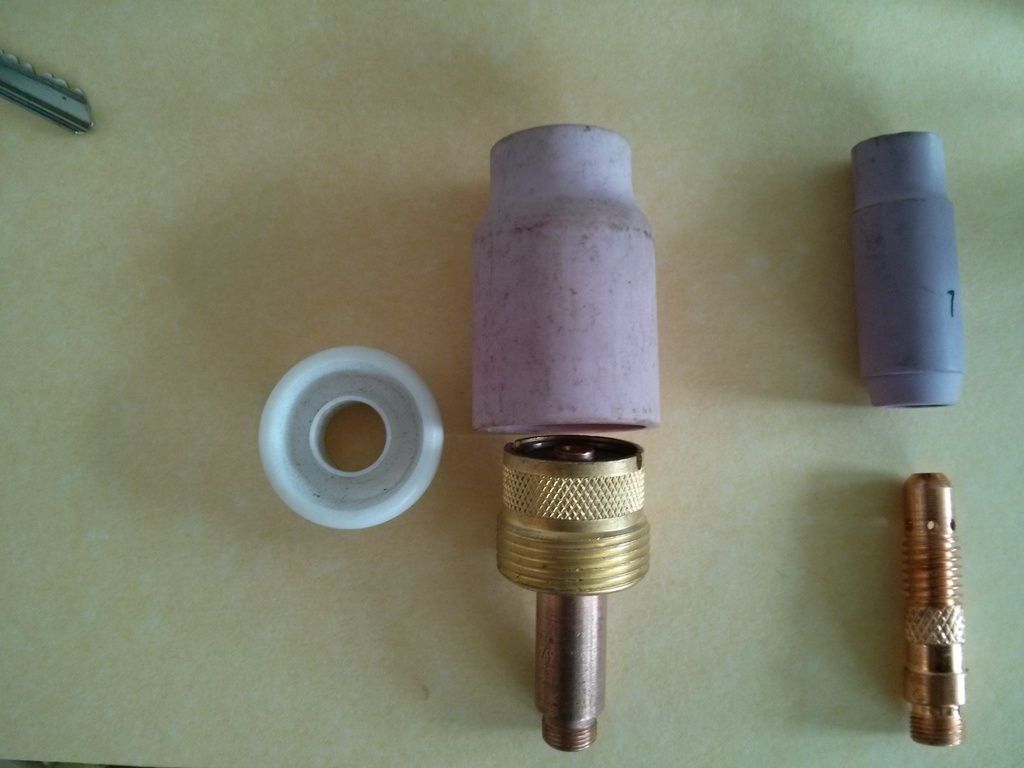

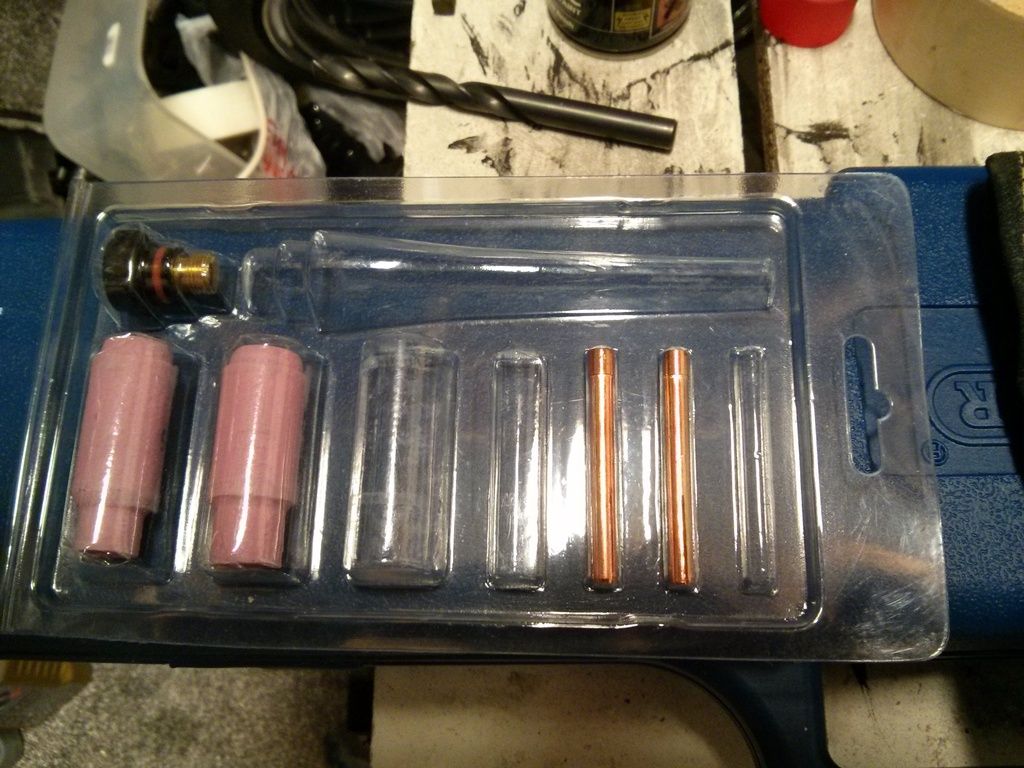

    now if you look to the right you will see one the ceramic that came with the welder
    and on the left i what i'm using gives a lot better shield of gas good if you need to have the tungsten out far to get into a tight space
    also gives a better weld and you will use less gas this quit big lens and ceramic you get smaller ones

    [​IMG]
    more stuff that came with the welder

    [​IMG]

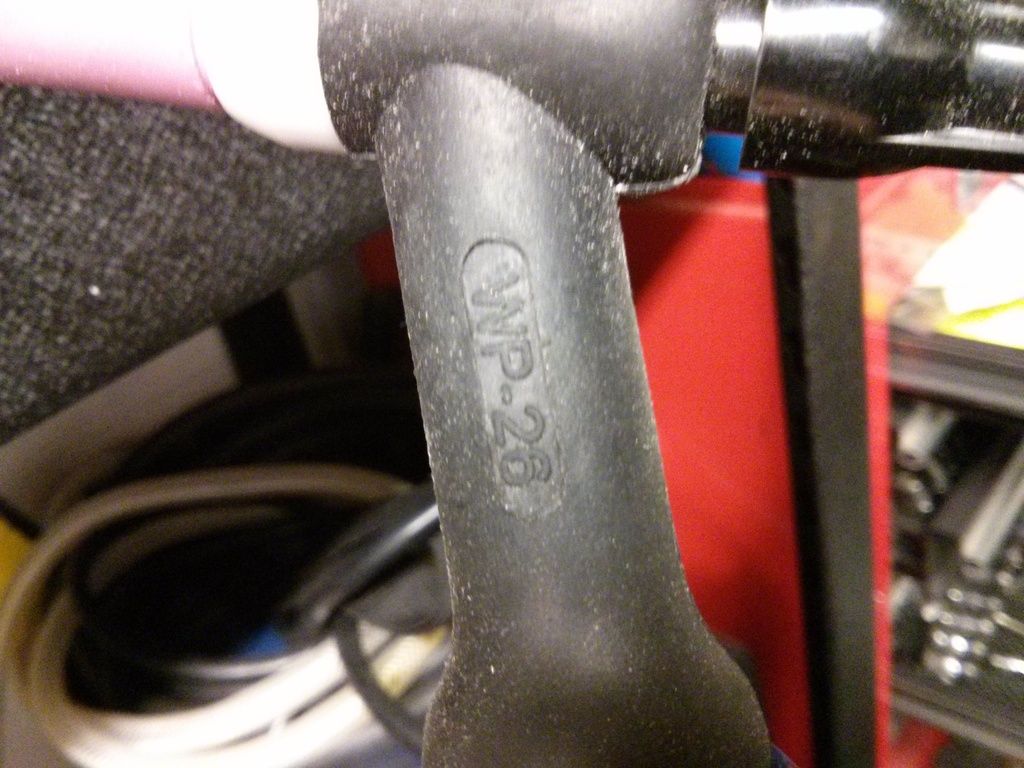

    this is the torch and the number you will need to know when buying consumables
    this a wp 26
    17 18 and 26 use the same parts

    parweld or weldcraft are well known makes


    [​IMG]

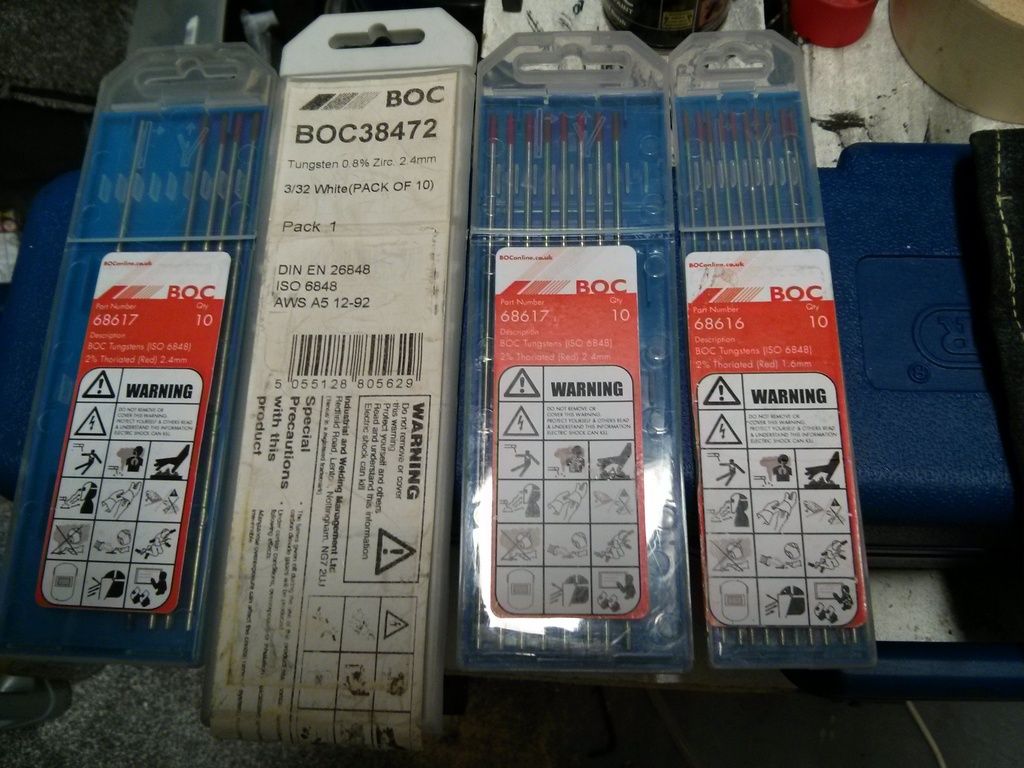

    this is the tungstens the red ones are for steel the white ones are for ac and aluminum

    [​IMG]
    and ready to start welding

    [​IMG]

    [​IMG]

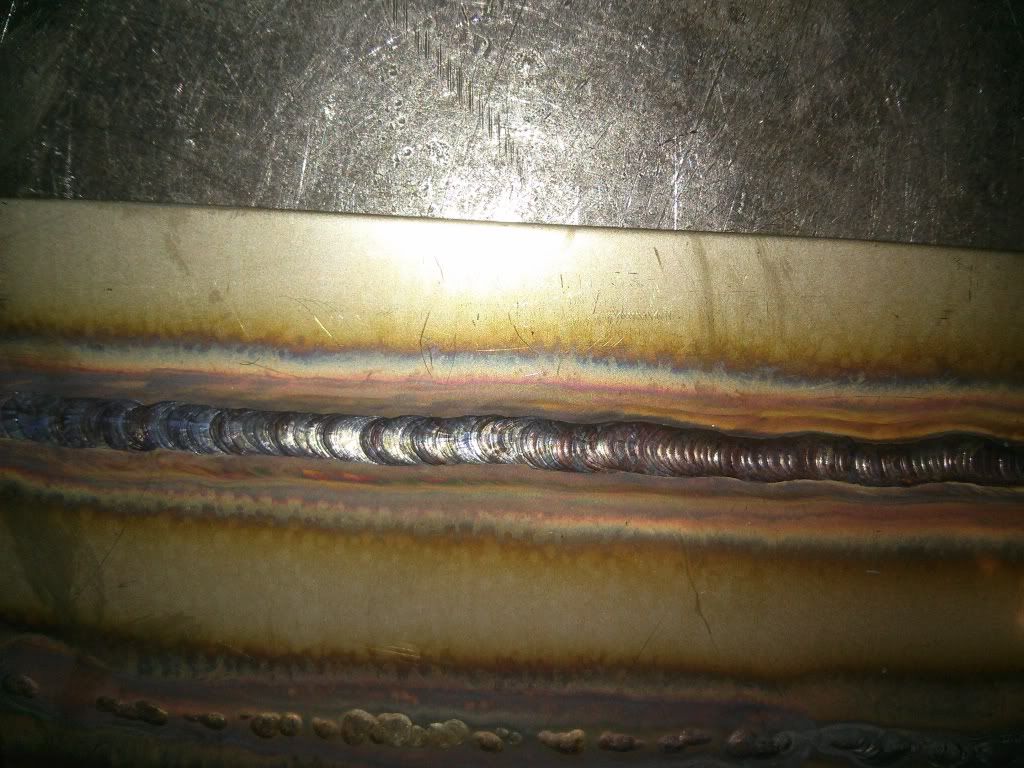

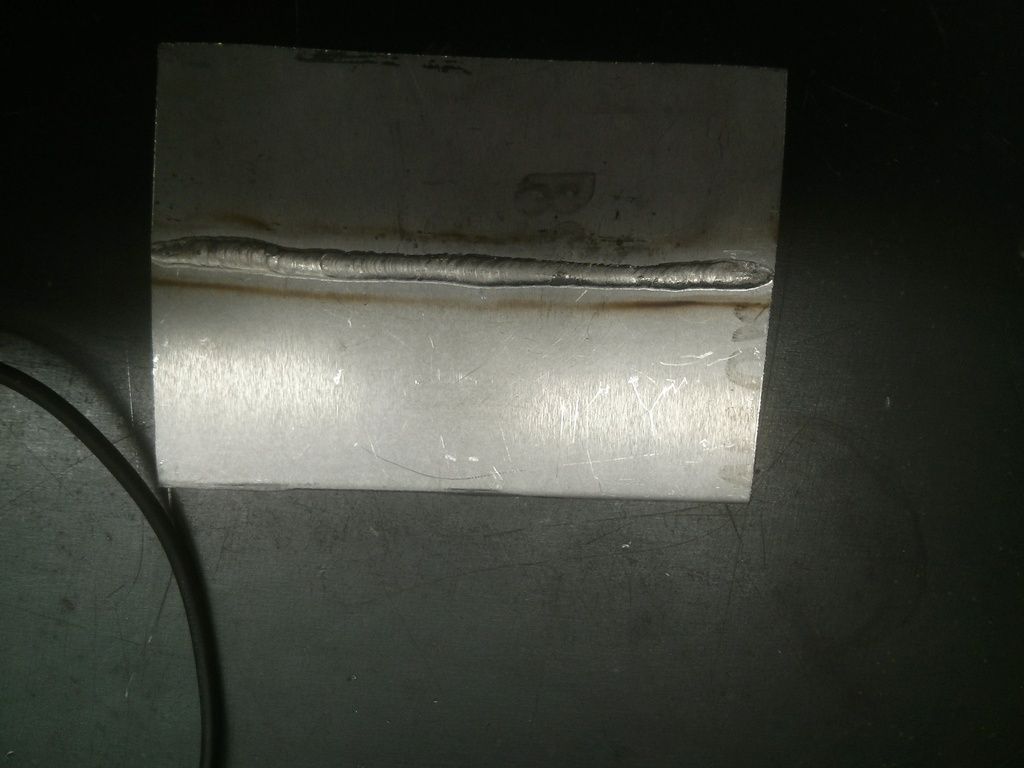

    this is a run of weld over some plate to try the welder out

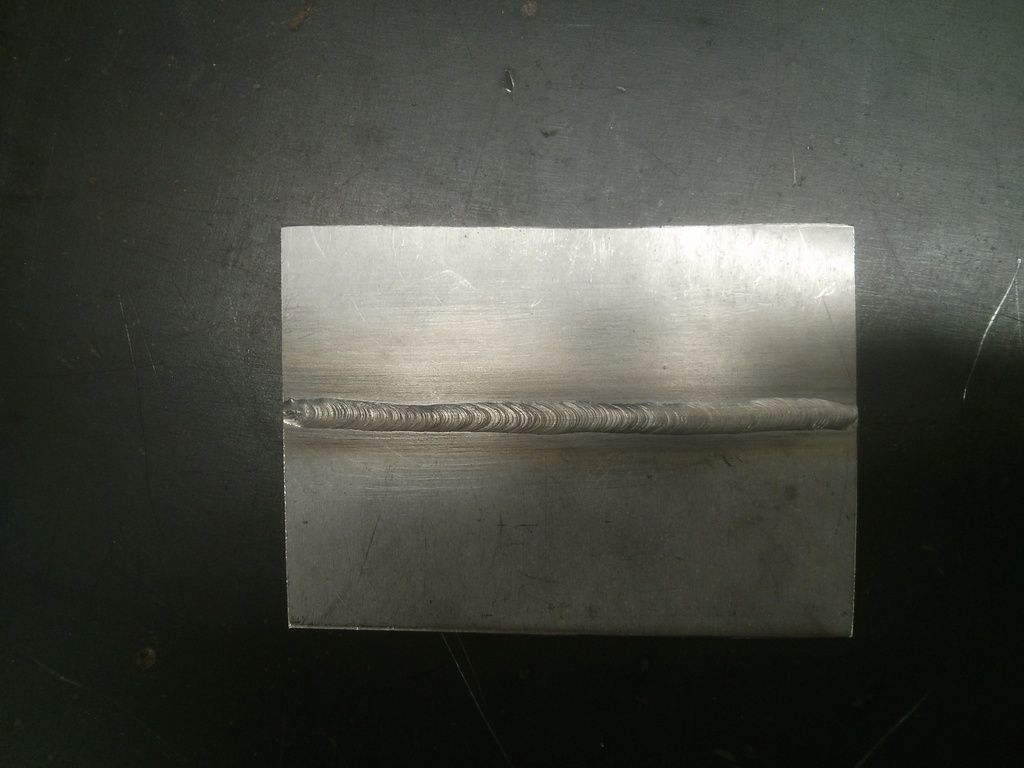

    the next two are of a test piece i did
    just two plates welded together
    either stainless steel or inconel think it's the later


    [​IMG]


    [​IMG]

    next i'll add how to rewire a foot pedal to work with this weder

    feel free to add any of your own experiences and tips if you like

    this is just a start i'll edit this and add to it
    and remove any spelling mistakes i make as i go

    Last edited: May 16, 2015
    HPR, G60Dub, WillG and 6 others like this.
  2. Nige

    Nige Paid Member Paid Member

    Joined:
    Dec 12, 2006
    Likes Received:
    2,134
    Great writeup !

    I either linger too long and end up with far too much penetration and bib blobs on the back of whatever I`m welding, or struggle to use both hands at once. I usually end up tucking my elbows in to steady my hands, which is fine until I reach the end of my `elbow arc` and can`t reach any further lol

    Certainly needs practice and yours are really uniform :thumbup:

  3. Jon Olds Forum Junkie

    Joined:
    Jan 28, 2004
    Likes Received:
    405
    Location:
    United Kingdom
    thanks, helpful stuff as I'm about to invest and there is a lot of hardware out there
    Jon

  4. Sirguydo

    Sirguydo Fastest milkman in the West Paid Member

    Joined:
    Nov 7, 2012
    Likes Received:
    1,188
    Location:
    Bolton
    I got one of these from costco and it seems to tick all the boxes for home or small workshop :thumbup:

    The inverter technology now means you get great power in a light weight box say compared to my old oil filled arc welder that's 3 phase and only slightly more powerful than the sip :o but duty cycles are less

  5. MUSHY 16V

    MUSHY 16V Moderator Moderator

    Joined:
    Jan 26, 2008
    Likes Received:
    793
    Location:
    aberdeen
    Aye it's not as easy as it looks
    I rest my torch hand against the bench/vice or the job if it don't get too hot lol

    I've not ued one but you get a thing that goes on one finger of the glove
    Called a tig finger that let's you rest it against the hot job without burning your hand

    It's feeding the wire I find hard
    So I tend to have a long bit of the filler rod sticking out to start with

    Took a good while to get that test piece done that good
    And I'm no where near as good as the welder
    He welds the cans in the engine overhead
    He's said I'd easy manage that but I think it would take me a while to get that good

  6. MUSHY 16V

    MUSHY 16V Moderator Moderator

    Joined:
    Jan 26, 2008
    Likes Received:
    793
    Location:
    aberdeen
    Aye Jon some good bits of kit out there for not much coin
    I was 200 for that dc tig welder on eBay it normally sells in the UK for over 500

    Come time I'll get a ac/dc one but this should do me a good few years

    Mike that looks good never seen that in the Costco up here
    Or I probably would of got it lol

  7. Trev16v

    Trev16v Paid Member Paid Member

    Joined:
    Oct 22, 2003
    Likes Received:
    450
    Location:
    Oxfordshireland
    Nice intro. I bought an R-tech AC/DC machine myself over three years ago and used it to build a manifold. Unfortunately since I've become a dad, it has remained unused since then! I really ought to power it up and get into the swing of it again. TIG welding is a beautiful process and it gets quite addictive.

  8. Sirguydo

    Sirguydo Fastest milkman in the West Paid Member

    Joined:
    Nov 7, 2012
    Likes Received:
    1,188
    Location:
    Bolton
    It's from costco online and includes delivery :thumbup: there's loads of stuff online that's not in the warehouse , just don't spend too much lol

  9. MUSHY 16V

    MUSHY 16V Moderator Moderator

    Joined:
    Jan 26, 2008
    Likes Received:
    793
    Location:
    aberdeen
    costco is fatal i only stay 2 minutes door to door from the one near me :thumbup:

  10. tones61

    tones61 Forum Member

    Joined:
    Dec 27, 2007
    Likes Received:
    12
    Location:
    ~ MOT TESTING ~ plymouth
  11. bazoldskoolmk2 Forum Member

    Joined:
    Dec 18, 2008
    Likes Received:
    8
    Location:
    fife
    a good point of note for anyone looking to do aluminium at some point is that frequency control is an essential parameter to be able to control. i bought what i thought was a realy good machine ony to discover later that i needed this. i can still manage to do ally but with variable results! wish i knew then what i know now.

    great info there mushy, think i need to try the larger ceramics, cheers for that.

    Baz

  12. Jon Olds Forum Junkie

    Joined:
    Jan 28, 2004
    Likes Received:
    405
    Location:
    United Kingdom
    frequency control, good tip, thanks
    Jon

  13. bazoldskoolmk2 Forum Member

    Joined:
    Dec 18, 2008
    Likes Received:
    8
    Location:
    fife
    fronius is the rolls royce from what i have heard although as usual there wil be close similar items depending on your requirements

    Baz

    Last edited: May 16, 2015
  14. 1.8T_mk2

    1.8T_mk2 Paid Member Paid Member

    Joined:
    May 12, 2005
    Likes Received:
    103
    Location:
    Hertfordshire

    I bought 2 of these! They are awesome!! You can prop right next to the arc if you want and all you can feel is a slight change in temp. Defo recommend getting one! There is a new XL version available as well now so you can get two fingers in it. :o The guy that sells them does some excellent videos on youtube as well. Just search for Weldingtipsandtricks.com.

    Is one probably made the most difference to my welding...

    https://www.youtube.com/watch?v=UNAAhwieNhU


    Neil

    Sirguydo likes this.
  15. Dave

    Dave Pedantic Old Fart Paid Member

    Joined:
    Feb 26, 2007
    Likes Received:
    420
    Location:
    Sligo, Eire
    sSon.
    Like all the classy BOC stuff!
    Only the best is good enough.
    sDa.

    Last edited: May 22, 2015
    MUSHY 16V likes this.
  16. MUSHY 16V

    MUSHY 16V Moderator Moderator

    Joined:
    Jan 26, 2008
    Likes Received:
    793
    Location:
    aberdeen
    aye sDa it's good stuff

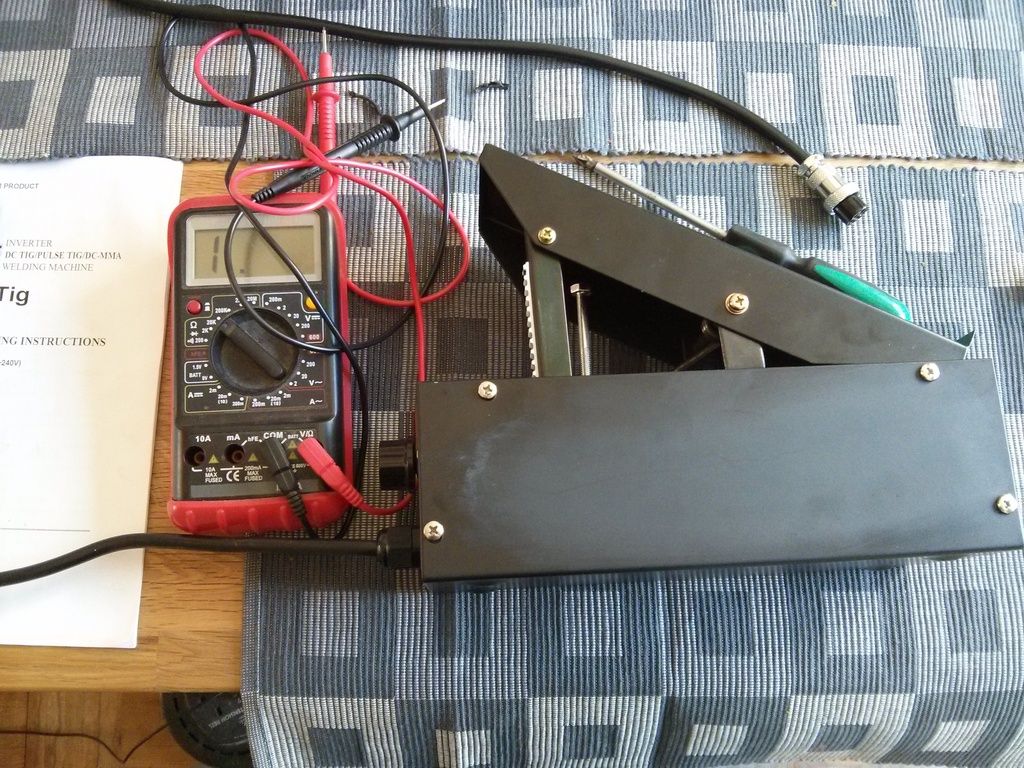

    this is the STAHLWERK foot pedal i got
    a lot sturdier than the one for my welder and only 1/3 the cost

    first problem the plug was too small
    so a new 7 pin plug was ordered of ebay
    took a while to find one as most were in the usa
    but found that a 7 pin deck plug was the same as i needed

    second was it needed rewiring

    one of the jumper wires was removed from the max starting pot to the pedal pot and one was moved on the pedal pot to reverse the why it worked


    [​IMG]

    [​IMG]

    [​IMG]

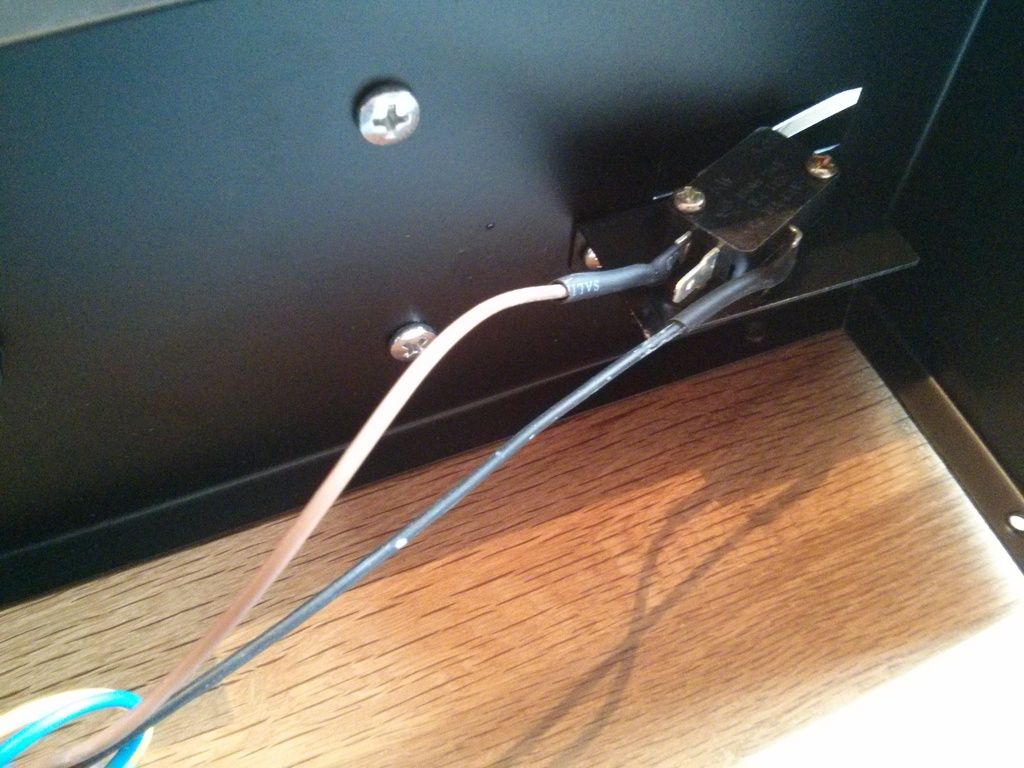

    here you can see the black jumper wire removed
    and the blue wire moved from the outside to the middle

    [​IMG]

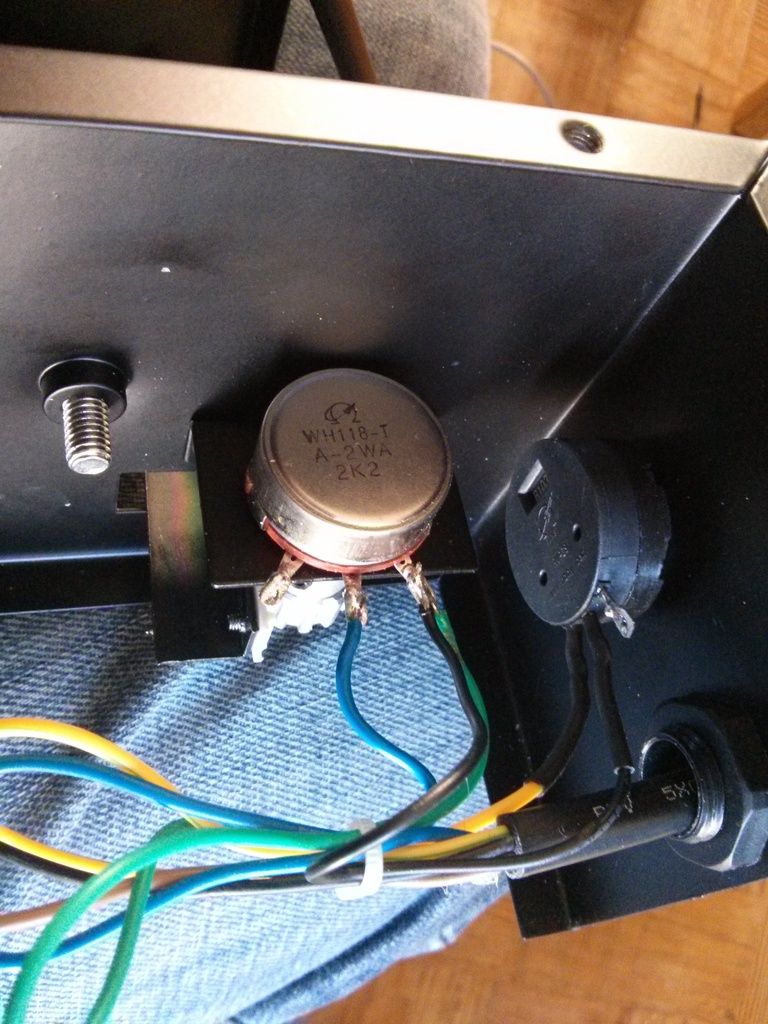

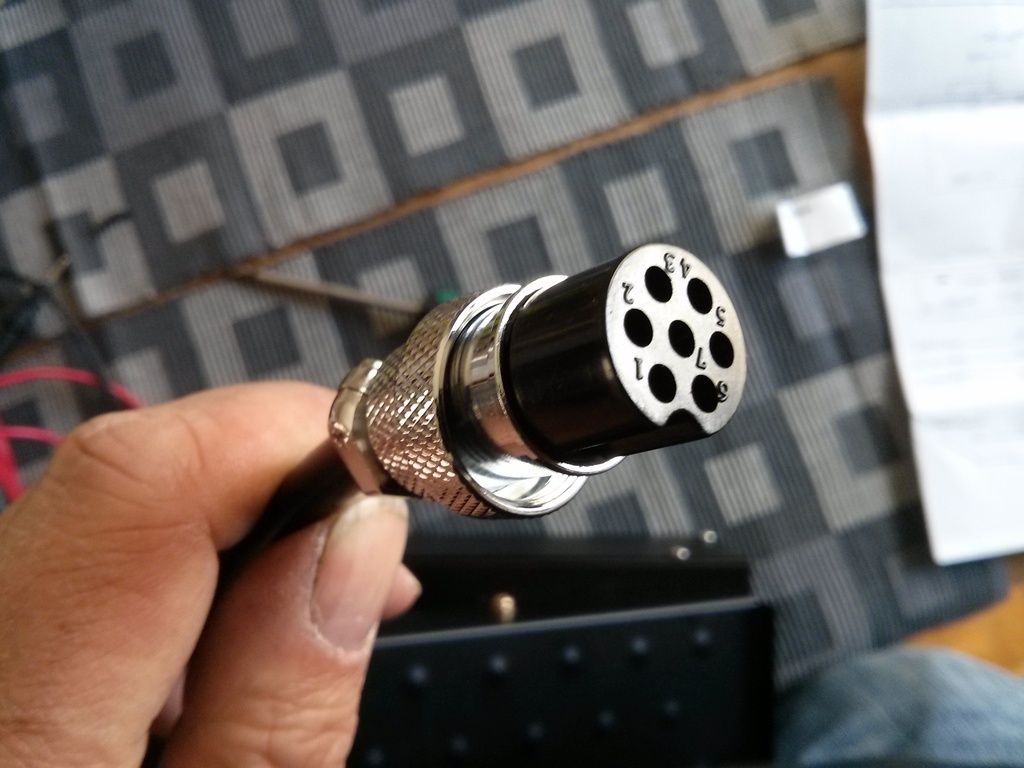

    the plug itself pin 1 and 2 are the switch the brown and black in my case
    pin 3 is the blue wire and 4 is the green wire both from the welding current pot
    pin 5 is the yellow wire for the max start pot
    6 and 7 are bridged


    [​IMG]

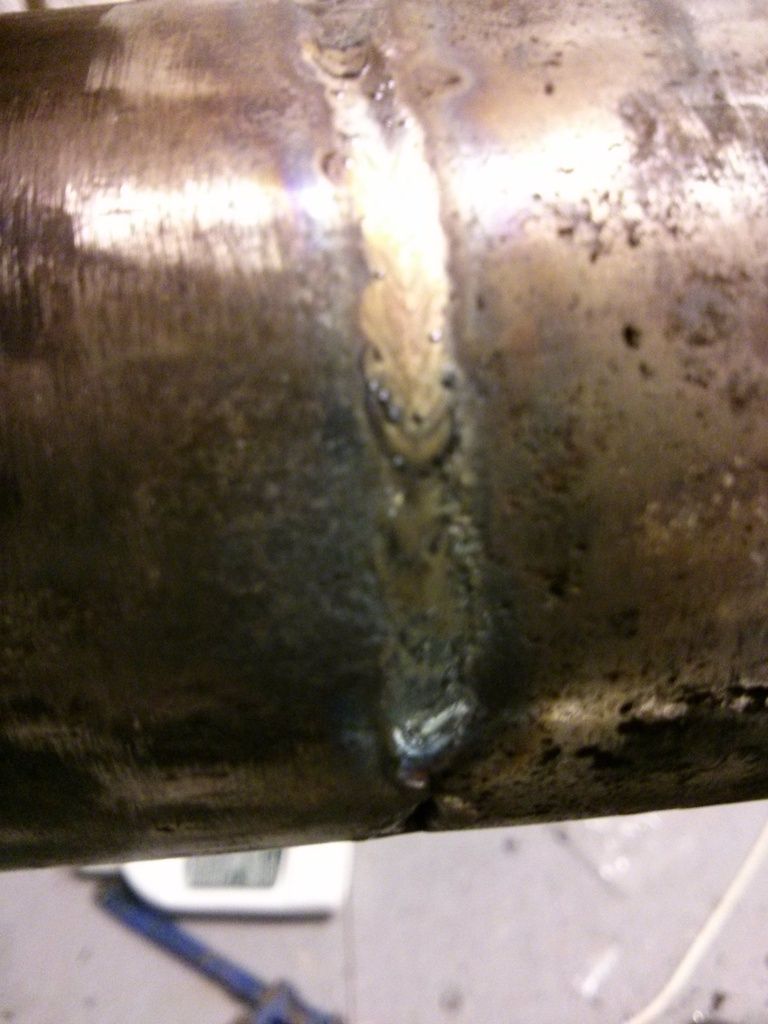

    had no stainless filler wire

    but butt welded this pipe to the back of the cat to extend it to meet the r32 exhaust i have
    got most of the way round but need some filler wire to finish it off

    Last edited: May 31, 2015
    Sirguydo likes this.
  17. samfish

    samfish Forum Member

    Joined:
    Jul 30, 2009
    Likes Received:
    40
    My work is mainly TIG welding.
    A foot pedal is a must if you want full control.

    A decent welding table changed my life, without exaggeration:


    HPR and MUSHY 16V like this.
  18. MUSHY 16V

    MUSHY 16V Moderator Moderator

    Joined:
    Jan 26, 2008
    Likes Received:
    793
    Location:
    aberdeen
    Wow Sam that looks a awesome welding table

    any pictures of the things you make
    if you can that is

  19. samfish

    samfish Forum Member

    Joined:
    Jul 30, 2009
    Likes Received:
    40
    Thanks. It's worth every penny and has paid for itself many times over.
    Artists outsource their metalwork to me.

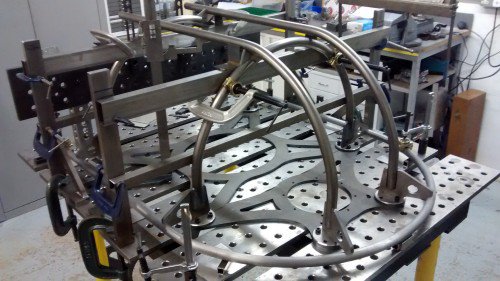

    This is part of a structure currently in the Tate Britain:

    This shows how beneficial it can be. I had to make four of these, so it was worth spending time making this JIG:

    I make all kinds of odd and interesting stuff - Sometimes simple frames and panels, sometimes complicated kinetic stuff. Mostly self-taught - So if I can do it, anyone can :)

    G60Dub and Nige like this.
  20. MUSHY 16V

    MUSHY 16V Moderator Moderator

    Joined:
    Jan 26, 2008
    Likes Received:
    793
    Location:
    aberdeen
    sounds very interesting Sam nice to have a job that could have something different every day

    samfish likes this.
