What's this plug?

Discussion in 'Electrical' started by PhilRyder, Nov 27, 2021.

  1. PhilRyder

    PhilRyder Paid Member Paid Member

    Joined:
    Oct 17, 2020
    Likes Received:
    283
    Location:
    Surrey

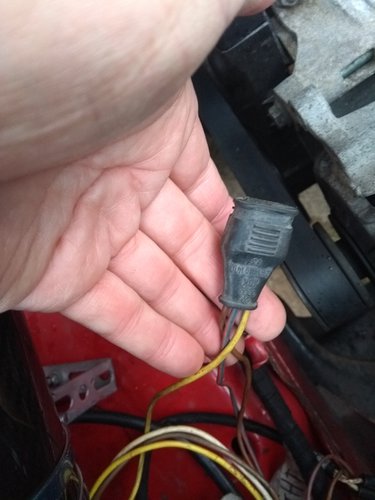

    Part of the Mk2 headlight loom.

  2. AndyBa Forum Member

    Joined:
    Nov 19, 2007
    Likes Received:
    8
    Location:
    Sheffield
    Assume it's on a MK2 by the PAS pump?
    Looks like it is the dim/dip wiring that should be disconnected due to issues it can cause.

  3. PhilRyder

    PhilRyder Paid Member Paid Member

    Joined:
    Oct 17, 2020
    Likes Received:
    283
    Location:
    Surrey
    There is one each side and part of the lights loom so I don't think part of the packet of polos capacitor thing.

  4. dodgy

    dodgy Paid Member Paid Member

    Joined:
    May 24, 2016
    Likes Received:
    546
    Is it to do with headlight adjustment mechanism motors? Got it on mine, think both sides.
    Not the demonic polo tube, that's a different connector.

  5. PhilRyder

    PhilRyder Paid Member Paid Member

    Joined:
    Oct 17, 2020
    Likes Received:
    283
    Location:
    Surrey
    That is what I was thinking. We need to tidy the headlight loom big time and if we can get rid of unnecessary bits all the better.
    I wonder where it goes back to? Fusebox presumably.

  6. dodgy

    dodgy Paid Member Paid Member

    Joined:
    May 24, 2016
    Likes Received:
    546
    Not sure Phil, presumably, or to a plug for a switch somewhere inside?

  7. NateS2

    NateS2 Paid Member Paid Member

    Joined:
    May 1, 2019
    Likes Received:
    230
    Red??? Connector in your footwell. Will just hanging there loose

  8. dodgy

    dodgy Paid Member Paid Member

    Joined:
    May 24, 2016
    Likes Received:
    546
  9. PhilRyder

    PhilRyder Paid Member Paid Member

    Joined:
    Oct 17, 2020
    Likes Received:
    283
    Location:
    Surrey
    dodgy likes this.
  10. NateS2

    NateS2 Paid Member Paid Member

    Joined:
    May 1, 2019
    Likes Received:
    230
    ^^ Yes sorry it is the headlight adjuster, you're right @dodgy

    dodgy likes this.
  11. dodgy

    dodgy Paid Member Paid Member

    Joined:
    May 24, 2016
    Likes Received:
    546
    It must be a significant alignment of planets if I've got something right @NateS2 :lol:

  12. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,597
    Location:
    Bracknell
    yup, the plug on the inside is either a 2 pin white spade plug or on runout spec its a 2 pin red timer plug. either way it has 2x red/blue and 2x brown wires that go off to either side, the yellow wire taps to the back of the headlight H4 plug

    PhilRyder likes this.
  13. Zender Z20

    Zender Z20 Paid Member Paid Member

    Joined:
    Nov 28, 2021
    Likes Received:
    67
    Location:
    1983
    So, as the seller in one of those eBay links claims... it's plug'n'play if you've the bits pictured and correct existing wiring?

  14. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,597
    Location:
    Bracknell
    Most euro MK2 have the engine bay section from factory, only the early ones don't. To get it to work you need the dash switch and the short section of loom between it and the fusebox/lighting loom plug mentioned. It's not too hard to get since in Germany it was required by law from around 90ish

    Zender Z20 likes this.
  15. Zender Z20

    Zender Z20 Paid Member Paid Member

    Joined:
    Nov 28, 2021
    Likes Received:
    67
    Location:
    1983
    Cheers - Definitely have the motors and a switch some where, though don't think there's the short loom with them. Looks straight forward enough to possibly fabricate, might even have a stab at it some day.

  16. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,597
    Location:
    Bracknell
    The hardest bit is the plug, can get away with mini spades short term. Lots of others in the VW range use the same switch plugs, MK1 golf, Rocco, corrado think T4 usually see a couple on eBay.de

    Zender Z20 likes this.
