Cambelt tensioner stud - stripped head

Discussion in 'Engines' started by R1ch, Apr 21, 2022.

  1. R1ch Forum Member

    Joined:
    Jan 15, 2014
    Likes Received:
    7
    Location:
    West Sussex
    What is the best way to fix this without replacing the head?

    I was adjusting the cambelt tension as its been whining like a supercharger since I changed the belt. I was careful not to overtighten it - I used the Haynes spec of 33 ft-lb, but it wouldn't tension. Eventually just spun and as you can see has stripped the thread inside the cylinder head [:|]:cry:[:x]

    IMG-4013.jpg IMG-4012.jpg
    Thanks

  2. davidut5 Forum Member

    Joined:
    Oct 14, 2018
    Likes Received:
    71
    Location:
    Romania
    Helicoil or v-coil should do the job. Just get correct thread pitch and size.


    Attached Files:

  3. R1ch Forum Member

    Joined:
    Jan 15, 2014
    Likes Received:
    7
    Location:
    West Sussex
    Thanks David - have been looking into helicoil this evening - I think I will give this a go

  4. Tristan

    Tristan Paid Member Paid Member

    Joined:
    Apr 25, 2006
    Likes Received:
    1,205
    Location:
    Southern IRELAND
    I think VW have a stepped stud for the newer diesels, that might work. ie M10 into the head and m8 for the tensioner.

    https://www.ebay.co.uk/itm/403001861568

    Like that.

    Obviously you still need to drill and tap the head.

  5. R1ch Forum Member

    Joined:
    Jan 15, 2014
    Likes Received:
    7
    Location:
    West Sussex
    The stud is already M10. Looks like the Helicoil will be okay, but not much space to get a drill into the right place with the engine in [:[]

  6. PhilRyder

    PhilRyder Paid Member Paid Member

    Joined:
    Oct 17, 2020
    Likes Received:
    774
    Location:
    Surrey
    If I were a betting man I would suggest that’s been helicoiled previously.

    daNpy likes this.
  7. Tristan

    Tristan Paid Member Paid Member

    Joined:
    Apr 25, 2006
    Likes Received:
    1,205
    Location:
    Southern IRELAND
    You're right, my mistake, they are m10.

  8. oldnick

    oldnick Paid Member Paid Member

    Joined:
    Apr 27, 2009
    Likes Received:
    86
    Location:
    Farnsfield, Notts
    Yeah, I've not seen original metal come out like a spring before :(
    Going to be fun getting the hole welded to then be drilled (square) and tapped in situ...
    Failing that is it possible to helicoil to the size above the one you need, then fit the correct helicoil into the first one? [:-B] Sounds dodgy (with a small d)!

    PhilRyder likes this.
  9. PhilRyder

    PhilRyder Paid Member Paid Member

    Joined:
    Oct 17, 2020
    Likes Received:
    774
    Location:
    Surrey
    Or…. Helicoil to the next available size and then get a stepped stud as mention by @Tristan ?

  10. Adamss24 Forum Member

    Joined:
    Jun 21, 2021
    Likes Received:
    50
    Helicoil will work well, if possible jack the engine as much as possible or get a right angle drill to drill the larger hole...rest is easy, tap, insert and drive the new helicoil and insert the stud as per original...

  11. Adamss24 Forum Member

    Joined:
    Jun 21, 2021
    Likes Received:
    50
    Its common if its been overtightened before...

  12. davidut5 Forum Member

    Joined:
    Oct 14, 2018
    Likes Received:
    71
    Location:
    Romania
    It is possible the helicoil tap to go right in, without drilling first.

  13. PhilRyder

    PhilRyder Paid Member Paid Member

    Joined:
    Oct 17, 2020
    Likes Received:
    774
    Location:
    Surrey

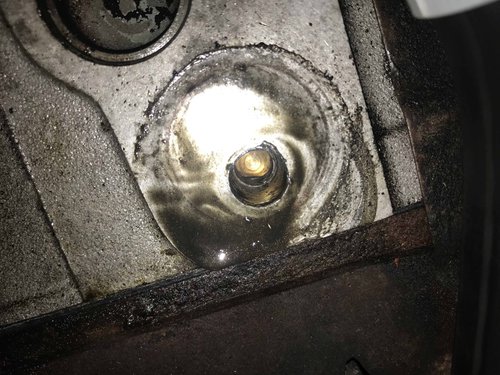

    It appears from your picture that there is no thread in the hole. A helicoil needs a thread to turn into so you would have to re-thread the hole first. This would mean making the hole one size larger hence the stepped stud. Or…. Re-thread the hole and just use a stepped stud and then no need for helicoil. Clear as mud?

  14. PhilRyder

    PhilRyder Paid Member Paid Member

    Joined:
    Oct 17, 2020
    Likes Received:
    774
    Location:
    Surrey
    On even closer look at your picture it seems the helicoil was glued in with chemical metal. That was never going to last :(

  15. davidut5 Forum Member

    Joined:
    Oct 14, 2018
    Likes Received:
    71
    Location:
    Romania

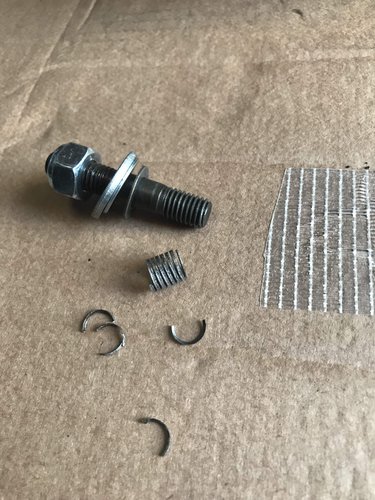

    Thats not a helicoil, thats how a stripped thread in aluminum looks like, threads are pulled right off.
    If what is left is a hole 10.5-11mm no need to drill for m12.


    Attached Files:

  16. PhilRyder

    PhilRyder Paid Member Paid Member

    Joined:
    Oct 17, 2020
    Likes Received:
    774
    Location:
    Surrey
    Just tap existing hole for an m12?

  17. davidut5 Forum Member

    Joined:
    Oct 14, 2018
    Likes Received:
    71
    Location:
    Romania
    If he gets m10 helicoil it needs m12 threaded hole. Of coarse thread pitch i believe is finer on the stud, needs checking, and buy apropiate helicoil kit. Kit has drill bit, special tap and the helicoil itself.
    I once helicoiled stripped m6 thread, tapping with a regular m8 tap, but the bolt was very loose. So buy as a kit only.

    PhilRyder likes this.
  18. PhilRyder

    PhilRyder Paid Member Paid Member

    Joined:
    Oct 17, 2020
    Likes Received:
    774
    Location:
    Surrey
    So really he might as well get a stepped stud and not worry about the helicoil at all. Must be better :thumbup:

  19. R1ch Forum Member

    Joined:
    Jan 15, 2014
    Likes Received:
    7
    Location:
    West Sussex

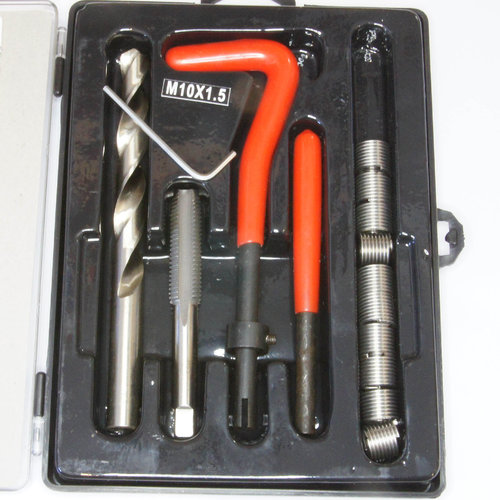

    Thanks everyone. Its not been helicoiled before - the material that came out is non-magnetic. A normal M10 helicoil should work - i have a kit now and will be trying this in the next few days. Space is tight for drilling but should be okay. The head is pretty soft - i can almost get the helicoil tap to go in without drilling, but the current hole is a little small so will using the drill bit in the kit first just to make sure I get it 100% right. The stud thread is M10 x 1.5 and I have the helicoil kit to suit this.
    Just need to work out what torque I should put the stud in at. The tensioner bolt is 33 ft-lb, so it needs to be higher than this, but obviously I don't want a repeat of this problem. Should i put some thread lock on the stud? (i know its often recommended to put thread lock on the helicoil).

  20. davidut5 Forum Member

    Joined:
    Oct 14, 2018
    Likes Received:
    71
    Location:
    Romania
    Not really needed to torque down the stud, maybe hand tight and then some, until it bottoms out.
    I personally do not use thread lock on timing stuff, unless stated otherwise in the manual.
    M10 should handle 45nm easily, maybe it was over torqued before.

    Adamss24 likes this.
