Curved Airhons for DTH 16v installations-Demo

Discussion in 'Badger5' started by badger5, Jun 17, 2010.

  1. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos

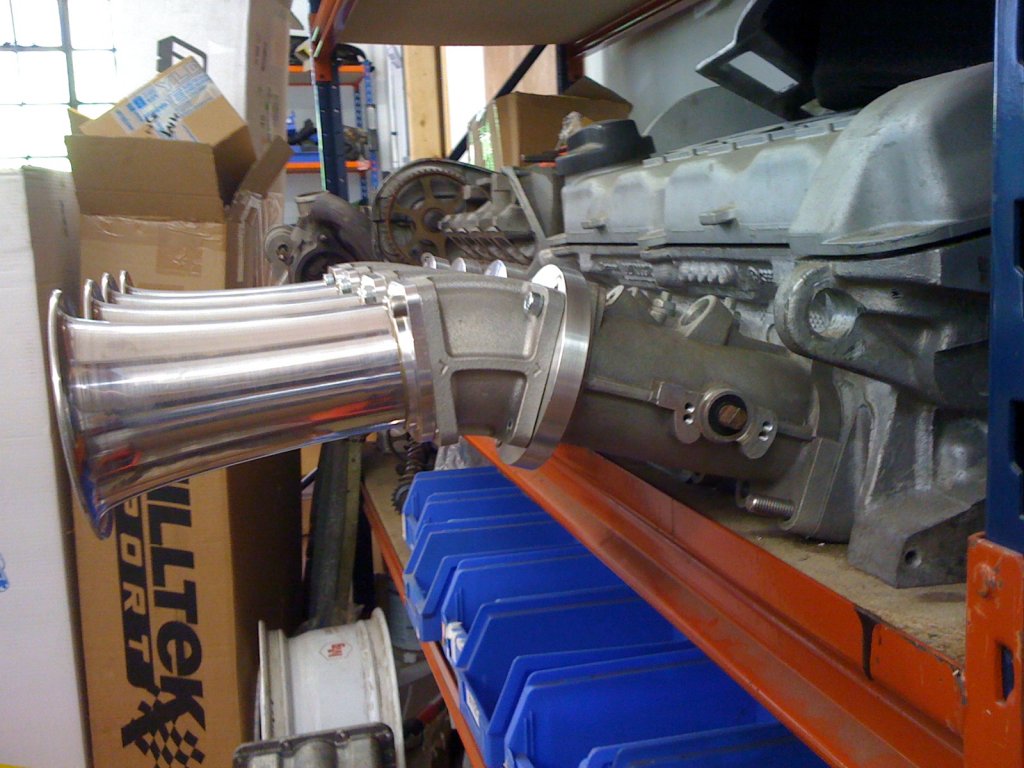

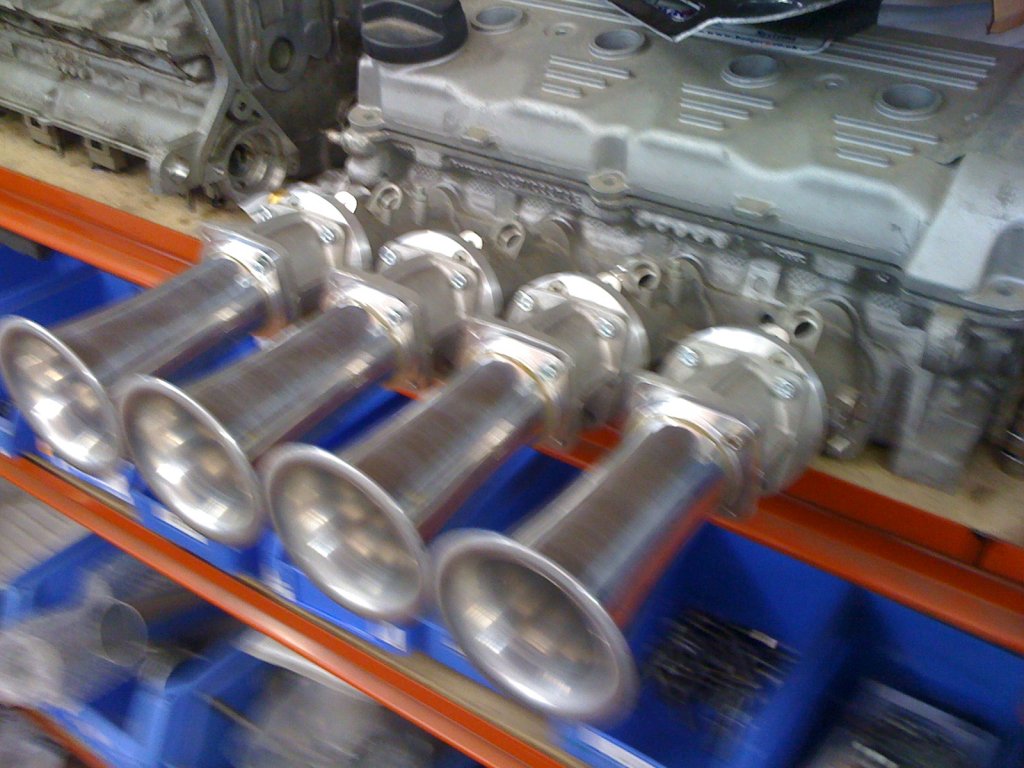

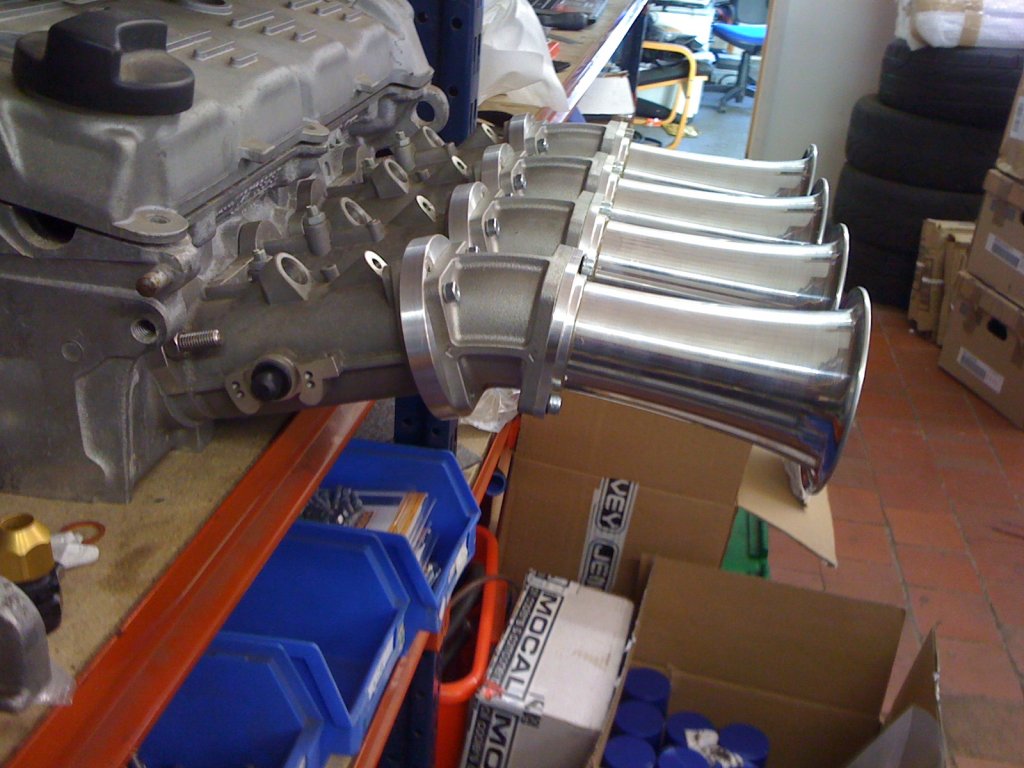

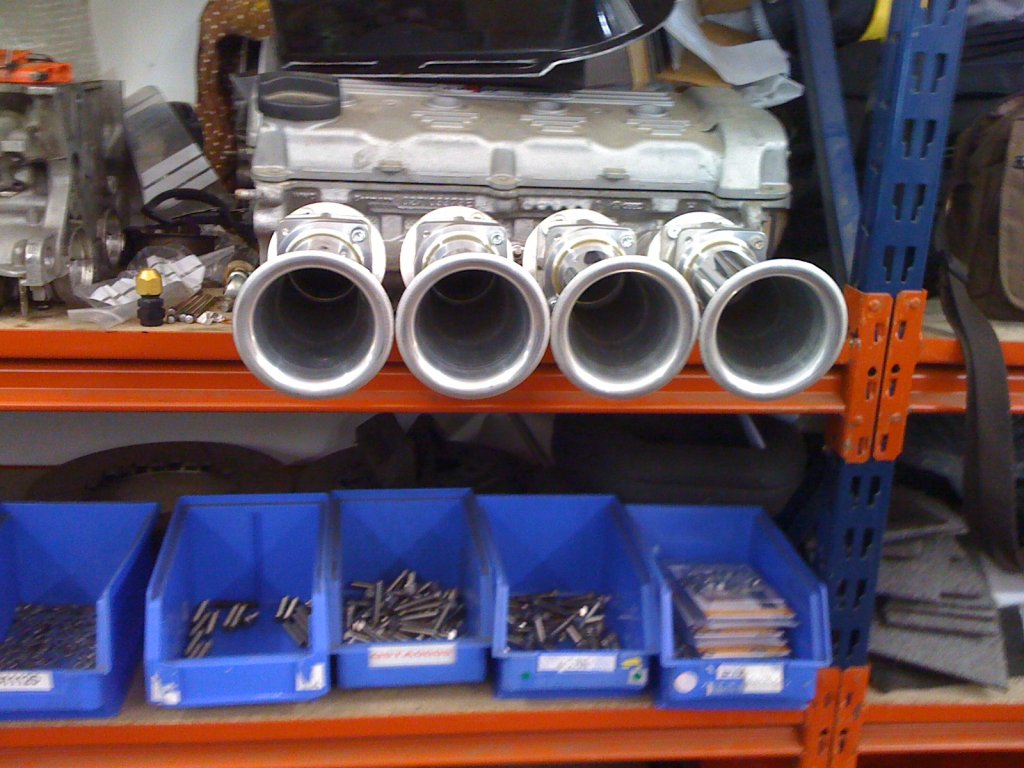

    Here's some prototype adaptors to facilitate curved intake airhorns for the 16v DTH bodies

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  2. RobT

    RobT Forum Junkie

    Joined:
    Oct 24, 2003
    Likes Received:
    948
    Location:
    Cheshire
    very nice, but I have a feeling that more bend is going to be needed....to get under the slam panel if possible - 45-60 degrees was my estimate last time I looked

    the top of the cam cover is almost level with the engine in the car whereas its sloping down in your pics above

    but its definately a step in the right direction

  3. Ben S

    Ben S Forum Junkie

    Joined:
    Aug 1, 2005
    Likes Received:
    345
    Location:
    Essex
    would bolting another row of the bend sections on address that issue Rob?

  4. RobT

    RobT Forum Junkie

    Joined:
    Oct 24, 2003
    Likes Received:
    948
    Location:
    Cheshire
    yes it might - but I have a feeling that 45 degrees isn't quite enough - its been a while since I considered this myself - on an ibiza its more like 60 degrees

    the radius of the bend is also quite important since you dont want to push forwards too much before tapering down...

    its quite tricky

    if the inlets can be got under the slam panel, then a shortened rad gives a really nice space for a filter right behind the grill = lots of cold air = PHENOMENAL COSMIC POWER

    Last edited: Jun 17, 2010
  5. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    I dont have a car in to confirm... the mk2 I had in the other week with ABF engine, 22.5 degrees down bubble took the airhorns top closer to the radiator top, but not dipping below slam panel

    one thing to consider, which I have done on my ibiza is drop the cross member down, tipping the whole engines nose downward, which gains valuable space.

    when I am back at the workshop later, I will put a straight edge across the rocker cover so a gauge can be made of projected angles, which people can easily check against their own installations. (remembering these DTH bodies are in several car packages, and a one fits all solution wont likely be realistic.. mk1,2,3 golfs, ibiza's, ABF.9A, KR engines etc)

    maybe some cosmic power will be possible then :)

    Last edited: Jun 17, 2010
  6. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    150
    Location:
    M1 J40

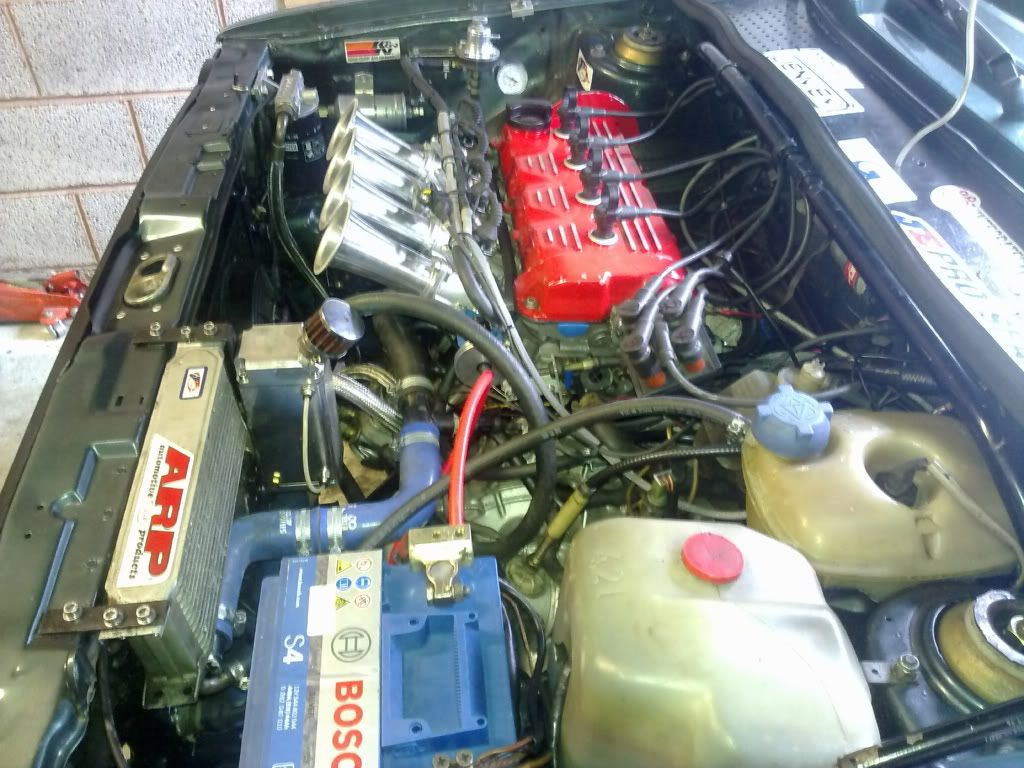

    Like This ? Think i will need bigger injectors if i get the correct angle. :thumbup:

    [​IMG]

    Last edited: Jun 17, 2010
  7. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    I'll take a picture of straight edge rule across rocker cover of the curved vs normal bolt on airhorns, so the difference is more comparible

    watch this space

  8. altern8 Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    1
    Location:
    Cocos (Keeling) Islands
    Look forward to the update, something might need to be done if using the standard rad too. I think Mr_hillclimber dropped his on the pannel I'll find the pic

  9. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    here ya go

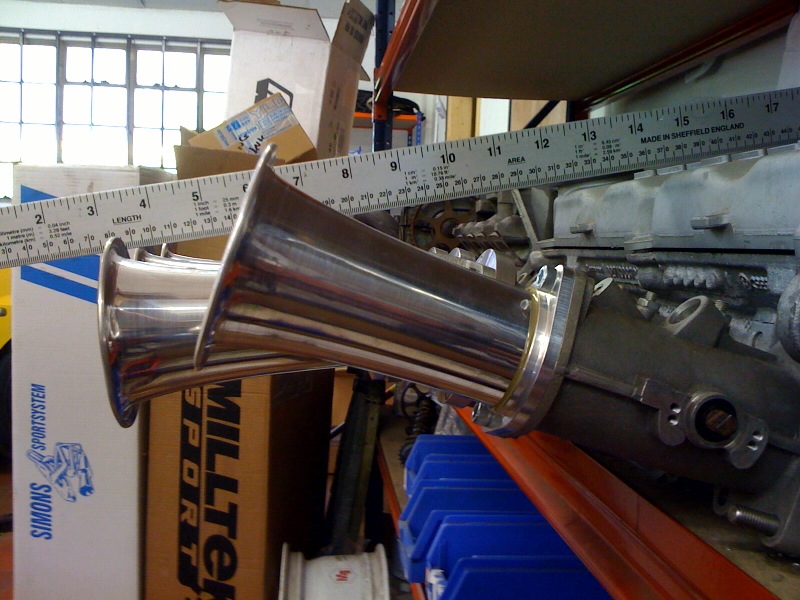

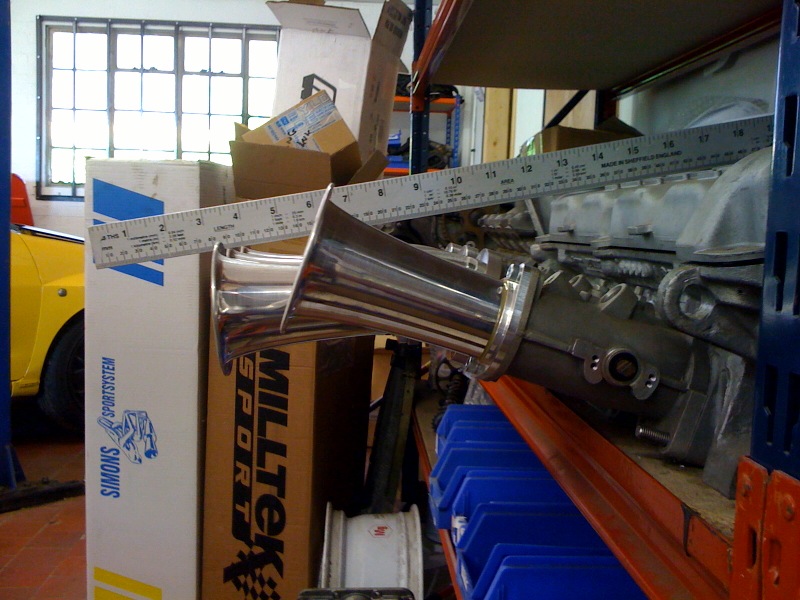

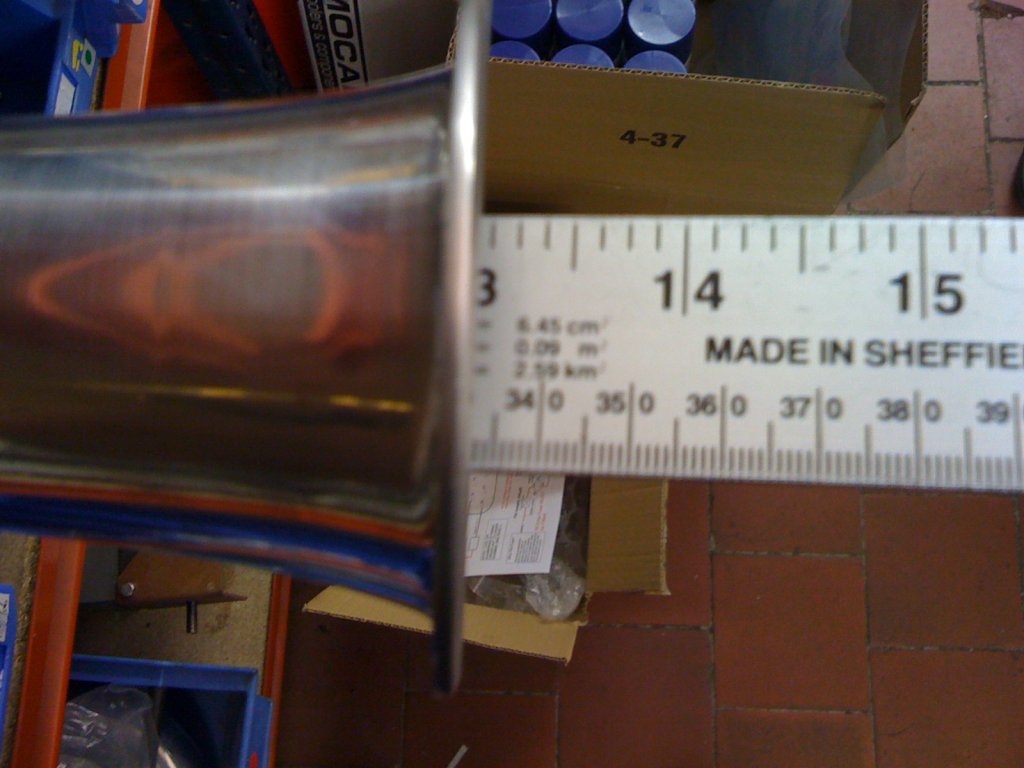

    curved compared to out of the box DTH bodies and straight 120mm airhorns
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

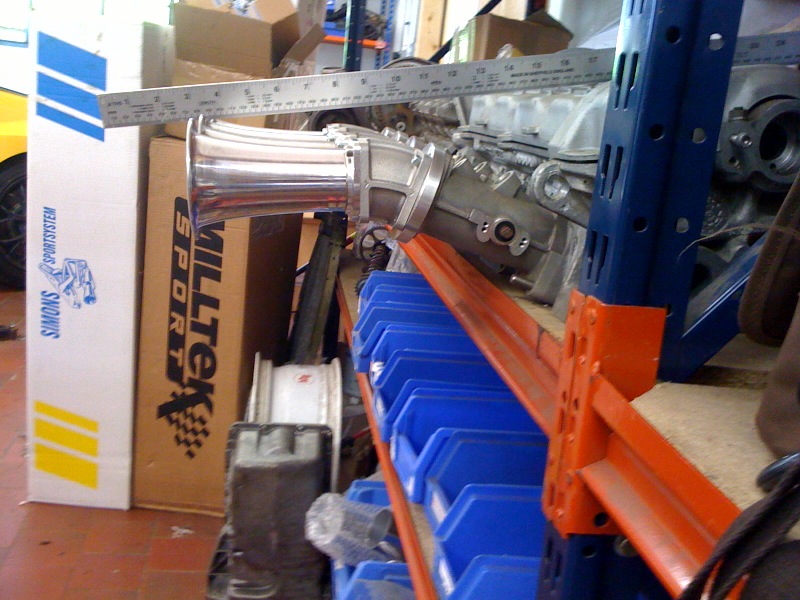

    Straight edge from top of rocker cover projecting fwd so you can check your own installs

    regards
    bill

  10. altern8 Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    1
    Location:
    Cocos (Keeling) Islands
    spot on, whats the lenght from the back of the rocker cover to the end of the trumpets, i'll go measure mine now

  11. altern8 Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    1
    Location:
    Cocos (Keeling) Islands

    I just checked mine and it looks like Robs right, a rough measurment would mean the trumpets would be about 1" above the slam pannel


    I'm using a KR miltec 4 branch on mine so it would push the manifold closer to the bulk head,
    I'm still running the abf alloy sump on mine so it would push that closer to the floor too wont it?

  12. mk1. Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    38
  13. Brian.G

    Brian.G Forum Member

    Joined:
    Feb 3, 2008
    Likes Received:
    445
    Location:
    West of Ireland
    You weren't long Rich;) So is this the problem solved so?

  14. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    *cough*
    there's a reason I used a ruler as a straight edge for the pictures
    ;)

  15. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    check what clearances you have.. there should be some clearance between mani and tunnel..
    and how the sump gets close to the floor escapes me??? eh?

  16. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos

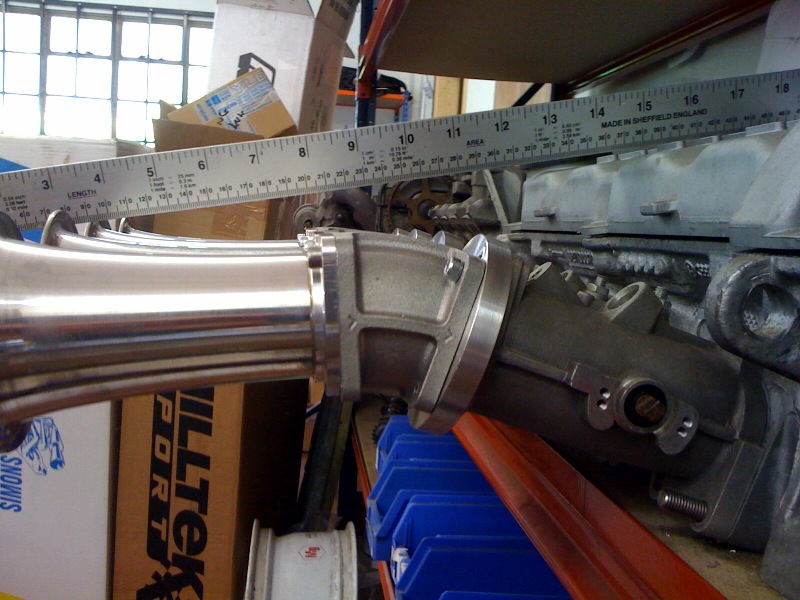

    This picture confirms how much lower these go with the 22.5 degree spacers fitted when compared to bolt on straight 120mm airhorns
    [​IMG]

  17. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    Spacer/Adaptors are 15 each
    Curved SF bodies I will do for CGTi folks for 22.50 each (which is 10% discounted)

    price plus vat & delivery...

    First batch coming off the CNC early this week.
    1st set going to essthree

    regards
    bill

    Last edited: Sep 16, 2012
  18. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    1st Batch of these Spacers to convert DCOE front to SF, curved are now ready and available for sale

    Essethree should receive his during this week.

    regards
    bill

  19. altern8 Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    1
    Location:
    Cocos (Keeling) Islands
    sweet look forward to his results

  20. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
